Home > Products > Desktop Power Adapter > 12 volt power adapters 12v 6a 110v to 220v plug adapter power supply

12 volt power adapters 12v 6a 110v to 220v plug adapter power supply

FOB Price

USD $6.2 - $7.3 / Piece

100 Pieces(Min.Order)

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	China	Brand Name:	HUA YI TENG	Model Number:	HYT******
Output Type:	DC	Connection:	Desktop

Description of 12 volt power adapters 12v 6a 110v to 220v plug adapter power supply

Technical Specification	Input Voltage	AC 100-240V
	Input Frequency	47Hz~63Hz
	Input Current	≤1.2A(Max) at AC 100V
	Dash Current	≤50A(AC Input Voltage 240V)
	Power Factor	≥0.5(AC Input Voltage 240V, Internal Resistance<0.1Ω)
	Efficiency	≥86% at rated voltage
	Output Voltage	12V±5%
	Output Rated Current	6A
	Rated Power	72W
	Ripple Noise	≤120mV
	Start Delay Time	≤3S(under the Iput-voltage of AC110V)
	Working Temperature	0℃ to 40℃
	Storage Temperature	-20℃ to 75℃
	Humidity	5%-95%(under the condition of non-concentrated)
	Hi-pot Test	AC 3000V(Min), 3S, leakage Current≤5mA
	Insulation Resistance	≥10MΩ (standard atmospheric pressure, humidity 90%, DC500V)
Certificate	CE, FCC, ROHS, SAA, CB, GS, KC
Warranty	2 years
Feature	IC Program Design with low power consumption
	100% aging test
	MTBF50,000 hours under the temperature of 25℃ with maximum load(according to the standard of MIL-HDBK-217)

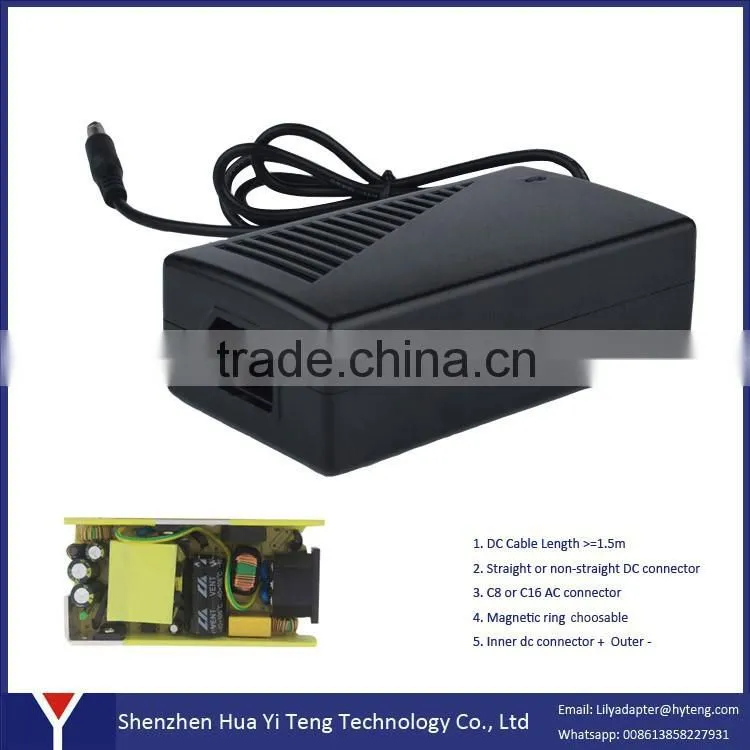

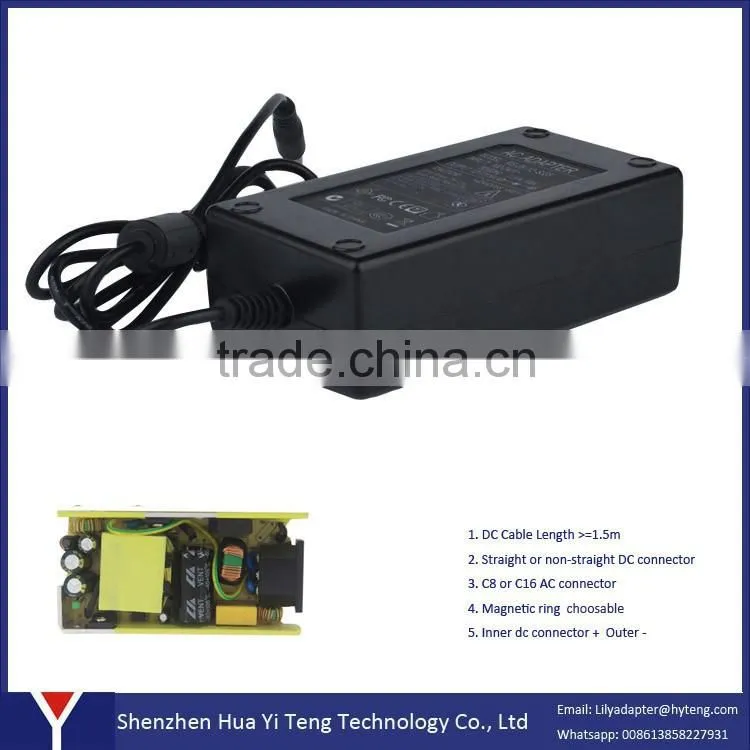

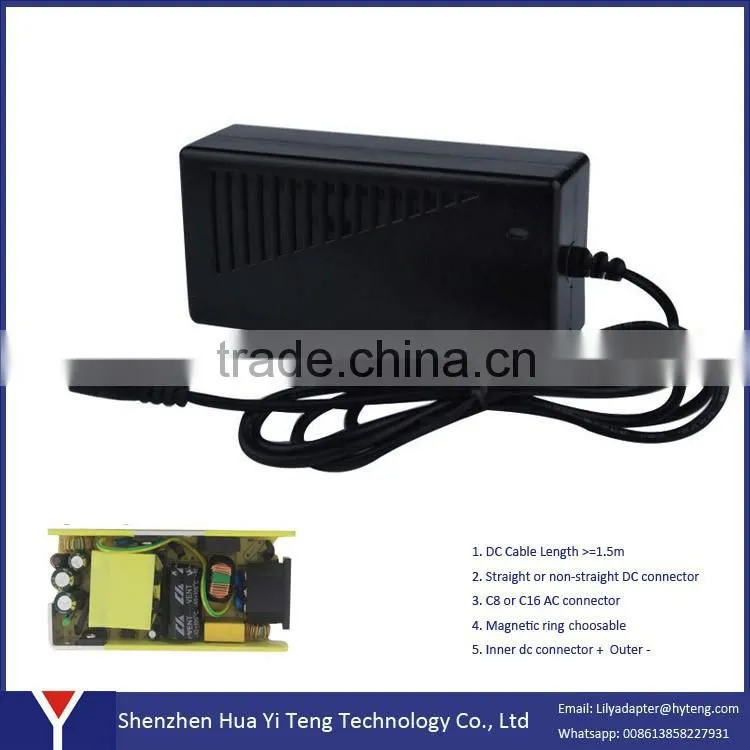

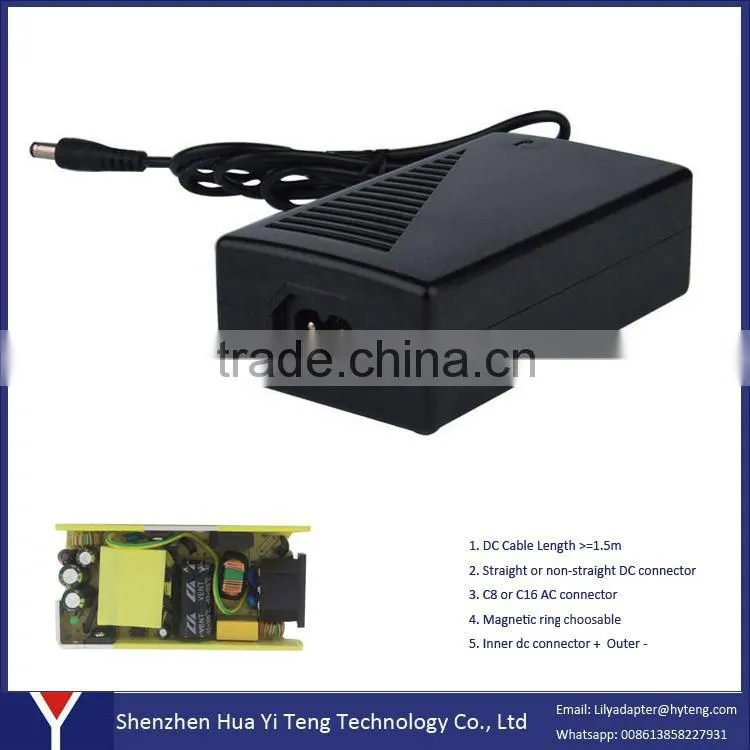

Detailed Pictures about 12 volt power adapters 12v 6a 110v to 220v plug adapter power supply
