cold storage for vegetables

Specifications

cold storage for vegetables
1. Suitable for cold storage and fresh-keeping
2. Around 0 degree workable
3. Material: steel

cold storage for vegetables







1. cold storage for vegetables Introduction:

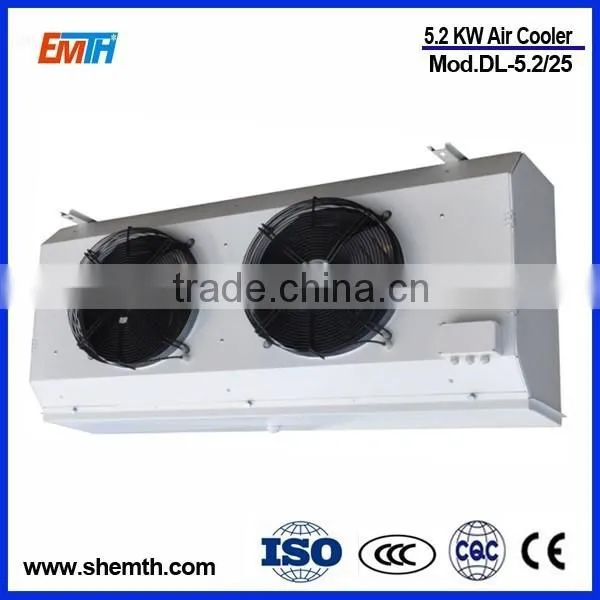

Model D Series Air cooler/Cooling Fan/Refrigerator Evaporator is a type of cooling equipment applied to vrious of refrigeratories like frozing, storing and freshing food. Model D series have the three types: DL, DD, DJ, which can meet different requirement on temperature. Model DL applies to 0 degree freshness storehouse. Model DD applies to -18 degree cold storage. Model DJ applies to -25 degree quick-frozen storage.



2. cold storage for vegetables Feature:



A. With reasonable structre, symmetrical forming frosting, highly-effective performance on heat transfer.



B. Assembled with high quality evaporator fan, to make sure the low noise, big air volume and stable operation.



C. All the air coolers are tested under 2.5MP pressure, so to make sure they are in high air tightness.



 3.  cold storage for vegetables Tech. data:



Model	Ref. capacity (kw)	Cooling area (m²)	Space of fins	Fan						Defrost heater
				Qty	Dia.(mm)	Air volume(m3)	Pessure(pa)	Power (nxW)	Power supply	Coil (kw)	Catchment (kw)	Power supply
DL-2.1/10	2.1	10	4.5	1	300	1700	98	90	220V/380V 50Hz 1PH/3PH	0.6	0.3	220V 50HZ 1PH
DL-3.1/15	3.1	15		2	300	2x1700	98	2x90		0.9	0.6
DL-4.2/20	4.2	20		2	300	2x1700	98	2x90		0.9	0.6
DL-5.2/25	5.2	25		2	350	2x2200	98	2x140	380V 50HZ 3PH	1.2	0.6
DL-8.2/40	8.2	40		2	400	2x3400	118	2x180		1.5	0.6
DL-11.5/55	11.5	55		2	400	2x3400	118	2x180		2.1	0.6
DL-16.7/80	16.7	80		2	500	2x6000	167	2x550		3.0	0.6
DL-22.0/105	22.0	105		2	500	2x6000	167	2x550		4.2	0.6
DL-25.8/125	25.8	125		3	500	3x6000	167	3x550		4.8	0.8
DL-35.6/160	33.6	160		3	500	3x6000	167	3x550		6.0	0.8
DL-38.7/185	38.7	185		4	500	4x6000	167	4x550		7.5	1
DL-44.0/210	44.0	210		4	500	4x6000	167	4x550		8.0	1
DL-52.9/260	52.9	260		2	600	2x10000	200	2x1100		10.0	2
DL-67.2/330	67.2	330		3	600	3x10000	200	3x1100		12.0	2
DL-83.4/410	83.4	410		3	600	3x10000	200	3x1100		14.0	2.6











4. cold storage for vegetables Naming rule:





















5. cold storage for vegetables Workshop:







6. Exhibition in Germany,Beijing 2014:















7. Company Information:







Shanghai EMTH Import & Export Co., Ltd., belongs to Zhejiang RUIXUE Refrigeration Equipment Technology Co., Ltd. located in Shengzhou, Zhejiang province. We are specialized in providing air coolers/evaporators, air cooled condensers, condensing units to people who are interested in them. Besides, mushroom is our another product, which mainly includes the Pleurotus Eryngii and seafood mushroom. We produce both the refrigeration equipment and mushroom in large scale.















With professional technical support, progressive production equipment, together with honesty and concentration, both the refrigeration equipment and mushroom are being exported to countries like the United States, Canada, Germany, middle-east, etc.















Thanks to the great support and positive feedback from customers, we EMTH has win high reputation from our existing customers. All of these will be a greatest inspiration for us to provide better service and quality products to people who needs.















We are sure EMTH will provide best solution for you.







8.Certificates:









9. FAQ:







Q1: Are you a factory or a trading company?







A1: We are a factory















Q2: Where is your factory located?







A2: Our factory is located in Shengzhou city, Zhejiang province, you can go there by plane to Hangzhou international airport, it is about 100km from airport to our factory.















Q3: Is a sample available?







A3: Yes, but the sample will be at your charge.















Q4: What is the main market for your products?







A4: Our main market is in Middle East, South America, Europe and USA.















Q5: What is your warranty?







A5: We can assure you one year against manufacturing defect.















Welcome to contact us for more details!
