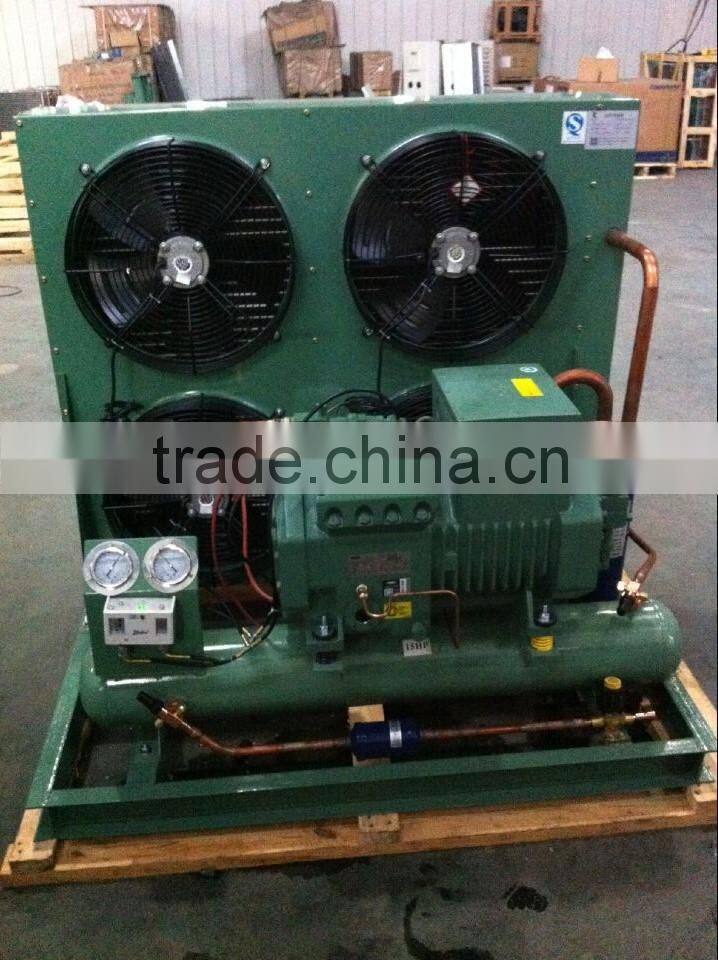

9HP Semi-hermetic Meat Refrigeration Equipment Made by RUIXUE
Specifications
meat refrigeration equipment1. MOQ: 1SET
2. Temperature: high and middle
3. Brand name: BITZER
4. Size: 1070*800*1100
Refrigeration equipment consists of compressor, condenser, pressure control, etc. We use the Bitzer brand compressor and other brand spare parts, so to make sure the whole system is in excellent performance.
2. meat refrigeration equipment Specification:
| Model | Nominal Horse power | Nominal Ref. Capacity | Compressor power | Condenser | In and out of the tube diameter | |||
| Heat exchange area | Total volume air | Motor power | Air suction | Outlet pipe | ||||
| HP | R22(W) | KW | m² | m³/h | nxW | mm | mm | |
| 2HC2.2/FH18H | 2 | 3380 | 1.62 | 18 | 3400 | 1x180 | 16 | 10 |
| 2FC3.2/FH28H | 3 | 4820 | 2.31 | 28 | 4400 | 2x140 | 16 | 10 |
| 2DC3.2/FH33H | 3 | 6780 | 2.98 | 33 | 4400 | 2x140 | 22 | 12 |
| 2CC4.2/FH41H | 4 | 8350 | 3.67 | 41 | 6800 | 2x180 | 22 | 12 |
| 4FC5.2/FH50H | 5 | 9640 | 4.12 | 50 | 6800 | 2x180 | 22 | 12 |
| 4EC6.2/FH60H | 6 | 11850 | 5.12 | 60 | 6800 | 2x180 | 28 | 12 |
| 4DC7.2/FH72H | 7 | 14480 | 6.14 | 72 | 8800 | 4x140 | 28 | 16 |
| 4CC9.2/FH80H | 9 | 17500 | 7.50 | 80 | 13600 | 4x180 | 28 | 16 |
| 4VCS10.2/FH100H | 10 | 19200 | 7.43 | 100 | 13600 | 4x180 | 28 | 16 |
| 4TCS12.2/FH120H | 12 | 23150 | 9.13 | 120 | 13600 | 4x180 | 35 | 16 |
| 4PCS15.2/FH140H | 15 | 27700 | 10.45 | 140 | 19200 | 4x250 | 42 | 16 |
| 4NCS20.2/FH180H | 20 | 32150 | 12.60 | 180 | 19200 | 4x250 | 42 | 22 |
| 4J22.2/FV180H | 22 | 36200 | 13.90 | 180 | 21600 | 2x780 | 42 | 22 |
| 4H25.2/FV200H | 25 | 41950 | 16.10 | 200 | 21600 | 2x780 | 54 | 22 |
| 4G30.2/FV240H | 30 | 48100 | 19.04 | 250 | 26100 | 3x600 | 54 | 22 |
| 6H35.2/FV300H | 35 | 63000 | 24.20 | 300 | 32400 | 3x780 | 54 | 22 |
| 6G40.2/FV350H | 40 | 72200 | 28.60 | 350 | 36600 | 3x800 | 54 | 28 |
| 6F50.2/FV400H | 50 | 85700 | 35.50 | 400 | 36600 | 3x800 | 54 | 28 |
| 8GC60.2/FV450H | 60 | 111200 | 43.40 | 450 | 48800 | 4x800 | 76 | 35 |
| 8FC70.2/FW560H | 70 | 121200 | 53.90 | 560 | 73200 | 6x850 | 76 | 35 |
3. meat refrigeration equipment Workshop:
4.Exhibition in Germany,Beijing 2014:
5. Company Information:
Shanghai EMTH Import & Export Co., Ltd., belongs to Zhejiang RUIXUE Refrigeration Equipment Technology Co., Ltd. located in Shengzhou, Zhejiang province. We are specialized in providing air coolers/evaporators, air cooled condensers, condensing units to people who are interested in them. Besides, mushroom is our another product, which mainly includes the Pleurotus Eryngii and seafood mushroom. We produce both the refrigeration equipment and mushroom in large scale.
With professional technical support, progressive production equipment, together with honesty and concentration, both the refrigeration equipment and mushroom are being exported to countries like the United States, Canada, Germany, middle-east, etc.
Thanks to the great support and positive feedback from customers, we EMTH has win high reputation from our existing customers. All of these will be a greatest inspiration for us to provide better service and quality products to people who needs.
We are sure EMTH will provide best solution for you.
6. Certificates:

7. FAQ:
Q1: Are you a factory or a trading company?
A1: We are a factory
Q2: Where is your factory located?
A2: Our factory is located in Shengzhou city, Zhejiang province, you can go there by plane to Hangzhou international airport, it is about 100km from airport to our factory.
Q3: Is a sample available?
A3: Yes, but the sample will be at your charge.
Q4: What is the main market for your products?
A4: Our main market is in Middle East, South America, Europe and USA.
Q5: What is your warranty?
A5: We can assure you one year against manufacturing defect.
Welcome to contact us for more details!
