Home > Products > Multi-spindle woodworking CNC Router > 1325 multi fuction cnc machine price wood engraving machine with side drilling
1325 multi fuction cnc machine price wood engraving machine with side drilling
- 100 Set / Sets per Month
- Qigdao
- T/T
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | Shandong, China |
Brand Name: | hawk | Model Number: | XK45MT-3A | Voltage: | 220V/380V |
Power(W): | 18KW | Dimension(L*W*H): | 1300mm*2500*300mm | Weight: | 1700KGS |
Certification: | CE&CIQ | Warranty: | 1 year | After-sales Service Provided: | Overseas service center available |
Packaging Details
plywood case for router cnc
Product Description
Specifications
multi fuction router cnc cwood engraving machine1.4.5kw*3,180 angle to drill and engrave
2.DSP(NCSTUDIO optional)
3.CE,CIQ
1325 multi fuction cnc machine price wood engraving machine with side drilling
Features
Main technical parameteres
Machine model | XK1325ATC-0808 |
machine size | 1350*3320 mm |
Working area | 1300mm*2500*300mm |
Table surface | Vacuum table |
Grow weight | 1700KGS |
Net weight | 1500KGS |
Accuracy, mm | ±0.05mm |
Working speed | ≥25000mm/min |
Rapid travel rate | ≥60000mm/min |

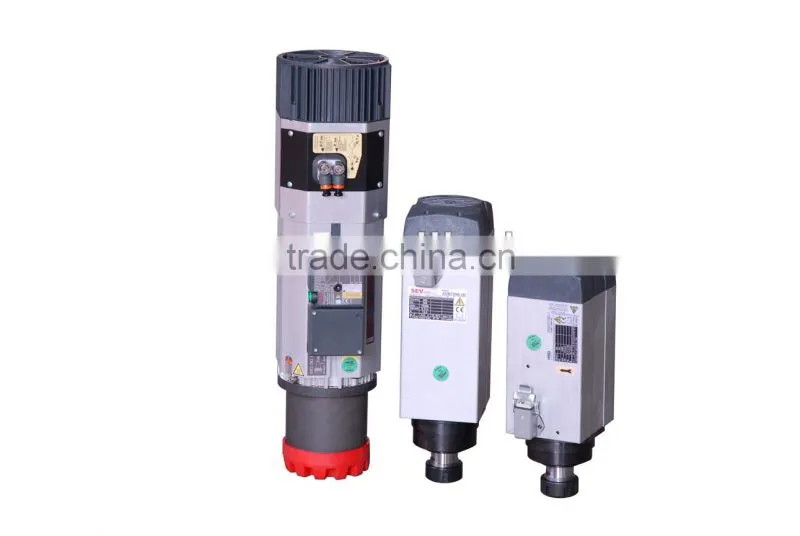

Spindle motor power | 9 KW HSD air cooling spindle( made in Italy) |
Spindle motor speed | 0-18000 rpm/min |

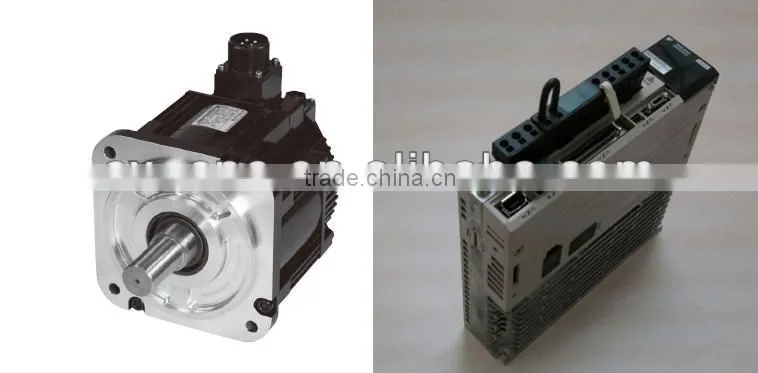

Drivers and motors, type/brand | Servo (Janpanese Yaskwa) |
Vacuum pump power/brand, kW/brand | Becker in G erman 4kw |
Transmission, x, y, z (rack gear or ball screw) | Kai bo Shandong China (rack) TBI in Taiwan ball screw |

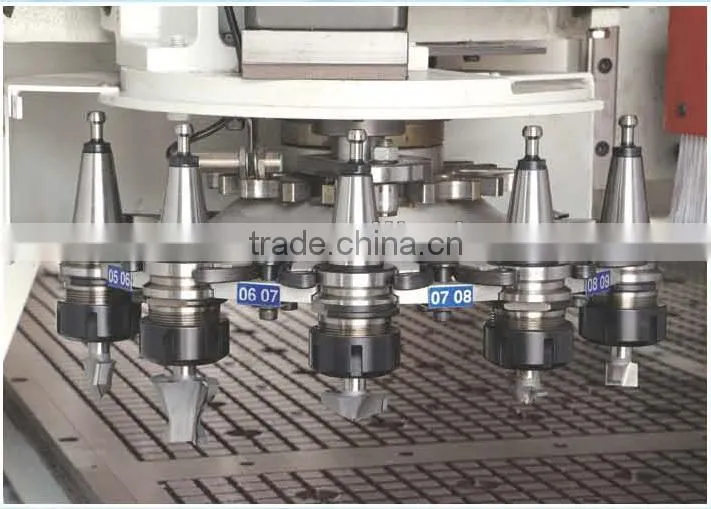

Tool magazine, type (rotary or linear) | 8 tools (rotary) |
Design software | CAD/CAM/wentai/castmate/ type3 / arteam |
Drive system | Servo system |

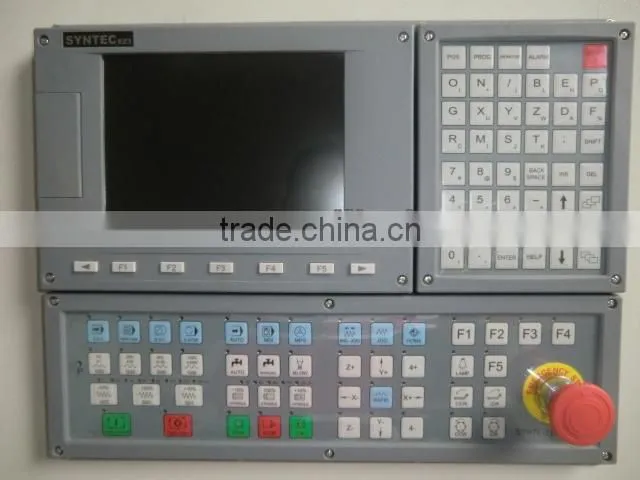

Control systerm | SYNTEC Talwan |
Instlled power | 18Kw |
Vacuum pump | 140m³/h brand (Baker Germany ) |
XYZ structure | XY rack pinion Z ball screw |
Command Language | HPGL G code |
Working voltage | AC 380V/50HZ 3-phase |
Parts show

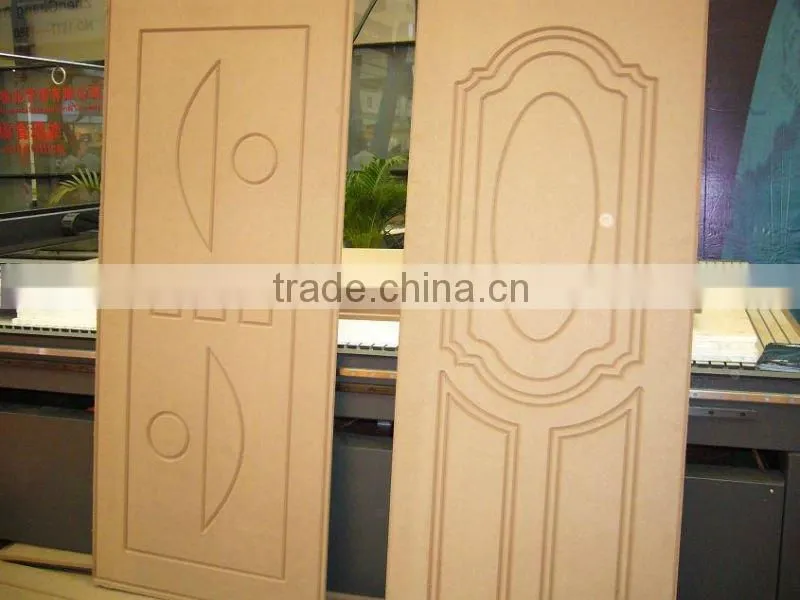

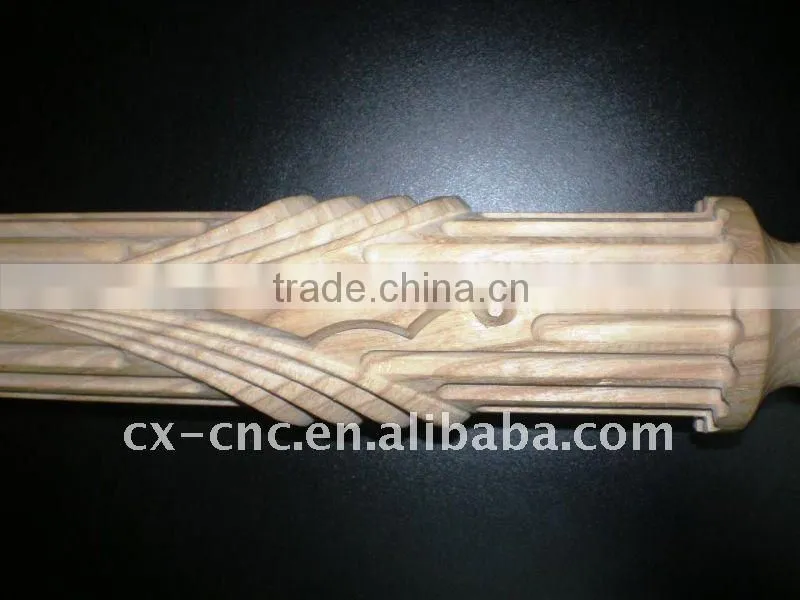

Sample show
Company Profile
Jinan creat star cnc router co.,ltd is a professional manufacturer specializing in the R&D,marketing and sales of cnc machines.Our products are widely applied in the wood engraving,mould making and drilling and non-metal engraving fields.
Our company covers an area of 2,000 m2 with 15 assembling lines,and has more than 30 experienced workers,well trained R&D and after-sales staffs.Each year,1000 sets of cnc machines and excellent service are provided for different demands.
our HAWK brand cnc machines are of CE certificate and have been exported to many countries in the world markets,besides, convenient distribution channels have been established in India, Ghana, Saudi Arabia,different customers from diverse industries have found our machines to be reliable and indispensable to their company.
Different cnc products can be provided according to the market demands,one is for the wood working,multiple functions,such as engraving,drilling ,cutting and slotting,can be well done on wood,MDF,aluminum,acrylic and marble;the second is for sign making,it can engrave and cut on acrylic,steel,plastic marble etc;the third is for mould making,it can engrave and drill on aluminum,metal,plastic for mould making,also gluing and engraving in the Expendable casting proces(ECP) can be well done;Besides,our brand laser machine can engrave and cut non-metal materials such as leather ,glass,acrylic and plastic.
Reliable distributors are urgently wanted in the world markets,and we look forward to establishing a long term businese relationship for mutual benefits.
