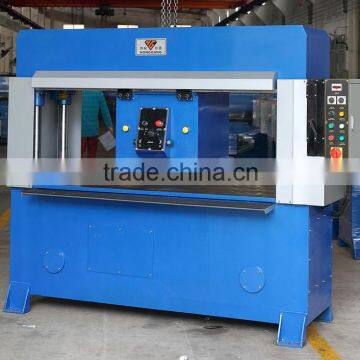

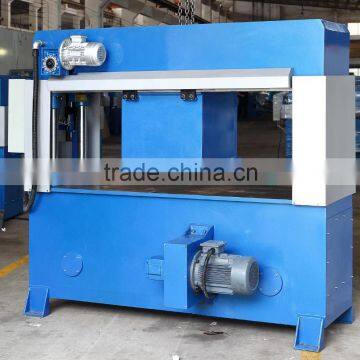

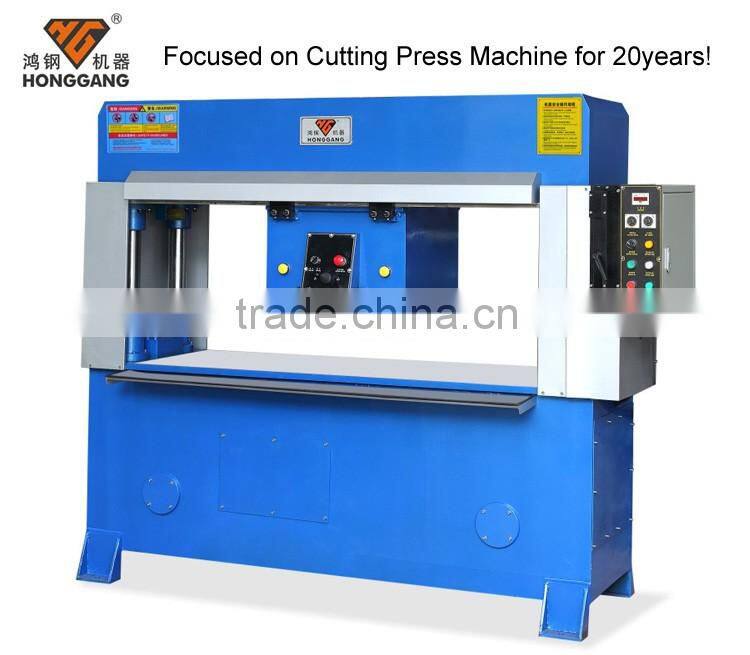

2016 Hydraulic Moving Head Cutting Press / Punching Machine
Watch on youtube:
Travelling Head Precision Hydraulic Cutting Machine (testing video):
/watch?v=sIpt39JYVOI
More travel head cutting machine video on our youtube page:
/channel/UCO-wTQeY0Hox4c4Gako8vAQ/videos
What Specification of our travel head cutting machine?
The working principle of the hydraulic cutting machine is down press to the mould,to cut material by dies / moulds.
1.travel head cutting machine pressure:25Tons-50Tons,Cut material by dies / moulds.
2.Hydraulic,manual simple operated,material precision 0.01mm,no burned.
3.Two Cylinders,Four Column,Plane cutting press machine
4.Usually cut for shoe uppers,insoles,bags,purse,soft toys,abrasive tools,fabric ect.
5.Can make big cutting area:610*1600mm or as required.
Mainly used for die cutting leather and leather products,plastic,rubber,sponge,foam,EVA,PVC,cardboard, paper products,fabric,home textiles,packaging materials,non woven,carpet,car cushion,felt,synthetic materials, and other non-metallic materials in various industries;Extremely suitable for cutting multiple layers of material at one time.
1. Technical Parameters travel head cutting machine
| Model.No~ | Cutting Force | Dimension (L*W*H) | Cutting Area | Cutting Plate | Main Motor Power | Stroke Control Range | Net Weight |
| HG-C25T | 25 Tons | 2330*900*1900mm | 500*1600mm | 500*500mm | 2.2kw | 40-160mm | 1900kg |
| HG-C30T | 30 Tons | 2330*900*1900mm | 610*1600mm | 610*610mm | 4kw | 40-160mm | 2300kg |
| HG-C40T | 40 Tons | 2330*900*1900mm | 610*1600mm | 610*610mm | 4kw | 40-160mm | 2800kg |
| HG-C50T | 50 Tons | 2330*900*1900mm | 610*1600mm | 610*610mm | 5.5kw | 40-160mm | 3500kg |
2. Features and Advantages travel head cutting machine
Features and Advantages | ||||||
| 1.Movable trolley with powerful dynamic braking assuring a quick stop without gear motor without gear motor. | ||||||
| 2.Pushing double buttons with two hands to ensure operators safety. | ||||||
| 3.Hydraulic auto balance system,low energy consumptions. | ||||||
| 4.High reliability,no primary,maintenance required. |
What Working of our travel head cutting machine?

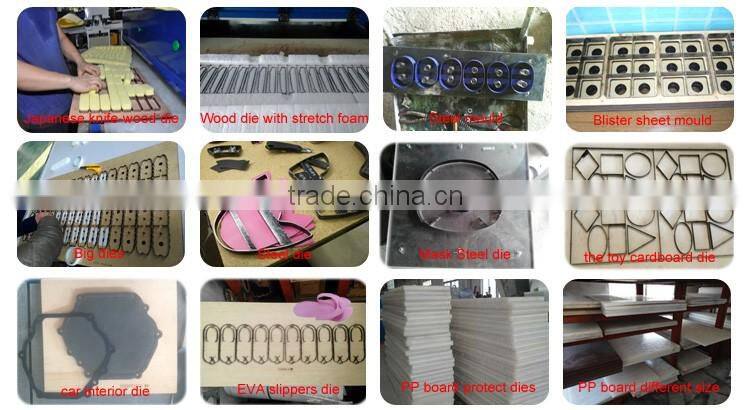

3. the cutting-dies & PP board
We can according to your material,requirements,design the mould for you.

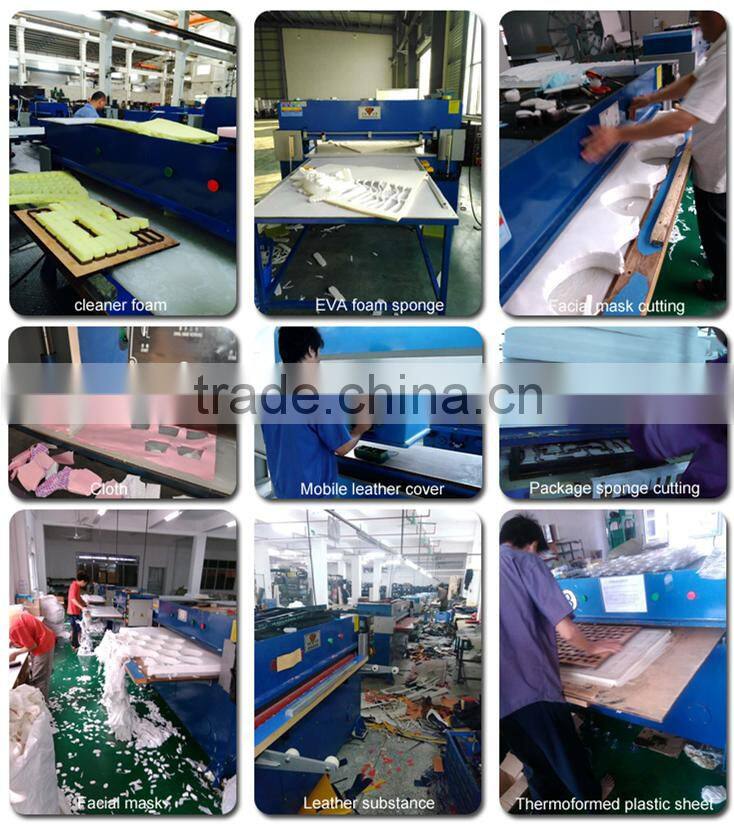

What Application of our travel head cutting machine?

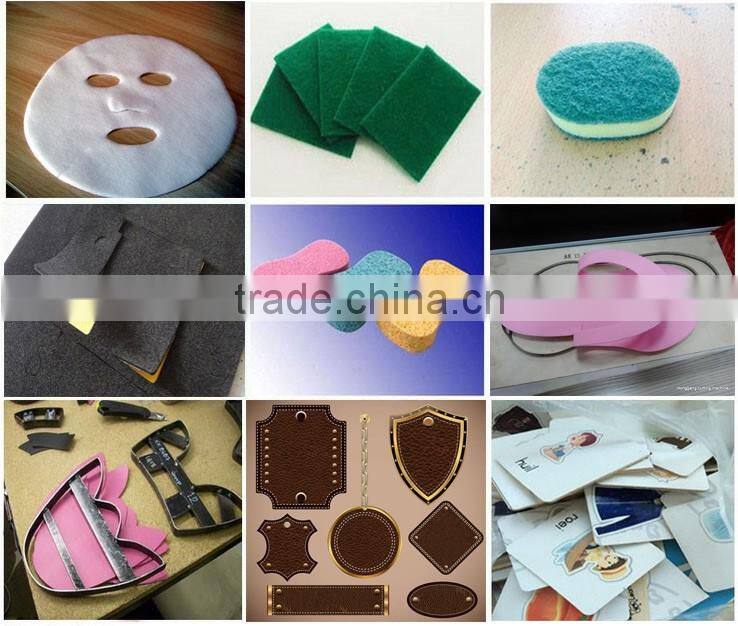

The hydraulic travel head cutting machine is suitable to die cut all non-metal soft /half-soft materials, especially use for die cutting shoes,suitcases,bags,cases,seat covers,facial mash,soft toys,cleaning sponges,artifical flower,EPE,EVA,blister and abrasive tools.

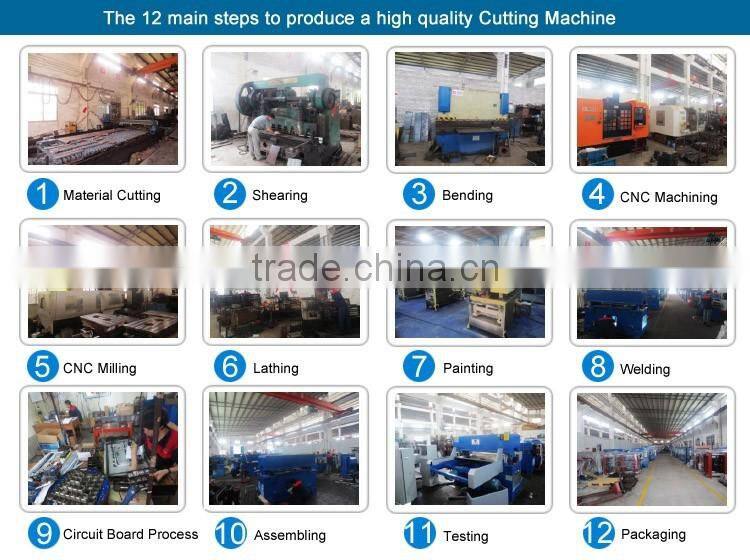

4.The Hydraulic travel head cutting machine Manufacturing Process:
Trade Terms:
Trade term:FOB,CIF,EXW
Payment terms:T/T,Westem Union,PayPal,Escow,MoneyGram.
Payment Condition:30% deposit in advance. 70% balance before delivery.
Delivery time:5-15days working days after deposit.
Packing:Wooden case with plate.
Shipment:By Sea.
1. We are a factory, and the price is favorable.
2. We have strict QC system.
3. We offer a free after-sales warranty for 1 years;life-long maintenance service.
4. Our engineers are available to service machinery overseas.
5. Our machines have been sold to over 40 countries.
Company show
1)What's warranty of hydraulic cutting machine?
12 months Warranty
Life-long maintenance service for press cutting machine
2)What's your after-sales service?
Engineer available to serve machines over seas;
Email and calling service in working hour; 24 hours door to door in domestic.
3)Can we test the our material by your machine free?
Yes, please contact us to send your matrial.
4)How to confirm how much ton pressure is fine?
Always 1m knife line need about 5 ton pressure.
please send your drawing or product photo, we can help you confirm.
5)Can you make dies & PP boards?
Yes, just send your drawing or material.
PP board will come with machine to you.
6)Are you a factory or trading company?
We are a factory and manufacturer
Don't know how many ton you need?
Please contact us!
Don't know how the machine working?
Please contact us to see the video!
How to Contact Us?
If you are not sure if your material can be cut by this cutting machine,we want to know the product information:
| Material: | |
| Max. material width: | |
| Max. material thickness: | |
| Max.cutting length: | |
Send your Inquiry Details in the Below, Click "Send" !
we will reply within 24h!
