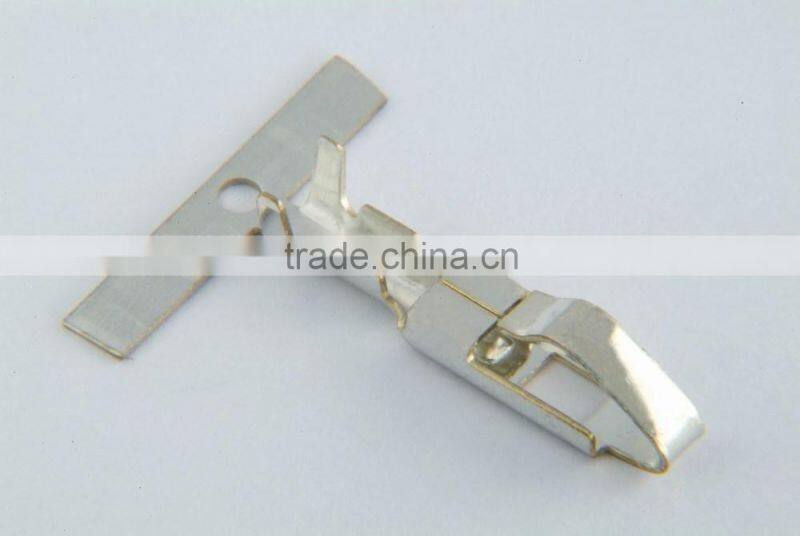

Automotive wire connector terminal
- 500000 Piece / Pieces per Month
- shenzhen
- T/T Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | ANPEAK | Model Number: | DF-CT009 |
Type: | Other, Crimp Terminal, male crimping terminal for medical equipement and automobile |
Packaging Details
Inner packaging: Roll
Outer packaging: Carton
Product Description

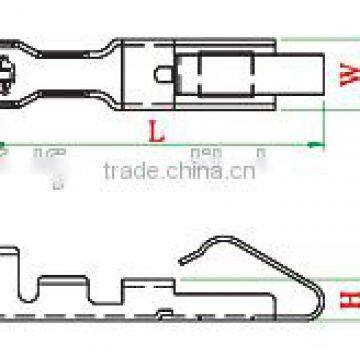

L :22.6 W :4.8 H :2.8 D :0 E :0
Product Description
1. Crimping terminal for Medical equipement or Automobile
2. Produce in house,resonable price with excellent quality
3. 100% testing befere shippment
4. Plastic Material: brass,tin plated
5. Color: silver
6. Applicable wire: 0.5-1.25mm2
6. We have our own mold, delivery time in 7 business day, and provide you factory price.
2. Commercial Standards and Specifications:
A. JASO D605 Multi-pole Connector for Automobiles.
B. JIS C3406 Low Voltage Wires and Cables for Automobiles.
C. JIS D0203 Method of Moisture, Rain and Spray Test for Automobile Parts.
D. JIS D0204 Method of High and Low Temperature Test for Automobile Parts.
E. JIS D1601 Vibration Testing Method for Automobile Parts.
3. Materials:
Description | Material | Finish | |||||||
Housing | PA66 + GF15% | N/A | |||||||
Terminal | Brass/phosphor bronze | Gold/Nickel/Tin Plating |
4. Ratings:
A. Voltage Rating: 30 V MAX
B. Current Rating : 5A.
C. Temperature Rating : -40~85℃
We can provide you all kinds of automotive connectors, wire to wire connectors,wire to board connectors, LVDS connectors, USB connectors, waterproof connectors, cable connectors, and so on..
