SKYFIRE 3 axis mini milling machine-SVM-1VMC Workstation

Name: SKYFIRE 3 axis mini milling machine-SVM-1VMC Workstation
Brand: SKYFIRE
Availability: InStock

FOB Price

USD $9,000 - $15,000 / Unit

1 Unit(Min.Order)

Supply Ability 30 Unit / Units per Month
Port Qingdao
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China
Brand Name	SKYFIRE	Model Number	SVM-1VMC Workstation
Type	Other, Vertical, Vertical
Voltage	220V/380V	Power(W)	5.0kw
Dimension(LWH)	90014001650mm	Weight	750kg, 750kg
Certification	CE CERTIFICATE, CE CERTIFICATE	Warranty	1 Year, 1 YEAR

Product Description

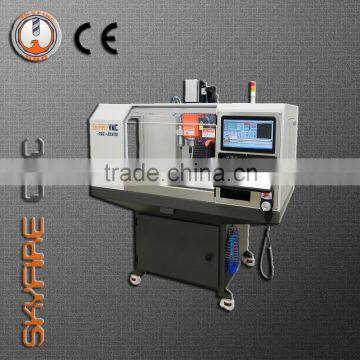

SKYFIRE SVM-1 VMC Workstation

SVM-1VMC Workstation is a professional small CNC milling machine. It’s equipped with standard BT30 AC SERVO spindle system and full 3 axis AC SERVO driving system. It supports ATC upgrade. It’s integrated with touch panel tablet PC controller system to enable all CAM works on one machine. It's suitable to professional personal users, workshops, R&D departments, metalworking factories etc.

KEY FEATURES:
Compact but ALL IN ONE original design
Super rigid/high quality HT250 resin sand casting iron structure
Precision LINEAR WAYS & C3 class ground ball screws for all 3 axis

Industrial level motion accuracy control
Powerful AC SERVO spindle driving system
High speed AC SERVO driving system for all 3 axis
Industrial BT30 spindle unit & air drive power drawbar

Full auto one-shot lubrication system for all motion parts
4 axis USB CNC controller or MESA card controller
14” Touch panel tablet industrial PC integrated

Optional MACH3/LINUX CNC etc. PC based controller
Many expandable functions and accessories available

Product Show

Machine Detail Show

High rigid machine frame

SVM-1 series small CNC milling machine has over 350kgs resin sand casted HT250 iron frame with more ribs. All of the parts have been aging-treated to prevent losing accuracy by time.

Multi-machining capability

SVM-1 series has standard AC servo drive BT30 1^st spindle and supports 2^nd high speed engraving spindle and 4^th precision rotary worktable.

Integrated Tablet PC CNC system

A touch screen Tablet PC system is integrated to support CAM works from design to machining. It supports MACH3/4 or Linux CNC etc. CNC softwares.

Specifications

Application Demos

Aluminium part milling

material: AL6061-T6

Steel part milling

material: C45 steel

3D engraving

material: AL6061-T6

4 Axis maching

material: AL6061-T5

Work Parts Show

1. Mouse model

2. Cell Phone Model

3. Steel Part

4. 3D engraving model

Learn More

Find more information on our website

Please visit our website for more information about this machine and others. We publish any updates there for reference there.

Search our demo videos on YouTube

We keep uploading machine demo videos on YouTube. Pleae search SKYFIRE CNC there to watch many demo videos of our machine types.

Know more about us

YANTAI LOFTY MOUNTAIN MACHINERY MANUFACTURING Co., LTD entered the CNC field since 2004. Company specializes in CNC machinery's R&D and manufacture, sale and service. Our product range covers small CNC Milling Machines, small CNC Machining Centers etc.Our machines are widely used in R&D departments, workshops, metal factories and education&training schools.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 7-10 days if the goods are in stock. or it is 30-45 days if the goods are not in stock.

Q: What is your terms of payment ?

A: Payment<=2000USD, 100% in advance. Payment>2000USD, 50% T/T in advance ,balance before shippment.
If you have more questions, pls feel free to contact us.
