Automotive 32 pin female connector
- 10000000 Piece / Pieces per Month
- shekou
- T/T
- China Professional Automotive 16 Pin waterproof car connector
- Custom Product 16 Pin male and female electrical connector
- High Precision 16 Pin electrical wiring connector
- Professional Manufacturer 16 Pin electrical wire connectors types
- Professional Designer 16 Pin bnc connector auto electrical wire connector
- Professional Maker 16 Pin lock wire joint connector
Product Details
Place of Origin: | Guangdong, China | Brand Name: | DFJM | Model Number: | DF-PC010 |
Type: | Other, automobile connectors | Application: | Automotive | Gender: | Other, Male and female connectors |
Packaging Details
Inner packaging: Shaped Plastic
Outer packaging: Carton
Product Description

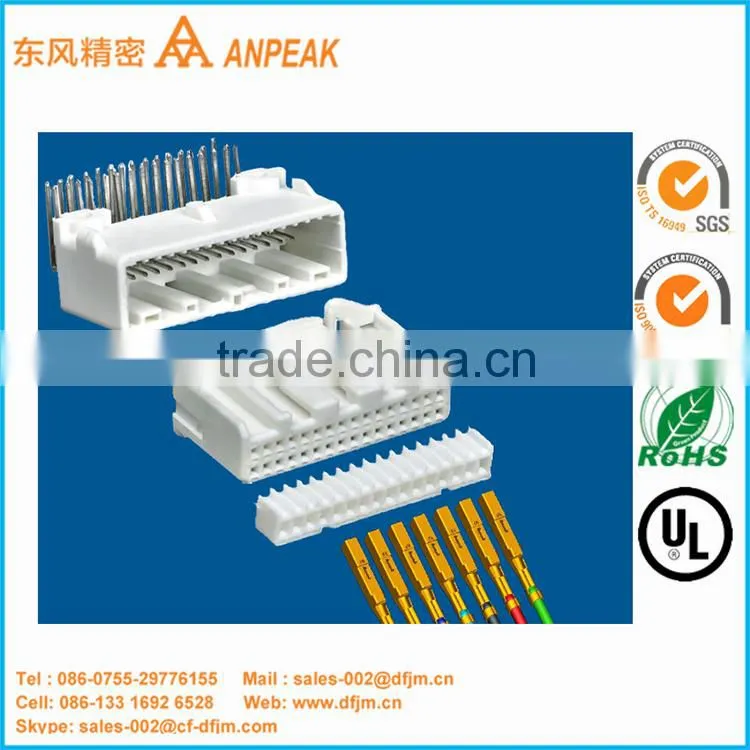

Automotive 32 pin female connector
2.Technical spec. | |||||||||
A. Voltage Rating: 24 V DC | |||||||||
B. Current Rating : 3A. | |||||||||
C. Temperature Rating: -40~120℃ | |||||||||
D.Contact resistance: 10 mΩ Max. (Single terminal) | |||||||||
E.Insulation resistance: 100 MΩ Min. 500V DC. | |||||||||
F.Withstanding voltage:500V AC/minute | |||||||||
G. Applicable wire:0.2~0.5mm2 | |||||||||
H.Compliant with RoHS. | |||||||||
3. Commercial Standards and Specifications: | |||||||||
A. JASO D605 Multi-pole Connector for Automobiles. | |||||||||
B. JIS C3406 Low Voltage Wires and Cables for Automobiles. | |||||||||
C. JIS D0203 Method of Moisture, Rain and Spray Test for Automobile Parts. | |||||||||
D. JIS D0204 Method of High and Low Temperature Test for Automobile Parts. | |||||||||
E. JIS D1601 Vibration Testing Method for Automobile Parts. |
4. Materials: | |||||||||
Description | Material | Finish | |||||||
Housing | PBT | N/A | |||||||
Terminal | Brass | Tin Plating | |||||||
5. Performance Requirements: | |||||||||
A.Terminal and housing between the retention force: 30N Min. | |||||||||
B.Contact resistance: 10 mΩ Max. (Single terminal) | |||||||||
C.Insulation resistance: 100 MΩ Min. 500V DC. | |||||||||
D.Connector Mating Force: 70N Max. Operation Speed : 100mm/min. | |||||||||
E.Connector Unmating Force: 50N Min. Operation Speed : 100mm/min. | |||||||||
F.Wave-soldering temperature: 250℃~270℃. (manual soldering temperature: 340℃~390℃.) |
P/N. | NAME | Description | |||||||

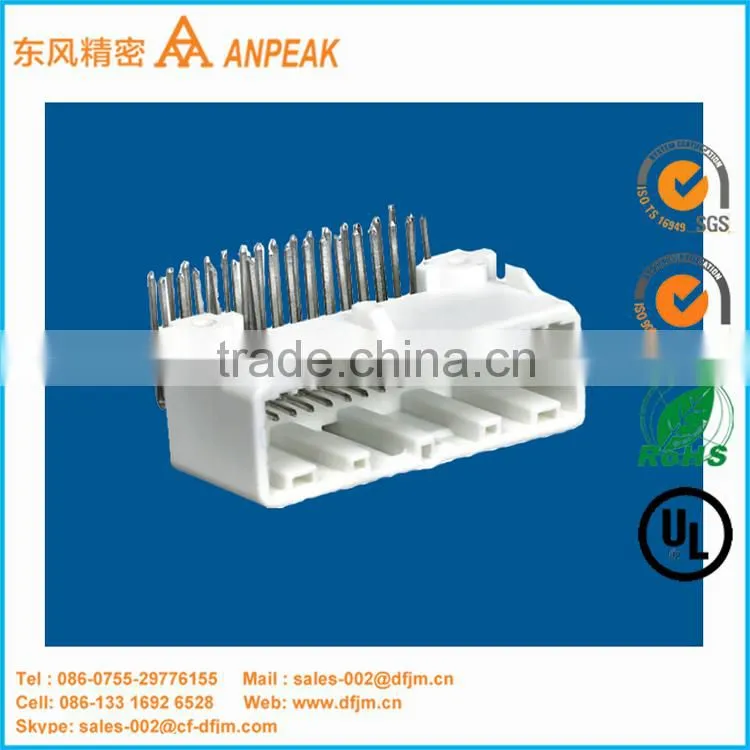

DF0001-06 | DF-WZ24WM01B.01 | 24Pos H-TYPE Receptacle, Mounting Screw:M2.5 | |||||||
DF0001-07 | DF-ZZ24WM01B | 24Pos V-TYPE Receptacle, Mounting Screw:M2.5 | |||||||

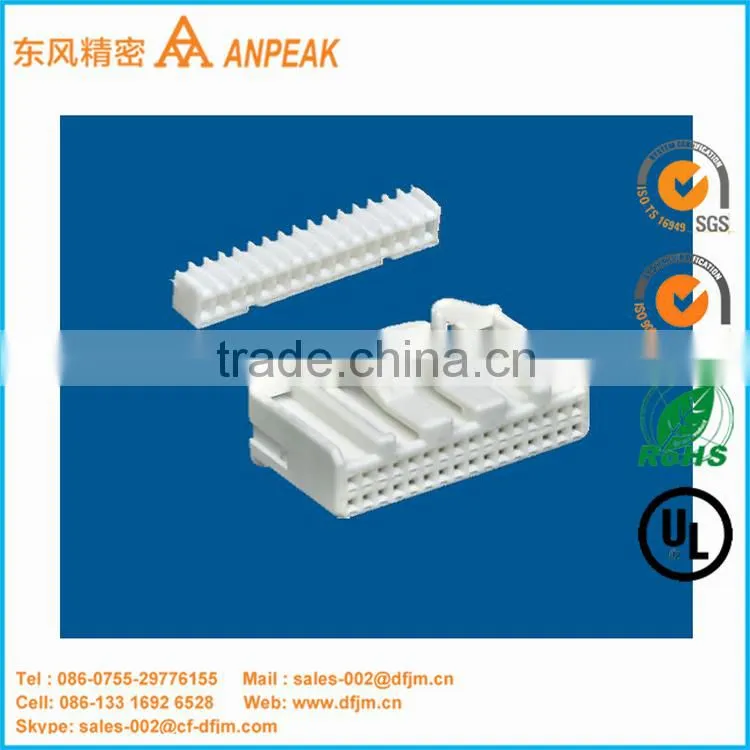

H11000043 | DF-TKA24MW02WH | 24Pos Plug Housing | |||||||
DF0001-273 | DF-WZ16WM01B.01 | 16Pos H-TYPE Receptacle, Mounting Screw:M2.5 | |||||||
DF0001-05 | DF-ZZ16WM01B | 16Pos V-TYPE Receptacle, Mounting Screw:M2.5 | |||||||
H11000077 | DF-TKA16MW02WH | 16Pos Plug Housing | |||||||

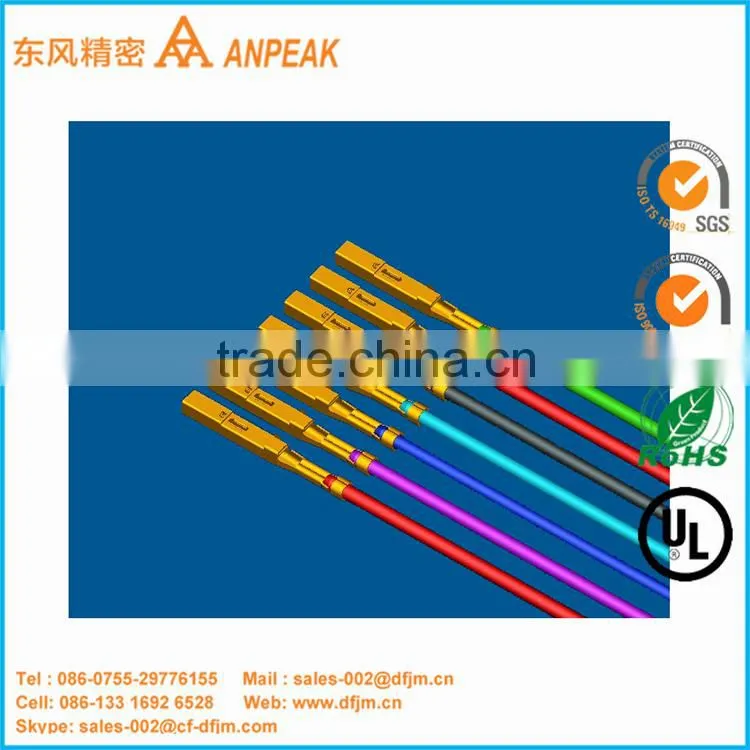

T11000034 | DF-TK02MT | Plug Terminal |
We can provide you all kinds of automotive connectors, wire to wire connectors,wire to board connectors, LVDS connectors, USB connectors, waterproof connectors, cable connectors, and so on..
