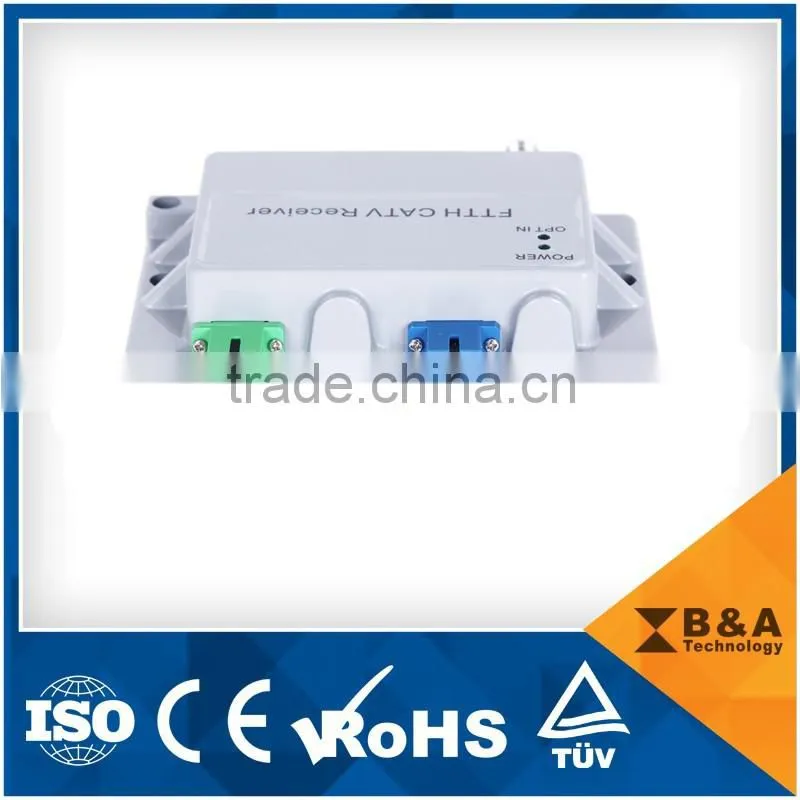

CATV Fiber Optical Receiver

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:

Shanghai, China

Brand Name:

B&A

Model Number:

OR9910

CATV Fiber Optical Receiver

Application

CATV

Optical Characteristics

Parameter	Symbol	Min		Typ	Max	Unit
Wavelength		1000		----	1600	nm
Optical power Analog TV RF		-8		---	+2	dBm
Optical power DVB-C QAM RF		-14		------	+2	dBm
RF Bandwidth		50		----	1000	MHz
Optical Return Loss		------		50	-----	dB
RF Output Impedance			-----	75		Ω
RF Output Level Analog TV RF @-5dBm			20	-------	----	dBmV
RF output level DVB-C QAM RF @-9dBm			15	-------	----	dBmV
RF Flatness			------	±0.75	----	dB
RF Return Loss			14	----	----	dB
Analog TV RF CNR Digital TV QAM MER Analog TV RF @-5dBm			45	----	----	dBc
Analog TV RF CNR Digital TV QAM MER DVB-C QAM RF @-9dBm			34	----	----	dBc
CSO @77ch NTSC Analog TV RF			----	----	-60	dBc
CTB @77ch NTSC Analog TV RF			----	----	-60	dBc

Electric ElectricCharacteristics

Environmental Characteristics

(3):Non-condensing

Order Information
