Home > Products > FRP Grating > frp/grp platform grating, pultruded frp/grp fiberglass grating
frp/grp platform grating, pultruded frp/grp fiberglass grating
- 20000 Meter / Meters per Month
- Qingdao
- T/T Credit Card
- anti-corrosive fiberglass grating cover for air conditioner, insulation
- High Strength Road Drainage Grates Fiberglass FRP Trench Grates
- Pultrusion FRP Grate FRP Floor Grating Fiberglass Trench Grate
- Pultruded Fiberglass Grating Floor Grating Trench Grating
- Pultruded fiberglass grating/floor grating, wide support spans
- Pultruded fiberglass industrial grating, extremely high unidirectional strength and stiffness
Product Details
Place of Origin: | Henan, China | Brand Name: | yalong | Model Number: | frp/grp grating |
Application: | walkway, trench cover, platform,decks, patios,Pedestrian Ramps | Surface Treatment: | as customer require | Technique: | pultruded frp/grp grating |
Dimensions: | 25mm to 65mm thick |
Packaging Details
In bulks,woven bags,wooden cases,cartons,container,which suitable for the asia product/FRP construction materials.
Product Description
frp/grp grating, pultruded frp/grp fiberglass grating
Pultruded FRP Grating is built with a much stronger process, and can carry a far superior load, and handle much greater impacts than molded grate.
long-term durability, offers the strength of steel at a fraction of the weight, plus it won’t corrode, spark or conduct electricity. Because it weighs less, it’s easier to install. And the color is molded all the way through, so no painting is required.
Yalong fiberglass floor grating specification list:
Item | high A (inches) | top wide B (mm) | bottom wide D (mm) | top space wide C (mm) | theoretical weight (KG/M2) |
25mm I | 1 | 30 | 30 | 13 | 13 |
25mm I | 1 | 30 | 30 | 30 | 10 |
25mm I | 1 | 15 | 15 | 10 | 17 |
25mm I | 1 | 15 | 15 | 23 | 11 |
38mm I | 1.5 | 15 | 15 | 10 | 26 |
38mm I | 1.5 | 15 | 15 | 15 | 22 |
38mm I | 1.5 | 15 | 15 | 23 | 18 |
40mm I | 1.6 | 40 | 20 | 27 | 19 |
40mm I | 1.6 | 40 | 20 | 40 | 17 |
40mm I | 1.6 | 40 | 20 | 60 | 14 |
40mm I | 1.6 | 30 | 30 | 20 | 14 |
40mm I | 1.6 | 30 | 30 | 30 | 12 |
40mm I | 1.6 | 30 | 30 | 45 | 10 |
58mm I | 2.2 | 15 | 15 | 10 | 32 |
58mm I | 2.2 | 15 | 15 | 15 | 27 |
58mm I | 2.2 | 15 | 15 | 23 | 22 |
65mm I | 2.5 | 30 | 30 | 20 | 17 |
65mm I | 2.5 | 30 | 30 | 30 | 15 |
60mm I | 2.5 | 30 | 30 | 45 | 12 |
Pultruded frp grating advantages
- Corrosion Resistant.
- High Strength-to-Weight Ratio.
- Long Service Life.
- Fire Retardant.
- Slip & Impact Resistant.
- Nonconductive.
- Easy to Install & Fabricate.
FRP/GRP Fiberglass grating Applications:
Bridge walkways
Platforms
Trench Covers
Walkways
Pedestrian Ramps
Decks and Patios
Yalong Pultrusion fiberglass profile including:
fiberglass rod, round tube, channel, angle, I beam, square & rectangular tube, window frame, shutter blade, other structural profile, etc.
Above profile generally be assembled to:
Structural shapes
Fiberglass window and shutter
Pultruded Fiberglass Grating
Guardrail handrail fence
Insulation ladders and stairs
Tool handle
Cooling tower components
filler supports, anti-freeze board, grating walkway
Structure and support

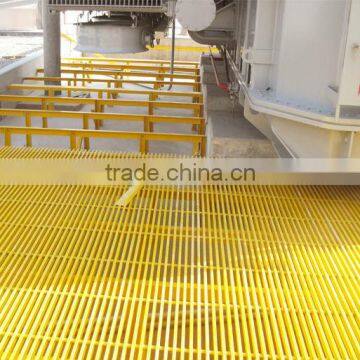

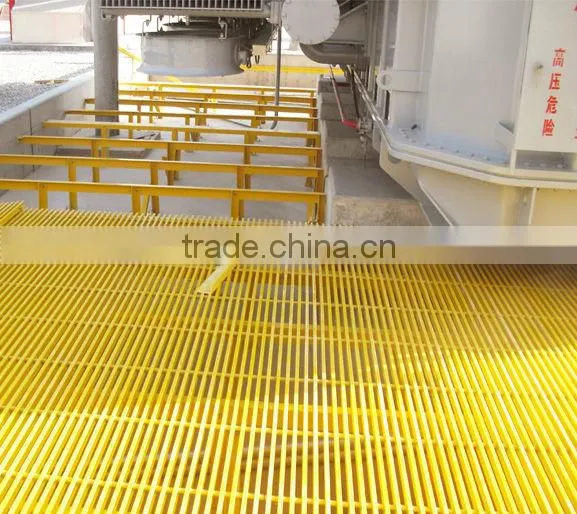

Yalong fiberglass product project photo
Yalong factory view
Company Profile
Zhengzhou Yalong Pulterx composites Co., Ltd. was established in September 1994 and became a member of China Fiber Reinforced Plastics (FRP) association in April 1995, was recognized as a high-tech enterprise in Zhengzhou.
Yalong took part in many important construction project in China, for example, China western area Aluminium smelter plant construction, Northeast power plant cooling tower anti-freeze project, the biggest nylon"66"project in Ping Ding Shan, etc.
Yalong products recommended by the Standardization Committee of China Construction Department, meanwhile, selected in "Anti-corrosion structure in construction "J333(BII)" Selected national standard design drawings", won the third term Scientific and Technical Advance Prize of Henan Province.
We produce different FRP profiles with different resin such as: polyester, polyethylene, epoxy, and phenolic.
FRP fiberglass profiles also could be assembled to different fiberglass product according to customer requirement, such as:
Fiberglass window and shutter
Pultruded Fiberglass Grating
Fiberglass guardrail handrail fence
Fiberglass ladders and stairs
Cooling tower FRP components
filler supports, anti-freeze board, grating walkway
Fiberglass Structure and support
Yalong have great quality control from raw materials to finished product, also offer best after sale service.
20 years producing experience ensure top class quality, we also welcome OEM and ODM, welcome contact us freely.
