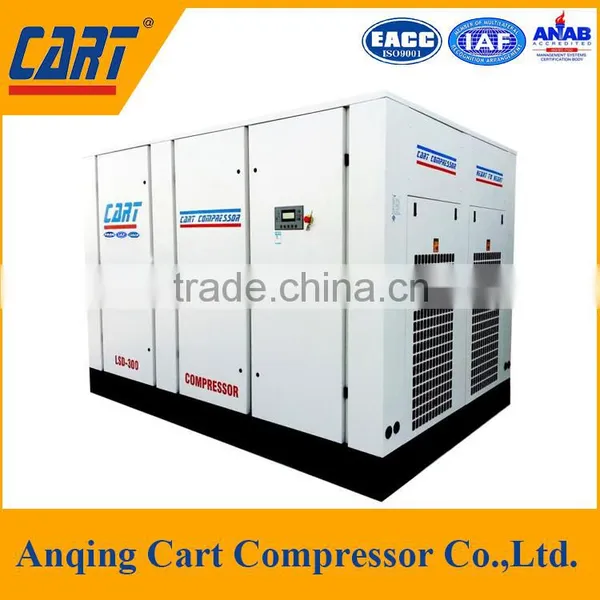

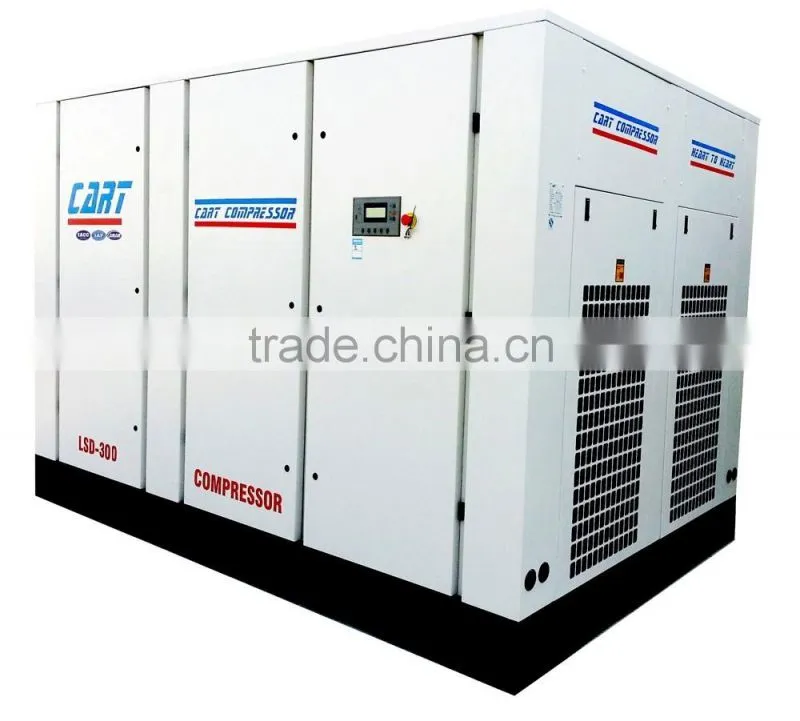

LSD-270 Chinese LCD controller low noise high energy efficiency compressor

  LSD-270 Chinese LCD controller low noise high energy efficiency compressor

 Microcomputer controller features

 (1)English and Chinese LCD interface

(2)To motor with short circuit, plugging turn, phase lack, overload, balance of all-round protection function;

(3)The opration of the motor and stop control;

(4)Prevent compressor reversal protection and display;

(5)The multiple temperture detection and display;

(6)Automatic adjustment compressor load ensure that get steadypressure

(7)Can set far away or local control function;

(8)Many machine joint control and independen optation option;

(9)Rs-485 communication function;

(10)GPRS mobile communication function remote control (opotional).

Microcomputer controller warnings and prompt functions

(1)air filter replacement warning indication;

(2)oil filter replacement warning indication;

(3)oil and gas separator change cycle warning indication;

(4)warning and prompt replacement oil.

Microcomputer controller safety protection

(1)Protection motor: compressor motor short circuit, plugging turn, phase lack, three phase power imbalance protection;

(2)Compressed air super high temperature protection;

(3)Prevent compressor the reversal of the protection;

(4)The pressure of compressed air ultra high protection;

(5)The temperature sensor and gas pressure sensor failure protection;

(6)The main motor and the fan motor protection.

 LSD series(Direct drive)screw compressor technical data(22kw-160kw)

•  Standaird power:380V ±10%/50HZ,460V/220V/6KV/10KV and other voltage can be customized.
• 11KW or below 11KW adopts direct staring. Above 15KW applied with star-delta staring. Soft starting is available.
• Working environment temperature:-5°c-45°c
• F.A.D capacity abided by ASMC PTC9 or ISO1217 standard(GB/T3853) Test.
• Cooling water inlet water temperature is less than 35°c, water pressure in 0.2Mpa to 0.6Mpa, the minimum water, and the water temperature is 24°c;the maximum water, the water temperature is 38°c.
• Transmission mode:Drect drive
• Exhaust pressure below 1.7 Mpa can be customized.
• We have the right to change the appearance&parameters of our products expect informing.

 Typical configure

 Perfect sales and service management system

Pre-sale services

CART air compressor innovation design not only save maintenance cost, ensure that a low temrature and low system of compressed air temperature, all of the parts good cooling effect, thus the more reliable. Easy to open the door, regular maintenance time, more air filter, oil filter, oil separator is designed to reduce downtime and maintenance costs.

Sale of servies

In order to obtain more customer satisfaction and establish longterm stable cooperative relation with our dedication to each and the dealer provide timely, professional services and technical training, so that you will not have to worry about,

1. Free compressed air system consulting, design, planning and any other services, to help customers to design a reasonable compressed air system, economic, and reliable.

2. Free for users training qualified personnel.

After-sales service

1.We have a national sales network, meet the customers' needs to repair and maintenance service and spare parts.

2. 24 hours service, and actively cooperate with the production needs.

3. Parts delivery, installation, debugging, ensure that users receive professional, comprehensive service.

4. Help the customer to run the whole document, in order to keep the latest machine running condition, regular tracking service.

5. The company of engineering and technical personnel, professional engineers and authorized dealers to provide professinal, rapid, efficient service.

(CART) is recognized worldwide as the most outstanding air system solutions provider, based on the diverse needs of our customers continued innovation in the field of air compressor system equipment, mining machinery and equipment have established a leading position. With comprehensive strengths in the field of machinery and equipment, Cart has become the industry leader. Currently, our products and solutions have been used in more than 100 countries and regions, serving different industries worldwide

Anqing Cart Compressor Co., Ltd. is the United States (CART GROUP INC.) Authorized the production and marketing of professional manufacturers specialized in producing no oil piston compressor, screw air compressors, sliding vane air compressors and after air-handling equipment.

Cart has the most leading compressor system equipment manufacturing technology and the most remarkable team of experts, also has air system half a century of experience in production and manufacturing equipment, providing quality air system equipment and solutions for global users, the product was widely used in various fields.

In the Asia-Pacific region as a Cart compressor sales and manufacturing base, Anqing Cart  Compressor Co., Ltd. to introduce the latest technology and advanced quality management system of Cart group,development and manufacture of high efficiency, high-quality air compressor system equipment.

Cart high-quality products and services not only for the user to save more investment costs and maintenance costs, while improving the effectiveness of the equipment assets to meet the supply needs of different users in different conditions, the user has laid a solid long-term stable development the foundation, therefore, Cart  has become the most one respected brands in industrial fields.

Cart company set up hundreds of sales and service organization in the world and have set up offices or agents and spare parts warehouse in more than 20 cities in China, ensure the provision of efficient, high-quality pre-sale , after-sales service.

 CART Certificates
