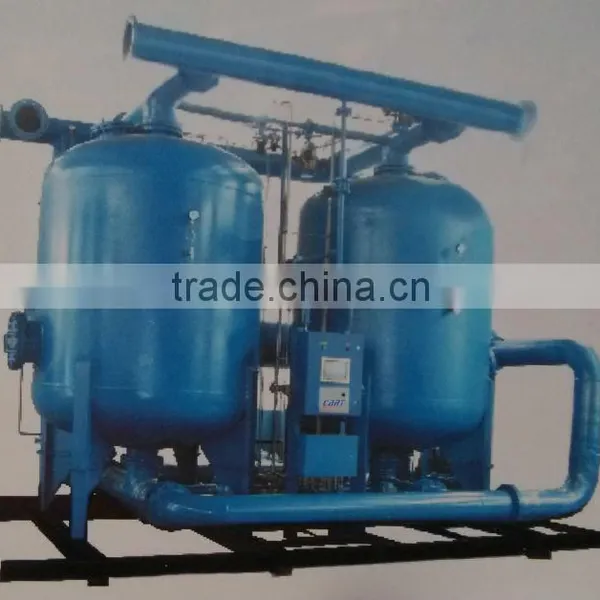

Compressed-heated Regenerative Adsorption Air Dryer

            Compressed-heated regenerative adsorption air dryer

Product introduction

Zero gas consumption regenerative compressed heat dryer is conventional compressed heat regenerative dryer new product, it uses high temperature exhaust heat of centrifugal compressor directly heat the regenerative adsorbent. In the cold air blowing stage, it is also no consumption.  Achieves a goal that without pressure fluctuations, no longer angry smooth consumption during operation, it is really energy-saving products

Work principle

Heating stage (time: 147 minutes)

High pressure and high temperature air is removed by compressor, firstly, the inlet air directly through one tower of dryer to heat, then enters the cooler and then into the gas-water separator, water become liquid and enter the another tower of dryer, finally, the dried compressed air discharged from the outlet.

Buck stage, after heating, the regenerative tower makes the pressure reduced to atmospheric pressure

Cold blowing stage (time: 87minutes)

After the buck, in the heated stages, the tower are heated bypass valve bypass, high temperature saturated moist air is cooled directly into the cooler, and then through the gas-water separator, dry and enter pipe network, export dryer part of the flow through the orifice end of the column body is heated, then it is cooled, and finally through the exhaust of the regeneration

Boost phase, cold blowing finish, start boost

Switch. When the double tower balanced towers pressures, dryer process another tower. If the dew point is in the dryer control state, after the boost, switching the dryer depend on outlet dew point conditions

Product Features

Highly energy efficiency, environmentally friendly, low consumption, low pressure drop, low noise

Security and stable control system to ensure the system runs automatically, without human care, adjustable time program

Optimized tower and piping design, unique among intake, avoid adsorption dead tunneling machine, adsorption tower bottom space can play a role in the expansion, easy to separate moisture to prevent moisture absorption at the bottom, and difficult to accumulate powder, reduce the maximum extent pressure drop

Adopt microcomputer control technology, easy to operate
