Waste Recycling Fuel Charcoal Briquette Plant

Waste Recycling Fuel Charcoal Briquette Plant photo-1
US$ 2,000 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
AMS
Model Number:
AMS
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name AMS
Model Number AMS
Condition New
After-sales Service Provided Engineers available to service machinery overseas

Charcoal briquette plant

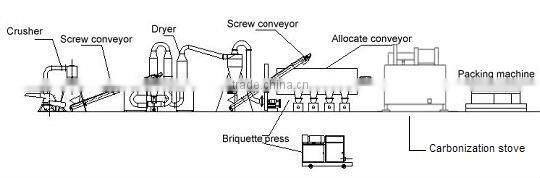

Flowchart-- Charcoal briquette plant

Wood Crusher→Dryer→Briquette Press→Carbonization Stove→Packager

Waste recycling fuel Charcoal briquette plant

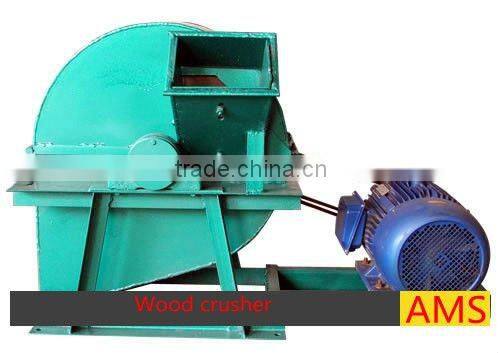

Wood Crusher-- Charcoal briquette plant:



Wood crusher can process many kinds of wood/branches with size less than 200mm(diameter) and moisture below 30%,It also can be used for crushing tree rootbamboostrawcouch grasssorghum straw etc.

The output particle size could reach to 3-5mm after crushed.

 Waste recycling fuel Charcoal briquette plant

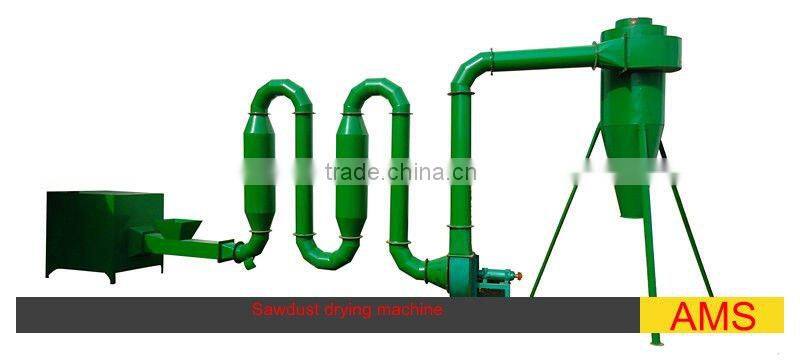

Dryer-- Charcoal briquette plant:



Drying machine prepare suitable moisture raw material for biomass briquette press. The proper moisture of raw material should be 8-12%. The choice on dryer model depends on the original moisture content of raw materials.

 Waste recycling fuel Charcoal briquette plant

Waste recycling fuel Charcoal briquette plant

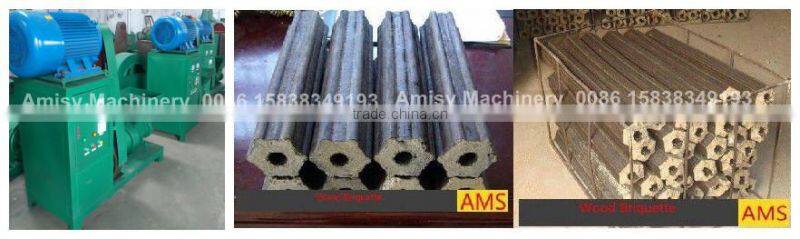

Briquette Press--Charcoal briquette press line:

ZBJ (series) Biomass briquetting is the process of converting substantial biomass wastes(moisture:8-12%, Size:3mm ~ 5mm),such as sawdustsugar canerice strawrice stalkbamboo, corn stalkcotton/bean husk into high density and energy concentrated hollow bio fuel briquettes(half-charcoal stick) under high pressure and temperature.



Model

ZBJ-I

ZBJ-II

Motor (kw)

15kw, 380V/60Hz

18.5kw, 380V/60Hz

Diameter of the briquettes:

Ø 50mm

Ø 70mm,Ø 80mm

Capacity

160-200kg/h

350-400 kg/h

Weight (kg)

600kg

750kg

Dimensions(mm)

1500*600*1600

1850*650*1300

 Waste recycling fuel Charcoal briquette plant

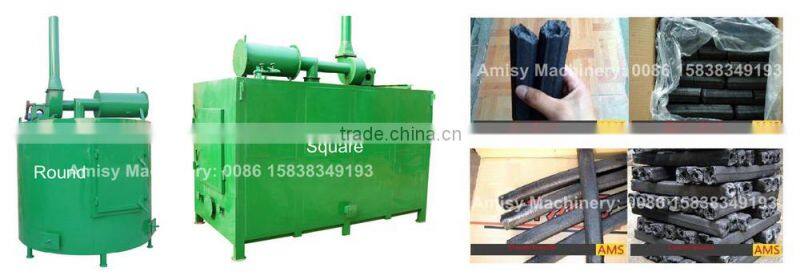

Carbonization Stove-- Charcoal briquette plant :



Carbonization stove adopt superior purifying technology, made from special high temperature resistant material, freeing from oxidation and deformation, superior insulating property, easy operation, safety and reliable, no carbonization blind spot with double chimney, finished products ratio more than 95%.

  Waste recycling fuel Charcoal briquette plant

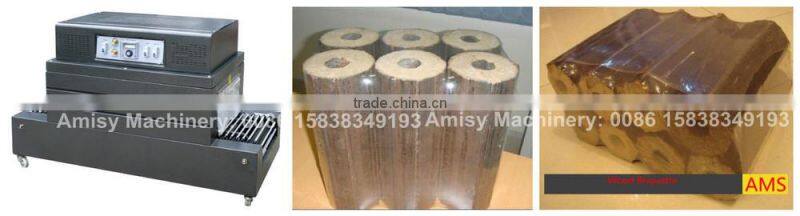

Packing-Thermal shrink wrapping machine-- Charcoal briquette plant:

Pack final biomass briquettes for commercial reselling. They can be wrapped with a layer of plastic film. By thermal shrink wrapping machine, biomass briuqttes can be packed into a bundle.



 Waste recycling fuel Charcoal briquette plant
