Home > Auto, Motorcycle Parts & Accessories > Car Lock > Strong Drawing Force Central Locking System 12V Door Actuator
Strong Drawing Force Central Locking System 12V Door Actuator
US$ 3 - 5
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Certification:
Other, CE, CE/ FCC/ ROHS/ CCC/ E-mark
Voltage:
DC 12V
Material:
Plastic material
Payment & Shipping
Payment Methods:
Port of Shipment:
GUANGZHOU
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Long Life Span Central Lock Motor for CarsUS$ 3 - 5MOQ: 100 Pieces -
Two Master Central Lock Motor for CarsUS$ 3 - 5MOQ: 100 Pieces
-
One Master Central Lock Motor for CarsUS$ 3 - 5MOQ: 100 Pieces
-
Strong Drawing Force Central Door Locking System for Car With Unique AppearanceUS$ 3 - 5MOQ: 100 Pieces
-
High Quality Central Door Locking System for Car With Long Life SpanUS$ 3 - 5MOQ: 100 Pieces
Certification
Other, CE, CE/ FCC/ ROHS/ CCC/ E-mark
Voltage
DC 12V
Material
Plastic material
Place of Origin
Guangdong, China
Brand Name
BATTLESNAKE
Model Number
CF302
Warranty
12 Months

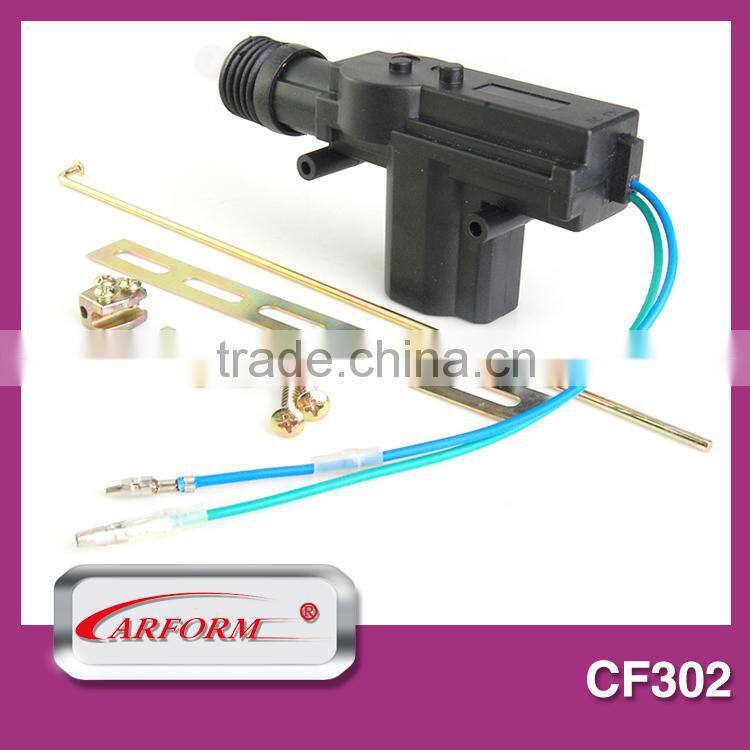

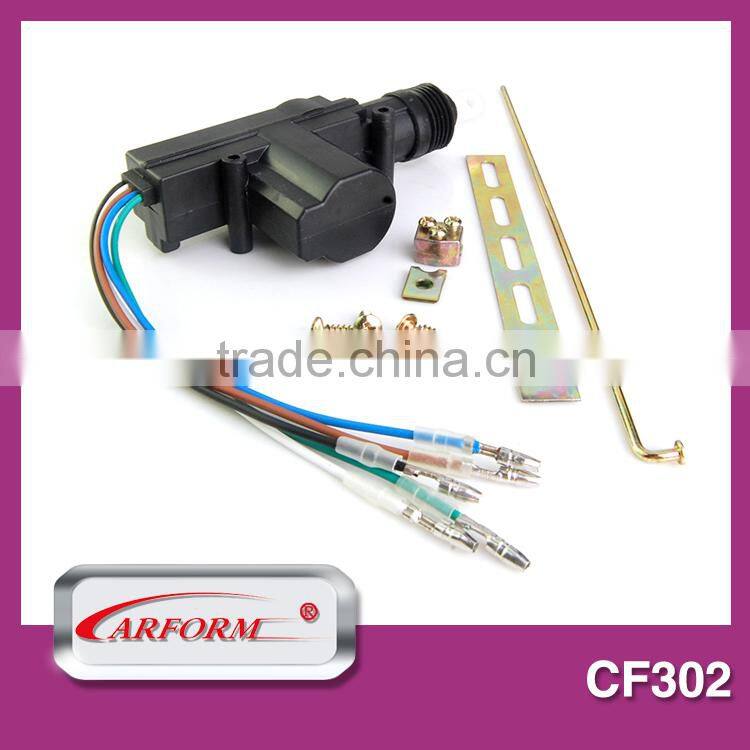

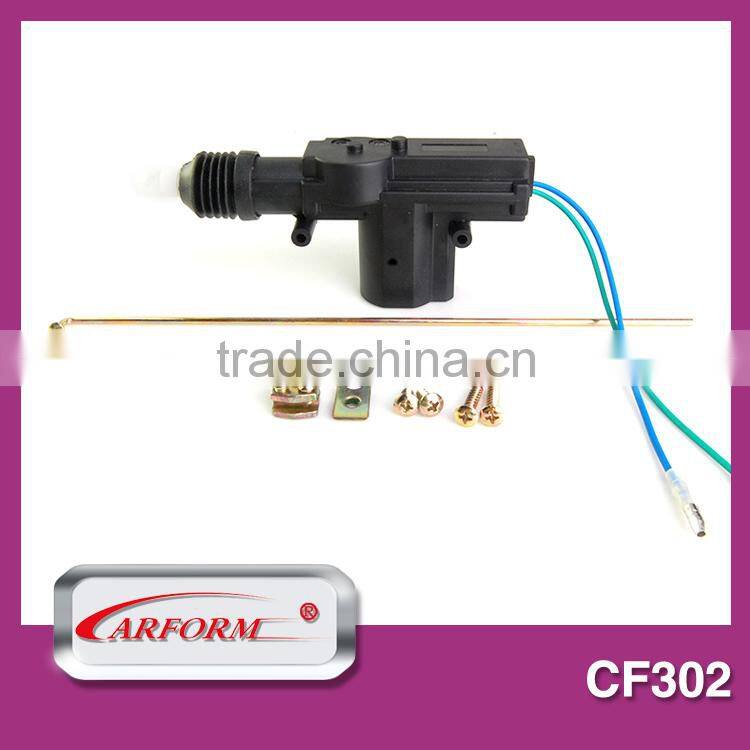

Strong drawing force central locking system 12V door actuator CF302
Univeral for any 12V car type Door Locking System
Function:
central locking is the car door locking system, which supporting the car door LOCK and UNLOCK working, the 4 door actuators will provide the enough motor power to the car door system working well.
Advantage:
| 1-With the metal wheel inside of the door actuator which support the working of the high power motor 5.5kgs; |
| 2-Don't use the recycle plastic cover materials, all used ABS; |
| 3-Long working life, the endurance is more than 80,000.00 times; |
| 4-With tacks for each door actuator to make sure the door actuator will not blow out |
Photo:

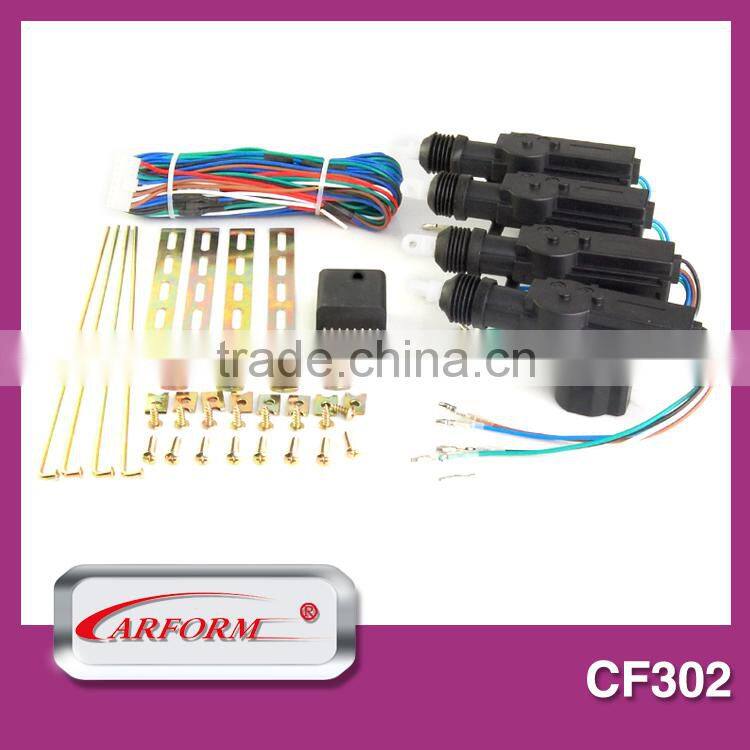

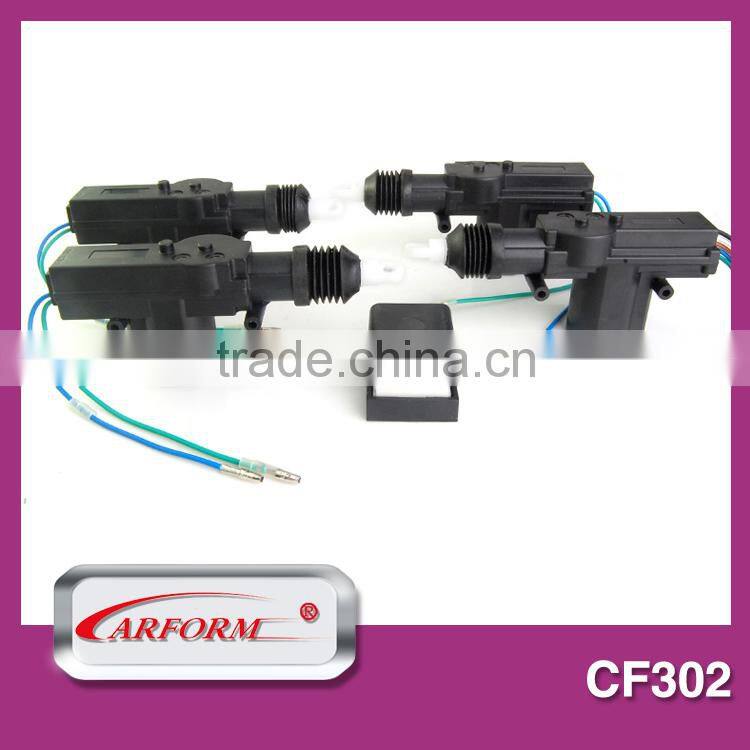

CF302 central locking system whole kits view
Remarks:
1-You can choose 1 master or 2 master
| CF302A | 1 master:1 pcs of 5 door actuators, 3pcs of 2 door actuators |
| CF302B | 2 master:2 pcs of 5 door actuators, 2pcs of 2 door actuators |
2-You can choose the actuator head in white or black color
CF302 central locking system whole kits accessories :
| 1 | Control unit | 1pcs | 5 | Iron rods | 4pcs |
| 2 | door actuators | 4pcs | 6 | Screws | 24pcs |
| 3 | Iron parts(5 holes) | 4pcs | 7 | Wire(2 master:35.3M; 1 master:25.4M) | 1pcs |
| 4 | English Manual | 1pcs | 8 | Color box | 1pcs |
Specification:
| Operation temperature | -30~+60°C | Stroke | >18mm |
| Voltage | DC12V ±10% | No-load &load current | 1.5A ±5% |
| Actuating force | 4.5kgs | The cover materials(actuators & mainunit) | ABS |
| Endurance(up & down) | >80000times | Wiring | 2 master:35.3M; 1 master:25.4M |
Packing:
| Size(cm) | Qty | 1 master Weight(kgs) | 2 master Weight(kgs) | |
| Color box | 25*15.5*8 | 1pcs | 1kgs | 1.15kgs |
| Carton | 51.5*41.5*33.5 | 20pcs | 20kgs | 23kgs |
| 20GP container | 7000sets | 7000kgs | 8050kgs |
Strong drawing force central locking system 12V door actuator CF302
