Wuxi Wandeshun Machine Co., Ltd (we are factory)
Wuxi Wandeshun Machine Co., Ltd. one of the leading wire drawing machine manufacturers in China , is specialized in manufacturing wire drawing machines , which was established in 2000.
Our products are popular in many provinces of china and have already been exported to Vietnam , Indonesia, Uzbekistan Kenya, South Africa,Algeria,Egypt, Iran, Turkey and so on.
Excellent geographic location and easy transportation access, only 2k meter from Wuxi airport and adjacent to national highway 312.Welcome friends of all industries to visit and instruct our factory.

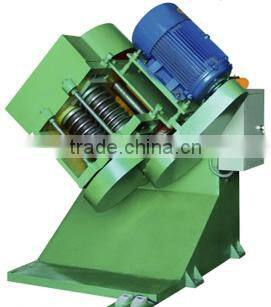

Oscillating Wire Sharpening Machine BZJ series wire pointing machine
Specifications
weight: 1800kg
sharpen dia:25-10mm
Rotary speed of roller:34r/min
Power:7.5kw
Oscillating Sharpening Machine
Our oscillating sharpening machine is developed by ourselves. It is suitable for sharpening of thick and medium specification wire, especially for the sharpening before inverted vertical drawing. The equipment finishes the sharpening via oscillating of roller within ± 45°instead of rotating the material. Easy operation can greatly reduce the labor intensity and improve production efficiency.
Main Specification
| Item | unit | 32A | 25A | 25B |
| Lenghth of roller | mm | 340 | 320 | 320 |
| Roller diameter | mm | 150 | 150 | 150 |
| No. of grooves | piece | 8 | 10 | 12 |
| Rotary speed of roller | r/min | 34 | 34 | 34 |
| Diameter of sharpening | mm | 32-16 | 25-10 | 14-6 |
| Power | kw | 15 | 7.5 | 7.5 |
| Dimension | mm | 1200*1100*1600 | 1050*1100*1600 | 1050*1100*1600 |
| Weight | kg | about 2200 | about 1800 | about 1800 |
Successful experience / Markets
Be up to the international level. Our lines and related complete equipment have been exported to Southeast Asia, West Asia, Eastern Europe, South America, the Middle East, Russia, India, Indonesia, Morocco, South Africa, Algeria, etc
Send Inquiry to This Supplier
