8mm copper rod making machine

Specifications

copper rod input diameter:8mm,
output diameter: 1.78mm-3.30mm
annealing: continuous annealing
Brand Name: WDS

Specifications

8mm copper rod making machine
inlet size:8mm copper rod, outlet: 3mm copper wire
max drawing speed:500meters
take up:coiler

400/9D 8mm copper rod drawing machine with drop coiler

Application:

Mainly used to process COPPER rod(Inletφ8.0mm).

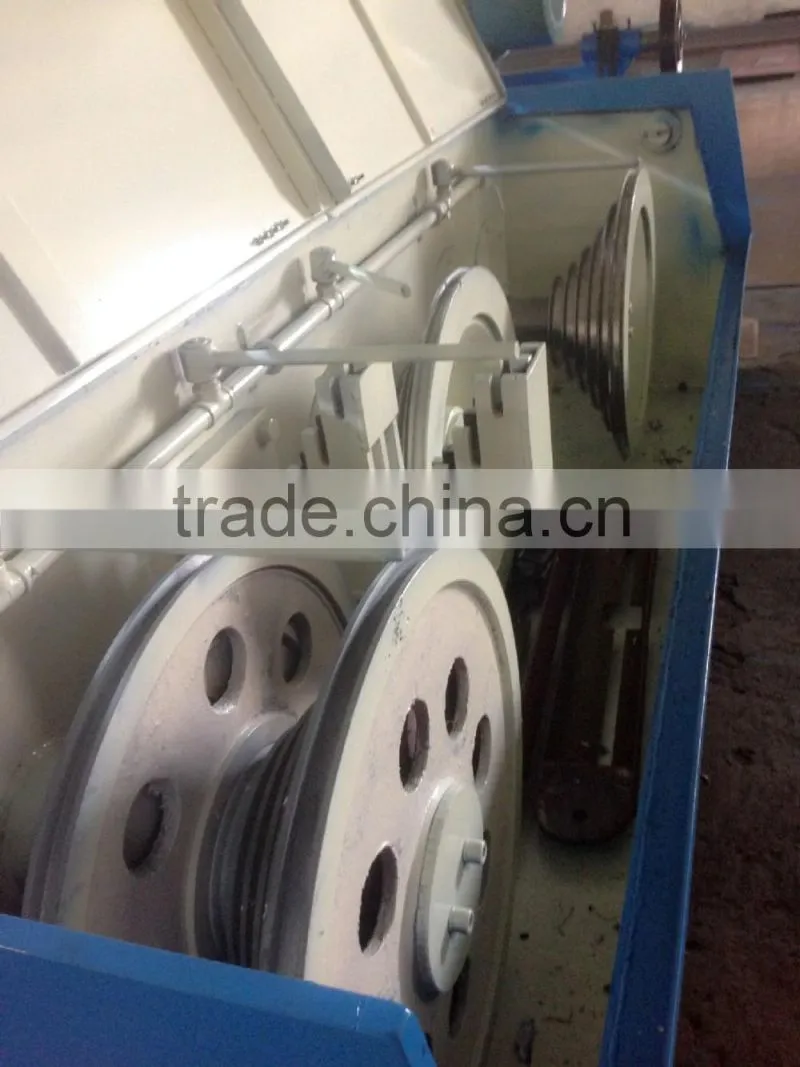

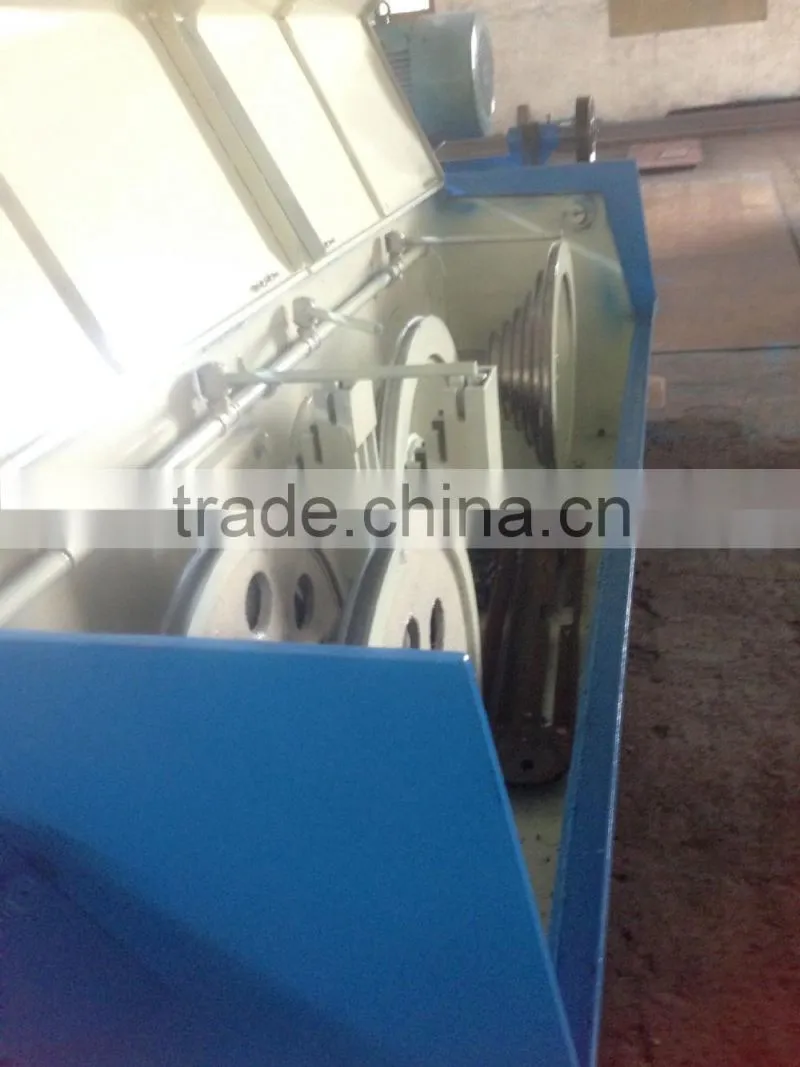

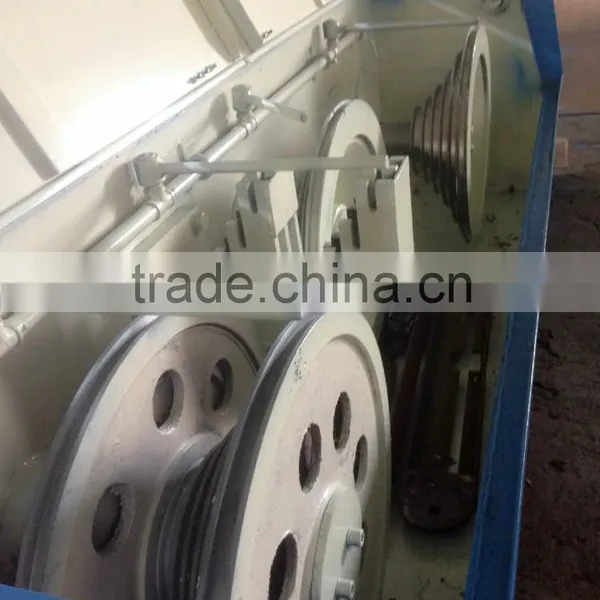

WDS-LT-11-450/9 die copper rod breakdown machine draws φ8mm copper rod into φ2.2mm-φ3.5mm Drawing capstans adopts two groups type arrangement,continuous drawing,mechanism and electric speed match balancely.



I.Main technical parameters:

1-max inlet size: φ8.0mm(copper)

2-outlet size: φ2.2-3.5mm

3-max drawing speed:500m/min

4-drawing cone diameter: φ400mm

5-drawing pass:9

6-cone speed ratio: 1.25

7-main motor:three phase AC 110kw--6P ,Wan Nan motor,China classical brand

8-vertical coiller m/c motor:AC 15KW ,Wan Nan motor,China classical brand

9-die size: φ45mm*25mm(thickness)

10-machine noise: ≤85db



Machine Compositions:

1-Pay off                                               1set

2.-wire pointer                                      1set

3-main drawing machine                  1set

4-Vertical type tension wire accumulator controller         1set

5-750coiler machine                                    1set

6-electric control system                      1set

7-operation panel                                  1set
