Pulley Wire Drawing Machine

Pulley Wire Drawing Machine photo-1
US$ 1,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
WDS
Model Number:
LW-7/450
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin China
Brand Name WDS
Model Number LW-7/450
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Place of Origin: Jiangsu, China (Mainland)
Brand Name:WSD
Model Number: LW-7/450
MACHINE: GROUP WORKING .

 Specifications



Vertical type
Max dia:3.4mm
Min dia:1mm
Continure wire drawing

Structure:

The equipment consists of main reduction box,die casing,wheel frame,sash brace and

electrical control system.The spinning drawing blocks are driven by JZT series motor,with gear coupling runs changeful gears to reduce speed. The drawing blocks are verticaly fixed in sealed box body.The gear pair are lubricated with oil.



Usage:

The set of the machines is an ideal equipment for drawing wire stock of high,medium and carbon steel,as well as coper,alumium and alloy.The machine are applied for drawing wire in the factories,such as wire-steel factor,metal mesh factory and nail making factory etc.



In order to lower residual heat on the surface of the block, the cooling means is installed in inter-wall of the block,the wortle is soaked in cooling water to reduce its working temperature.



The machine runs with carvel or linkage. The safety halt gear is installed by the position of operating block.

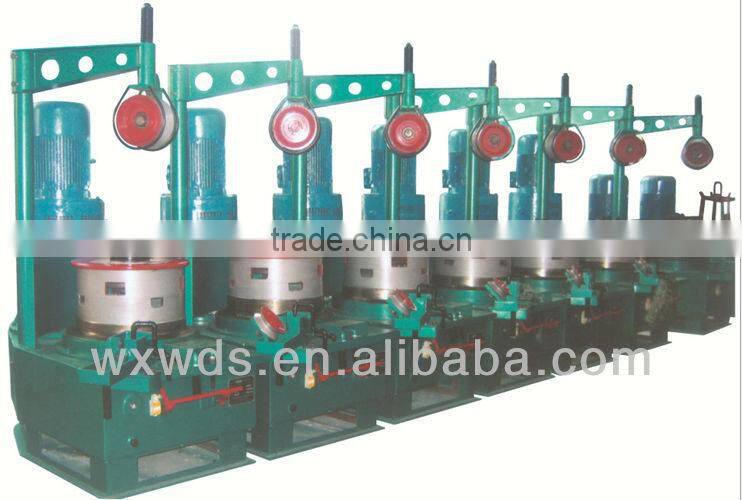

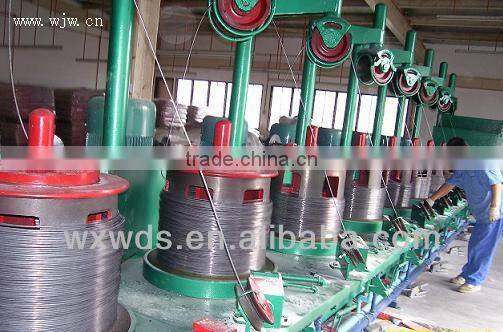

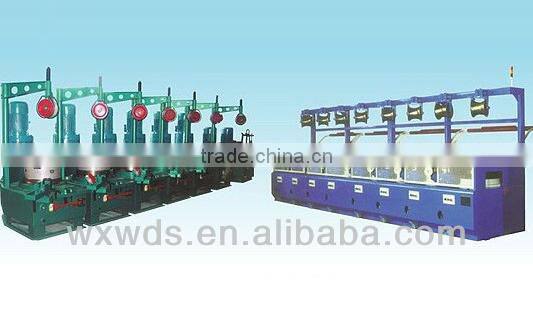

Pulley Wire drawing machinePulley Wire drawing machinePulley Wire drawing machine



ModelLW-1-7/450
Material intensity128kg/mm2
Max diam of material3.4mm
Min diam of material1mm
Diam of block1-7/450
Max average condensation20%
Total condensation77.90%
Max.speed of block346.9m/min
Total power7.5-11kw
Weight1500kg
Overal size1520x810x1700mm
