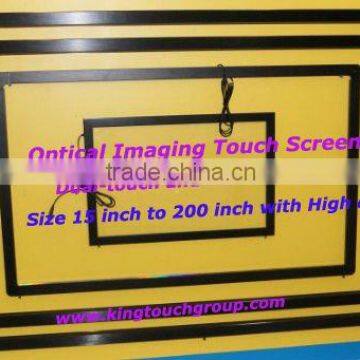

200" Multi-touch Optical imaging CCD touch panel

Specifications

Optical Touch Screen
1. Dual-touch and multi-touch
2. Accuracy Touch Position
3. Rapid Touch response with on time delay

KingTouch Technology Group Limited (Who including Xiamen KingTouch Technology Co., Ltd) founded in 2003 and located in Shenzhen, China is a touch technology-leading Group company which focus on developing, manufacturing touch products and touch solutions of human machine user interface, Such as: infrared(IR) Single-touch, Dual-touch and Multi touch Overlay, 4 Wire and 5 Wire Resistive touch screen,Surface Acoustic Wave (SAW) touch screen, Interactive touch foil film through glass, Projected and Surface Capacitive touch screen, Optical touch screen, Touch LCD Monitor, Touch Kiosk, and Multi-touch LCD Monitor and Advertisement POS, Etc. So KingTouchGroup’s touch products had been widely used in Office Computor, Industrial equipment, Game Machine, Kiosk, POS, Automotive system, Medical equipments, Handheld GPS, Tablet PC, 4S Shop, Bus station, Metro, Digital signage AD, Hotels, Museums Library and Entertainment KTV, Etc.



Optical imaging touch screen support windows 7 multi touch, can zoom in or out, rotating, two points and multi-touch combination





Features:

1. Dual-touch and Multi-touch, No touch limited
2. Aluminium alloy frame

3. Water-proof and dust-proof
4. Accuracy Touch Position Rapid touch response with no time delay
5. High clarity of image and Optical CCD technology
6. Easy installation with modular design and disassemble ability
7. Various applications for display devices
8. All-in-one or overlay choices meets customer requirements

9.  Any sizes from 15 inch to 200 inch can be customized it

Typical Applications:
1. Interactive whiteboard
2. Projection with projector
3. Government AD
4. School, Office and Hospital
5. Interactive Touch Mall kiosks
6. Hotel entertainment center
7. Conferences and EXPO
8. Directories and Way finding



Specifications: (Optical touch screen,Optical touch panel,Optical Imaging touch screen, Optical Imaging touch panel,Optical imaging CCD touch screen, Optical touch frame, optical touch overlay. Optical touch bezel )

Size:
General Size	18.5" to 103"
Customized Size	15" to 200"
Mechanical:
Response time	<16ms
Minimum Touch Object	Stylus minimum diameter 2mm
Input Method	Finger, gloved hand, or any other pointer
Touch durability	Unlimited
Sampling rate	180ppi/s
Touch Activation Force	No pressure required
Surface Durability	Surface durability is that of glass, Vickers-hardness 5.0 – 7.0 GN/m2
Characteristics
Touch accuracy	±2mm (for 40" touch screen) over 90% of the touch sensitive area
Resolution	32768*32768
Response Speed	16ms (two-point and Multi-touch)
Cursor Speed	120 dot/sec
Touch times	unlimited
Touch Intensity	Over 60 millions multi touch
explosive proof	1kg steel ball drop height of 1m, the specimen does not break
Surface hardness	Mohs 7
Linearity error	<5mm
scanning speed	50scans/s
Light Transmission	Up to 100% (no glass), AR glass 92%, Tempered glass 88%
Electrical
Power Supply	USB
ESD	Per EN 61000-4-2: Level 4. Contact discharge 8KV, air discharge 15KV
Electromagnetic Compatibility	CE, FCC Class B
Interface	USB 2.0(full-speed)
Operating Systems	Windows 7,Windows XP,Windows 2000,Vista,Linux,Mac OS
Life Time	10years
Noise	No
Environmental
Temperature	Operating:-20°C ~70°C
	Storage:-30°C ~80°C
Relative Humidity	Operating:10% to 90% RH(non-condensing)
	Storage:10% to 90% RH(non-condensing)
Water-proof	In strict accordance with IP68 protection
