Flexible 19 Inch Projected Capacitive Touch Panel,Capacitive Multi Touch Screen Panel 10 touch points

FOB Price

USD $10 - $120 / Piece

1 Piece(Min.Order)

Supply Ability 5000 Piece / Pieces per Month
Port shenzhen
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Screen Size	Other, 19 inch
Type	Other, Capacitive, Projected Capacitive Touch Screen	Interface Type	USB
Resolution	Other, 4096 * 4096	Brand Name	KingTouchGroup
Model Number	KTT-PCT19K	Place of Origin	Guangdong, China

Product Description

KingTouch Technology Group Limited

Projected Capacitive Touch Screen(10 touch points)

(PCAP)Capacitive Multi Touch Screen Specification:

KingTouch's projected capacitive touch screen is developed by American expert,used high quality raw material imported from Japan,and the quality control is under the super vision of Taiwanese esperienced technical stuff.The item has long life,high stability,high transmittance,large size,maintenance free features,and is idea for smart phone,trblet PC,Gps

Advantage:

-Capacitive touch technology.

-Highest resolution, sensitive and fast response

-Easy to install with LCD monitor

-Dustproof and Waterproof maintenance free.

-Touch screens can be built in specific dimensions requested by clients in custom orders

-Flexible interaction; waterproof presentation, Gloves touch,10mm glass, replaceable cover glass and anti-interference presentation.

Application:

-Point-of-information kiosks

-Vending and ticket sales

-Electronic catalogs

-Gaming, lottery, and amusement

-Public pay phones

-Multimedia marketing

-Banking/financial transactions

-Industrial control rooms

-Computer-based training

Capacitive Multi Touch Screen Controller

OS	Version	Interfaces
Windows	Windows 8(Need logo submission) Windows 7 Windows Vista, XP/2000 Windows /5.0/6.0/7.0 Windows Embedded Windows XP Tablet PC edition	USB/RS232
Linux	Distribution based on Kernel 2.6.24 and later. (Ubuntu/Linux Mint Debian Fedora Red Hat/CentOS Magaie/Mandriva/Mandrake SUSE/openSUSE	USB/RS232
Linux	Android 2.3 ~ 4.4	USB/RS232
Mac	Mac OS, Mac OS X (PowerPC, Intel CPU)	USB
QNX	QNX RTOS v6.3	USB/RS232

Projected Capacitive Touch Panel Specification

Product model	KTT-PCT15K
Dimensions	15"
Structural	GG
Drive form	COB
Rati	4:3
Lens OD	452.8mm281.4mm1.1mm
Lens VA	412.8mm*233.4mm
Sensor OD	438.8mm267.4mm1.1mm
Thickness	2.4mm
Surface hardness	6H
Transparency	>90%
Operating temperature	-30 °C -- +75 °C
Storage temperature	-40 °C -- +85 °C
Relative Humidity	90% at 60°C
Linearity	1PT:+/-1mm,10PT:+/-2.5mm
Touch life	>300,000,000 times
Max. Resolution	4096 x 4096 (Automatic matching )
Max. Support Points	Max,10 points
Control Type	PCBA control board
Connector Type	USB
Interface to Host/Master	USB, 4 wire, 2.0 Full speed
Supply Voltage	USB 5VDC
Power Consumption	Active Mode:<30mA,Idle Mode:5mA
Oscillator Frequency	12MHz
Response Time	<10ms
Min. Report Rate	10PT: 80Hz
Max. operating frequency	100 MHz
ESD.Air discharge	8KV
ESD.Contact discharge	4KV
Operating system	Windows7/Windows8/Windows XP linux,Android Mac
Adapter ripple	Vpp<50mv

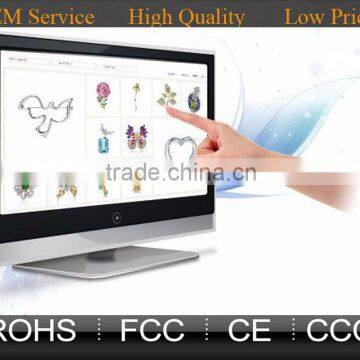

Product Picture

The KingTouch products are available in following categories:
     -IR Touch Screen/IR touch frame     15"~500"  with 2 ,6 ,10, 16, 32 touches can be choose
       -Capacitive Touch Foil,Interactive Touch Foil    17"~110"  with 2,6,10,20 touches can be choose.
       -4 wire 5 wire Resistive touch screen,resistive touch film    7"~22"  Single Touch
       -SAW touch screen/panel     7"~ 42"  Single Touch
       -Projected Capacitive Multi touch screen (PCTP)   10..4"~42"   10 touches

-Surface Capacitive Touch Panel(SCTP) 5.8"~22" Single Touch
-OEM Touch monitor/open frame touch screen monitoe assembly service.

1.Transparent Capacitive Touch Foil 2,6,10,20,40 touch points can be choose

2.Infrared Touch frame 2,6,10,16 32 40 touch points can be choose

3.SAW Touch Scree(welcome to your inquiry)

4.4 wire 5 wire Resistive touch screen / panel(welcome to your inquiry)
