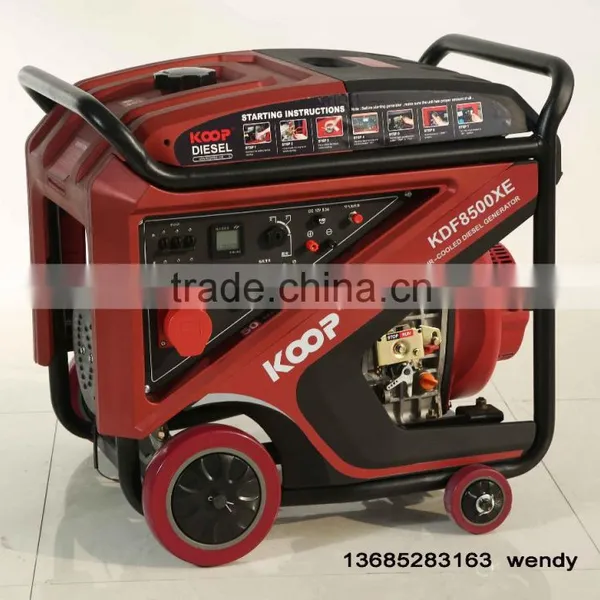

6.5kw dieselgenerator
- 3000 Set / Sets per Month
- shanghai
- T/T
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | KOOP | Model Number: | KDF8500XE |
| Output Type: | AC Single Phase | Speed: | 3000rpm | Frequency: | 50HZ |
| Rated Power: | 6.5kw | Rated Voltage: | 220V | Rated Current: | 29A |
Product Description
Model KDF8500X/XE
Rated frequency (Hz) 50 60
Rated voltage (V) 220, 230, 240, 110/220, 115/230, 120/240 220/380 230/400
Rated output power (KVA) 6.5 7
Max output power (KVA) 7/7.5
Rated rotation speed (rpm) 3000 3600
Power factor cosφ 1/0.8 1/0.8
Phase number Single/Three Single/Three
DC output 12V 8.3A 12V 8.3A
Excitation transistorized Self-excitation, brushless
Structure type Open-frame
Fuel consumption (g/KW.h) 340
Fuel tank capacity (L) 12.5
Continuous running time (hr)(at rated power) 8
Noise level (dBA@7m) (zero load ~ full load) 75-79
Starting system X: recoil starter; XE: electric starter
Fuel type 0# (summer), -10# (winter), -35# (chill cold) diesel oil
Lube CD or better than CD
Engine model X: KD192Fe
XE: KD192FE
Engine type 1-cylinder, 4-stroke, air-cooled, verical, diesel engine
Bore×stroke (mm) 92×75
Displacement (cm³) 0.499
Compression ratio 19:1
Rated power (KW/rpm) 8.2/3600
Optional standard ATS
Remote control
Three phase
Wheel and handle
Net weight (kg) X: 95 XE: 100
Overall dimension (mm)(L×W×H) 740*490*620
