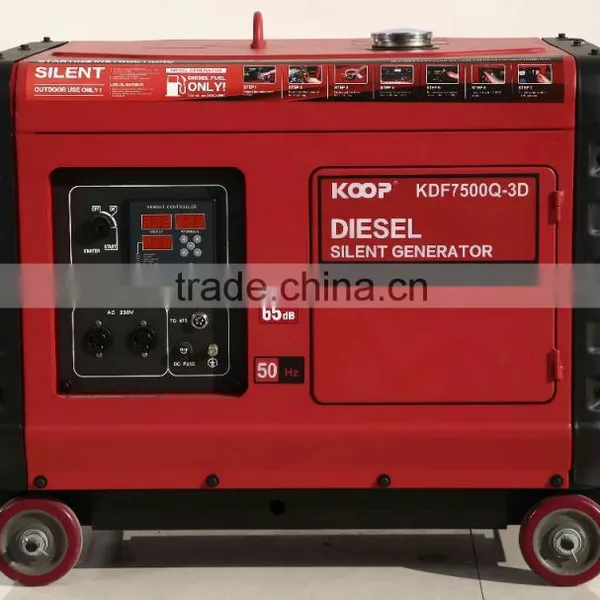

SUPER SILENT GENERATOR
USD $700.00 - $700.00
/ Set
5 Sets(Min.Order)
- 0 per Month
- SHANGHAI
- T/T
You May Like
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | KOOP | Model Number: | KDF6700QQ |
| Output Type: | AC Single Phase | Speed: | 3000/3600rpm | Frequency: | 50/60HZ |
| Rated Power: | 4.2KVA | Rated Voltage: | 220V | Rated Current: | 19.5A |
Product Description
| Model | KDF6700Q | |
| Rated frequency (Hz) | 50 | 60 |
| Rated voltage (V) | 220/ 230 | 120/240 |
| Rated output power (KVA) | 4.5 | 4.6 |
| Rated rotation speed (rpm) | 3000 | 3600 |
| DC output | 12V 8.3A | |
| Power factor cosφ | 1 | |
| Phase number | Single phase/three phase | |
| Excitation mode | Self-excitation Brushless | |
| Noise level dB(A)@7m (zero load - full load) | 63-65 | |
| Overall dimension [mm(in)](L×W×H) | 920×520×700 | |
| 36.22×20.47×27.56 | ||
| Gross weight kg | 165 | |
| Net weight [kg(lbs)] | 155 (310) | |
| Structure model | Low noise type with enclosure | |
| Connection mode | Single bearing, rotor drive shaft, rigid coupling | |
| Engine model | KD186FAE | |
| Engine type | 1-cylinder, 4-stroke, air-cooled, direct injection, diesel engine | |
| Displacement [cm³(Cu-in)] | 418 (25.51) | |
| Compression ratio | 19:01 | |
| Rated power [KW(Hp)/rpm] | 6.3 (8.6)/3600 | |
| Starting system | Electric starting with 30ahbattery | |
| Rotation direction (view from flywheel) | Clockwise | |
| Fuel type | 0# (sumber), 10# (winter) diesel oil | |
| Lube | SAE10W30 (above CC grade) | |
| Low oil pressure alarm system | With | |
| optional | Digital control panel | |
