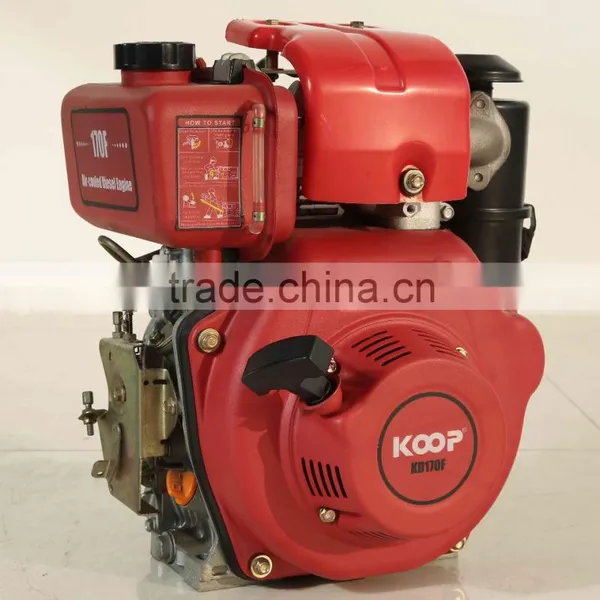

5HP Diesel engine
Negotiable
/ Set
1 Set(Min.Order)
- 0 per Month
- shanghai
- T/T Credit Card
You May Like
Product Details
| Condition: | New | Usage: | Automobile | Fuel: | Diesel |
| Stroke: | 4 Stroke | Cylinder: | Single Cylinder | Cold Style: | Other, Air-cooled |
| Start: | Electric Start | Place of Origin: | Jiangsu, China | Brand Name: | KOOP |
| Model Number: | KD170FE |
Product Description
| Model | KD 178F /FE |
| Type | Vertical, 1-cylinder, 4-stroke, air-cooled |
| Combustion system | Direct injection |
| Bore× stroke [mm(in)] | 78×62 (3.07×2.44) |
| Displacement [L(cc)] | 0.296 (296) |
| Compression ratio | 20:1 |
| Rated power [KW/rpm] | 3.7/3000,4./3600 |
| Rated power [HP/rpm] | 5.0/3000,5.5/3600 |
| Rated speed (rpm) | 3000/3600 |
| Starting system | F: Recoil starter; E: Electric starter |
| Fuel tank capacity [L(US.gal)] | 3.5 (0.92) |
| Lube capacity [L(US.gal)] | 1.1 (0.29) |
| Fuel consumbition [g(ml)/KWh] | 3000rpm: 276 (378) |
| 3600rpm: 285 (391) | |
| Fuel | 0 (summer), -10 (winter) diesel oil |
| Lube | SAE10W30 (above CC grade) |
| Overall dimension [mm(in)](L×W×H) | 400×420×450 (15.75×16.54×17.72) |
| Net weight [kg(lbs)] | Recoil starter type: 33 (72.6) |
| Electric starter type: 38 (83.6) | |
| Rotation direction (view from flywheel) | Clockwise |
