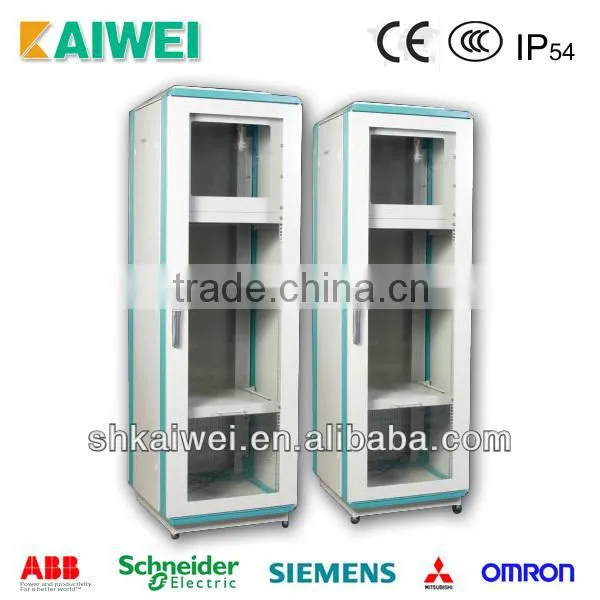

FR industrial control cabinet
USD $273 - $1,075
/ Set
1 Set(Min.Order)
- 10000 Set / Sets per Month
- SHANGHAI
- T/T
You May Like
Product Details
| Place of Origin: | Shanghai, China | Brand Name: | KAIWEI | Model Number: | FR608040005 |
| Protection Level: | IP54 | Type: | Network Cabinet | External Size: | 600mm*800mm*400mm |
Product Description
Specifications
FR industrial control cabinet1. Optional high performance caster system
2. Embodying humanized design
Product Description
FR industrial control cabinet
1. Material: Cold Rolled Steel Sheet and Aluminum Alloy Section
2. Surface Treatment: Etch Primer for Cabinet Body,Powder Coating for Outside,Texture Optional as RAL7032 or RAL7035,The Color of Decoration Strip is RAL5018.The Color of Laminated Plate is The Same as Cabinet Body.
3. Class of Protection: IP54(According to GB4205-1993)
| Item Name: | FR industrial control cabinet | |||||||
| Material: | Cold Rolled Steel Sheet and Aluminum Alloy Section | |||||||
| Thickness: | Frame:Aluminum Alloy Section Door Plate:2.0mm Glass: 5mm Toughened Safety Glass Side Plate:1.5mm Uplight Column:Aluminum Alloy Section | |||||||
| Standard Configuration: | Frame,Front Glass Door,Back Door with Ventilating Slot, 19 inch(482.6mm),Frame(with 4 uplight colimns),Side Plate Casters(Optional),and Laminated Plate(Optional) | |||||||
| Surface Treatment: | Etch Primer for Cabinet Body,Powder Coating for Outside,The color is RAL7035,The Color of Frame is RAL5018.The Color of Laminated Plate is The Same as Cabinet Body. | |||||||
| Class of Protection: | IP54(According to GB4205-1993) | |||||||
| MOQ: | 100 PCS | |||||||
| Supply Ability: | 10000 PCS/Month | |||||||
| Delivery Time: | 10-15 days | |||||||
| Remark: | Special Demands Can Be Customized | |||||||
No. | Order No.(RAL7035) | Width | Height | Depth |
| 1 | FR608040005 | 600 | 800 | 400 |
| 2 | FR608050005 | 600 | 800 | 500 |
| 3 | FR608060005 | 600 | 800 | 600 |
| 4 | FR601050005 | 600 | 1000 | 500 |
| 5 | FR601060005 | 600 | 1000 | 600 |
| 6 | FR601070005 | 600 | 1000 | 700 |
| 7 | FR601080005 | 600 | 1000 | 800 |
| 8 | FR601260005 | 600 | 1200 | 600 |
| 9 | FR601270005 | 600 | 1200 | 700 |
| 10 | FR601280005 | 600 | 1200 | 800 |
| 11 | FR801260005 | 800 | 1200 | 600 |
| 12 | FR601460005 | 600 | 1400 | 600 |
| 13 | FR601470005 | 600 | 1400 | 700 |
| 14 | FR601480005 | 600 | 1400 | 800 |
| 15 | FR801460005 | 800 | 1400 | 600 |
| 16 | FR601660005 | 600 | 1600 | 600 |
| 17 | FR601680005 | 600 | 1600 | 800 |
| 18 | FR801660005 | 800 | 1600 | 600 |
| 19 | FR801680005 | 800 | 1600 | 800 |
| 20 | FR601860005 | 600 | 1800 | 600 |
| 21 | FR601880005 | 600 | 1800 | 800 |
| 22 | FR801860005 | 800 | 1800 | 600 |
| 23 | FR801880005 | 800 | 1800 | 800 |
| 24 | FR602060005 | 600 | 2000 | 600 |
| 25 | FR602080005 | 600 | 2000 | 800 |
| 26 | FR802060005 | 800 | 2000 | 600 |
| 27 | FR802080005 | 800 | 2000 | 800 |
| 28 | FR602260005 | 600 | 2200 | 600 |
| 29 | FR602280005 | 600 | 2200 | 800 |
| 30 | FR802260005 | 800 | 2200 | 600 |
| 31 | FR802280005 | 800 | 2200 | 800 |
Details:
Main advantage of FR industrial control cabinet :
- The arrangement of aluminum alloy frame in RAL5018 color along with the cabinet body in RAL7035 color embodies elegant and luxury character of the cabinet.
- The 19 inch frame capable of containing a wide variety of accessories and internal installation parts meet installation requirements by various customers.
- Optional high performance caster system meets demands of customers for mobility on the site.
- The front glass door is arranged with a luxury crank lock and the back access door arranged with a standard flat lock, reasonably embodying humanized design of the cabinet body.
