Home > Products > Industry controller PCBA > welding machine electronic circuits, welding machine PCBA

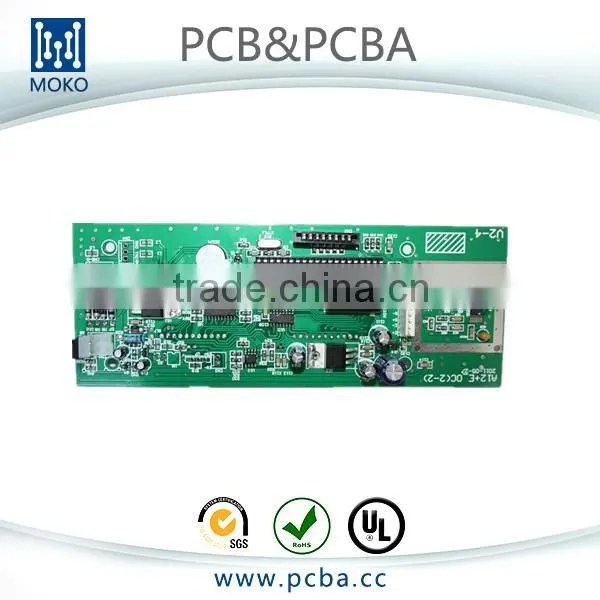

welding machine electronic circuits, welding machine PCBA
- 1000 Square Meter / Square Meters per Month
- Shenzhen/Hongkong
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | MOKO | |
| Model Number | MK50611BZ05B | Number of Layers | 4-Layer | |
| Base Material | FR4 | Copper Thickness | 1.0oz | |
| Board Thickness | 1.6mm | Min. Hole Size | 0.2mm | |
| Min. Line Width | 0.1mm | Min. Line Spacing | 0.1mm | |
| Surface Finishing | HASL |
inner package: plastic ESD bags
outer package : 4 small cartons in a large carton
Product Description
Welcome to MOKO!
MOKO TECHNOLOGY LTD founded in the year 2001,located in shenzhen,China.we are a professional EMS/OEM company;provide one-stop contract electronic manufacturing service for PCB&PCBA.
We have got the ISO9001:2008, ISO14001, and UL RoHS CE certifications.
For assembly,utilizing 8 high-speed SMT lines from Yamaha and 4 DIP lines to meet customers' need.
Another,we are 6 years alibaba gold supplier and 230,000 USD Trade Assurance Supplier to guarantee your benefit.
Our service including:
1.Fast PCB fabrication of samples and mass production;Available on FR4 and Aluminum.
2.Electronic components purchasing service.
3.PCB Assembly service:available on SMT,BGA,DIP.
4.PCBA Test service
5.Stencil and Enclosure service
Products application:
-Household appliance
-Medical products
-Automotive products
-Industrial products
-Consumer electronics
welding machine electronic circuits, welding machine PCBA
PCB Technical Capabilities
Layer | 1,2,4 or 6,upto 12 layers |
Material | FR4,CEM1,CEM3,Hight TG,FR4 Halogen Free,FR1,FR2,94v0 |
Order Quantity | 1-500,000 |
Board shape | Rectangular,round,slots,cutouts,complex,irregular |
Board type | Rigid,flexible,rigid-flexible |
Board material | FR-4,glass epoxy,FR4 High Tg,Rohs compliant,Aluminum,Rogers,etc |
Board cutting | Shear,V-score,tab-routed |
Board thickness | 0.2~4.0mm,Flex 0.01~0.25'' |
Copper weight | 1.0,1.5,2.0oz |
Solder mask | Double-sided green LPI,Also support red,white,yellow,blue,black |
Silk screen | Double-sided or single-sided in white,yellow,black,or negative |
Silk screen min line width | 0.006'' or 0.15mm |
Max board dimensions | 20inch*20inch or 500mm*500mm |
Min drill hole diameter | 0.01'',0.25mm.or 10 mils |
Surface finish | HASL,Nickle,Imm Gold(ENIG),Imm Tin,Imm Silver,OSP etc |
Board thickness tolerance | ± 10% |
Copper weight tolerance | ± 0.25oz |
Minimal slot width | 0.12'',3.0mm,or 120mils |
V-score depth | 20-25% of board thickness |
Plated through holes | Yes |
Sink holes | Yes |
Design file format | Gerber RS-274X,274D,Eagle and AutoCAD'S DXF,DWG |
Detailed terms for PCB assembly:
o Technical requirement:
§ Professional surface-mounting and through-hole soldering technology
§ Various sizes like 1206, 0805, 0603 components SMT technology
§ ICT (In Circuit Test), FCT (Functional Circuit Test) technology
§ PCB assembly with UL, CE, FCC, RoHS approval
§ Nitrogen gas reflow soldering technology for SMT
§ High standard SMT and solder assembly line
§ High density interconnected board placement technology capacity
o Quote requirement:
§ Gerber file and Bom list
§ Clear pics of pcba or pcba sample for us
§ Test method for PCBA
Sample show
Why us?
Quality
Our UL/Rohs standards insure quality assemblies from start to finish. Whether it's a simple custom
product or a complex turnkey production run, Moko will adhere to the highest quality standards.
--------------------------------------------------------------------------------
Capable
Moko offers the latest in assembly capabilities and qualifications insuring that quality is built
into every product we produce.
--------------------------------------------------------------------------------
Experience
When it comes to your build you want a partner you can depend on. Our management team has over
10years of combined industry knowledge. Our engineering team has over 7 years experience.
--------------------------------------------------------------------------------
Protecting your interests
Protecting your Intellectual Property is job one! Our staff of trained professionals are all working
under a strict confidentiality contract and treat your important documentation as they would their
own.
--------------------------------------------------------------------------------
Flexibility
We pride ourselves on our ability to custom tailor programs around our customers' needs. We take time
to listen to your unique business needs and then set out to surpass them.
Any requirements,please inquire me now !
Best Regards,
Rosina Zeng
Sales Engineer
MOKO TECHNOLOGY LTD
Cell :86-13066872368
Skype: Moko-Rosina
Rosina(at)
Company Profile
MOKO TECHNOLOGY LTD is an expert at PCB and PCBA manufacture, based in Shenzhen, Guangdong, China. We are specialized in manufacturing Single-Sided Boards, Double-Sided Boards and multilayer PCB. We are honored as the excellent supplier of many companies all around this world. We can offer all kinds of services including PCB and PCB assembly sample orders and batch orders. We have got the ISO9001:2000, ISO14001, and UL RoHS certifications. Now our PCB daily capacity reaches 1000 square meters, and PCB assembly can reach 100,000,000 units per month. We deeply believe that our good service and experience will completely meet you need. Integrity, value and innovation are the forces that drive our success. We are the smart choice for you and the trusted source at the center of your deal. Welcome the win-win situation together.
