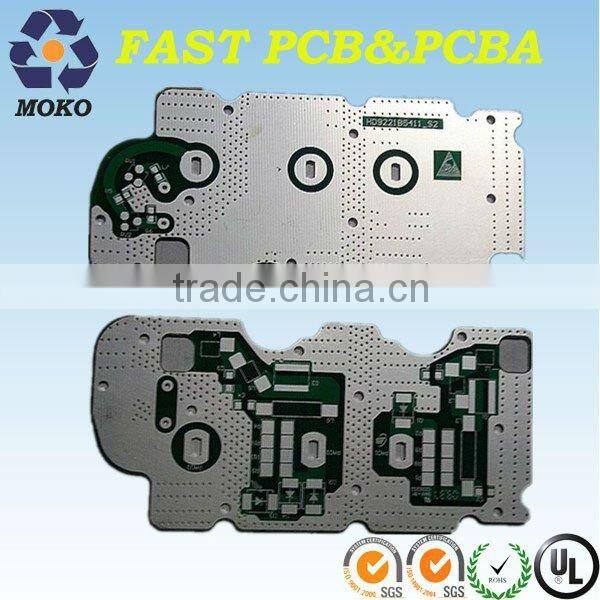

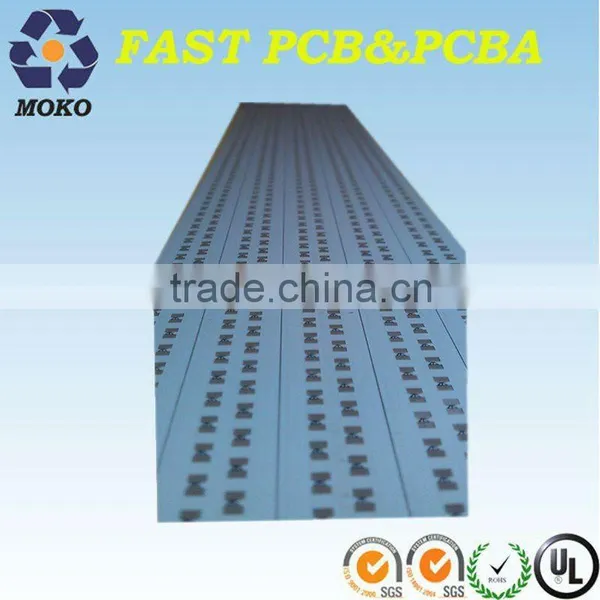

2oz Copper White useful Aluminium LED PCB OEM

Inner packing :Vacuum Package Outer packing:Standard Carton---Finished boards
are vacuum packed with bubble wraps and silica gel to prevent oxidization and damage during transportation.All the PCB will be checked before shipping.

Specifications

1.2oz copper white useful aluminium led pcb oem
2. pcb clone and pcba
3.1-12 layers
4. UL,SGS,ROHS,CE,ISO9001
5. MOQ:1pcs

Welcome to MOKO pcb and pcba manufacturer!!!

-----------------------------------------------------------------------------

Moko, your single point of contact for all of your raw materials, parts, and pcb assembly, also offers:



- Contract Manufacturing
- Engineering Services
- PCB Design & Assembly
- Product Design
- Prototyping
- Cable and Wire Assemblies
- Plastics and Molds

-----------------------------------------------------------------------------

 PCB Fabrication



Supply single pcb,Multi-layer FR4 PCB's,MCPCB(Aluminum PCB),FPC,PCBs with UL ROHS Certificate Low

volume,Prototype and mass fabrication are welcome.



Layer	1,2,4 or 6,upto 12 layers
Material	FR4,CEM1,CEM3,Hight TG,FR4 Halogen Free,FR1,FR2
Order Quantity	1-500,000
Board shape	Rectangular,round,slots,cutouts,complex,irregular
Board type	Rigid,flexible,rigid-flexible
Board material	FR-4,glass epoxy,FR4 High Tg,Rohs compliant,Aluminum,Rogers,etc
Board cutting	Shear,V-score,tab-routed
Board thickness	0.2~4.0mm,Flex 0.01~0.25''
Copper weight	1.0,1.5,2.0oz
Solder mask	Double-sided green LPI,Also support red,white,yellow,blue,black
Silk screen	Double-sided or single-sided in white,yellow,black,or negative
Silk screen min line width	0.006'' or 0.15mm
Max board dimensions	20inch*20inch or 500mm*500mm
Min drill hole diameter	0.01'',0.25mm.or 10 mils
Surface finish	HASL,Nickle,Imm Gold,Imm Tin,Imm Silver,OSP etc
Board thickness tolerance	± 10%
Copper weight tolerance	± 0.25oz
Minimal slot width	0.12'',3.0mm,or 120mils
V-score depth	20-25% of board thickness
Plated through holes	Yes
Sink holes	Yes
Design file format	Gerber RS-274X,274D,Eagle and AutoCAD'S DXF,DWG



-----------------------------------------------------------------------------







Our Superiority



1.High efficiency&Experience



Moko can provide one stop service.Established in 2001, with many years hard-working and constant innovation,we have grown

up into a professional PCB&PCBA manufacturer. We have our own independent research and development and sophisticated quality control system



--------------------------------------------------------------------------------



2.Quality



Our product are manufactured according to the UL/Rohs standards to insure quality assemblies from start to finish. Whether it's a simple custom or not.Product or a complex turnkey production run, We will adhere to the highest quality standards.



--------------------------------------------------------------------------------



3.Protecting your interests
Protecting your Intellectual Property is job one! Our staff of trained professionals are all working under a strict confidentiality contract and treat your important documentation as they would their own.



--------------------------------------------------------------------------------



4.Service



We can provide 24hours service for you. We pride ourselves on our ability to custom tailor programs
