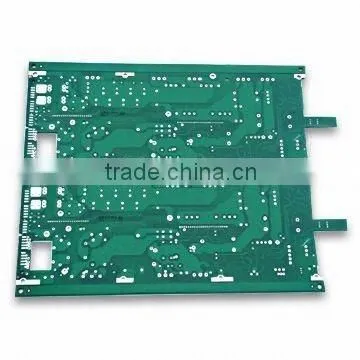

14-layer PCB assembled with 0.25mm Diameter and ENIG Surface Finish

FOB Price

USD $10 - $10,000 / Piece

10 Pieces(Min.Order)

Supply Ability 50000 Square Meter / Square Meters per Month
Port Shenzhen
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Guangdong, China	Brand Name:	Moko, Moko	Model Number:	MK-PCB072780
Number of Layers:	6-Layer	Base Material:	FR-4	Copper Thickness:	1oz, 1oz
Board Thickness:	1.6mm	Min. Hole Size:	0.4mm	Min. Line Width:	3mil, 4mil
Min. Line Spacing:	3mil, 4mil	Surface Finishing:	Hasl Immersion gold, hasl

Packaging Details

Inner packing :Vacuum plastic packaging
Outer packing : standard carton packaging

Product Description

pcb assembled

No.	items	Spec
1	Layers	1 to 24 layer
2	Max working panel area	457 x 610 mm
3	Min board thickness	4 layer: 0.40mm
		6 layer: 0.80mm
		8 layer: 1.00mm
		10 layer: 1.20mm
4	Min trace width	0.10mm
5	Min spacing	0.10mm
6	Min hole diameter	0.20mm
7	Min Copper thickness in hole	0.020mm
8	PTH size tolerance	±0.05mm
9	NPTH size tolerance	±0.025mm
10	Hole position tolerance	±0.05mm
11	Dimension tolerance	±0.1mm
12	Min solder mask dam	0.08mm
13	Insulation resistance	1E+12 Omega(normal condition)
14	Max Board thickness/Hole size Rate	10 : 1
15	Thermal shock endurance	288 3 times in 10sec
16	Max Board twist and wrap	≤0.7%
17	High Vlotage endurance	1.3KV/mm
18	Copper foil peel off endurance	1.4N/mm
19	Hardness of resist ink	≥6H
20	Flame resistance	94V-0
21	Impedance control	±5%
22	Certificate	ISO 9001:2000;ISO14001;ISO/TS16949:2002 UL E203640
