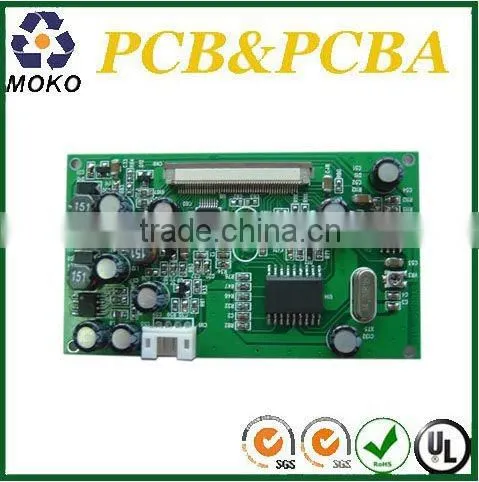

medical .traffic.industrial .sound .home alarm systems pcba supplier

Anti-static package with high quality carton box

Specifications

1.Electronic pcb assembly
2.UL,SGS,ROHS Certificated
3.Pcba test via AOI,X-ray
4.FOB price

Welcome To Moko

Moko, your single point of contact for all of your raw materials, parts, and PCB assembly, also offers:

- Contract Manufacturing

- Engineering Services

- PCB Design & Assembly

- Product Design

- Prototyping

- Cable and Wire Assemblies

- Plastics and Molds

1.Detailed Specification of PCB Manufacturing

1	layer	1-18 layer
2	Material	FR-4,CEM-1,CEM-3,High TG,FR4 Halogen Free,FR-1,FR-2
3	Board thickness	0.2mm-4mm
4	Max.finished board side	800*508mm
5	Min.drilled hole size	0.25mm
6	min.line width	0.075mm(3mil)
7	min.line spacing	0.075mm(3mil)
8	Surface finish/treatment	HALS/HALS lead free,Chemical tin,Chemical Gold, Immersion gold Immersion Silver/Gold,Osp,Gold Plating
9	Copper thickness	0.5-4.0oz
10	Solder mask color	green/black/white/red/blue/yellow
11	Inner packing	Vacuum packing,Plastic bag
12	Outer packing	standard carton packing
13	Hole tolerance	PTH:±0.076,NTPH:±0.05
14	Certificate	UL,ISO9001,ISO14001,ROHS,CQC
15	profiling punching	Routing,V-CUT,Beveling
16. providing OEM service to all sorts of printed circuit board assembly

2.Detailed Terms for Pcb Assembly

Technical requirement:

1) Professional Surface-mounting and Through-hole soldering Technology

2) Various sizes like 1206,0805,0603 components SMT technology

3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.

4) PCB Assembly With UL,CE,FCC,Rohs Approval

5) Nitrogen gas reflow soldering technology for SMT.

6) High Standard SMT&Solder Assembly Line

7) High density interconnected board placement technology capacity.

Quote requirement:

· Gerber file of the bare PCB board

· BOM (Bill of material) for assembly

· To short the lead time, please kindly advise us if there is any acceptable components substitution.

· Testing Guide & Test Fixtures if necessary

· Programming files & Programming tool if necessary

· Schematic if necessary

OEM/ODM/EMS Services for PCBA:

· PCBA, PCB assembly: SMT & PTH & BGA

· PCBA and enclosure design

· Components sourcing and purchasing

· Quick prototyping

· Plastic injection molding

· Metal sheet stamping

· Final assembly

· Test: AOI, In-Circuit Test (ICT), Functional Test (FCT)

· Custom clearance for material importing and product exporting

Orientronic PCB assembly Equipment:

· SMT Machine: SIEMENS SIPLACE D1/D2 / SIEMENS SIPLACE S20/F4

· Reflow Oven: FolunGwin FL-RX860

· Wave Soldering Machine: FolunGwin ADS300

· Automated Optical Inspection (AOI): Aleader ALD-H-350B

· Fully Automatic SMT Stencil Printer: FolunGwin Win-5



3.Order Process



4.View of MOKO Factory

1)ROHS SMT WORKSHOP

2)High Standard Through-Hole Slodring Workshop



3)Good After Testing Service
