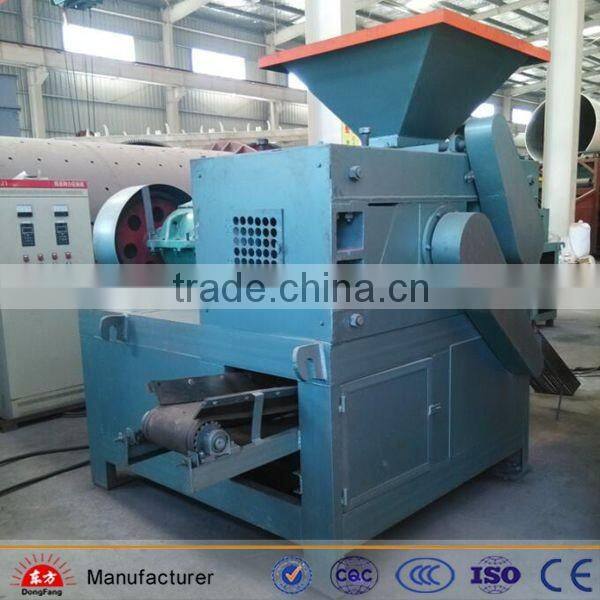

Type ZKBM290 Coal Briquette Machine/ Nickel Briquette Machine/ Nickel Powder Briquette Machine

Type ZKBM290 coal briquette machine/ nickel briquette machine/ nickel powder briquette machine

Intrduction of nickel briquette machine:

Briquette making machine(nickel briquette machine) can be used to press various powders such as coal powder, iron powder, coking coal, slag, oxidation iron sheet, carbon dust, gypsum, tailings, sludge, kaolin, active carbon and burnt powder, etc.

Briquette machine applies to the industries such as refractory material, electric powder plant, metallurgy, chemical industry, energy, transportation, heating and other industries.

Raw materials of nickel briquette machine:

Coal and charcoal powder, zinc oxide, lead oxide, calcium chloride, calcium phosphate.

High test bleaching powder, cryolite, chemical inhibitor, silica, Isophthalodinitrile etc.

Features of nickel briquette machine:

1. Small occupation;

2. High briquetting ratio and energy saving;

3. Simple installation and operation;

4. Easy maintenance;

Working Principle of nickel briquette machine:

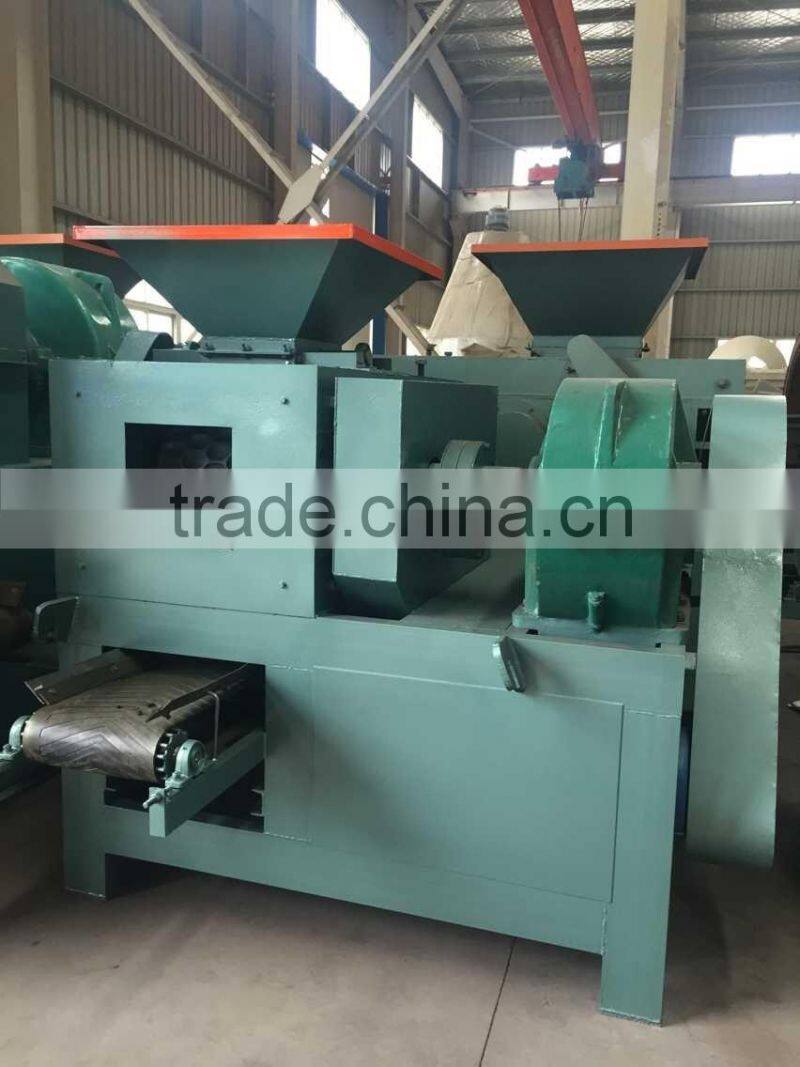

Pressure ball machine is powered by electromagnetic spped motor, then via V-belt pulley, reducer and coupling transmit to main shaft. There is also a pair of open gear ensure two roller shaft synchronous movement, in which the wedges withstand the passive bearings. The material is sent into the hopper uniformly by quantitative feeding equipment, and then evenly into the middle of the roller. Then the roller does reverse constant velocity and make the ball into off running state. When the ball material go through the roller center line, the ball drops down.

Technical Parameters of nickel briquette machine:

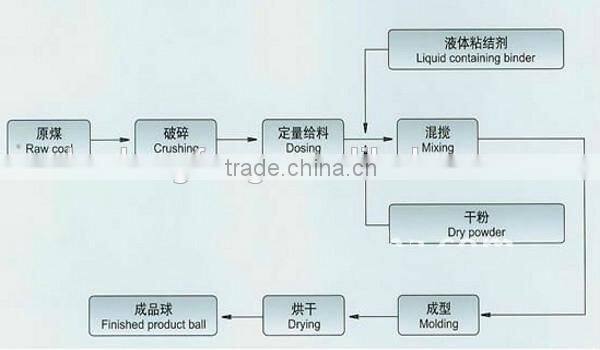

Operation of nickel briquette machine:

1. If your raw material is big block, you should choose a crusher.

2. If your raw material is with high moisture (higher than 12%), you should choose

 a dryer. If you prefer to use dry powder type briquette machine, the moisture should

be less than 5%, also based on materials’ performance.

3. Generally, it is better to add some binder/adhesive into the raw material. If you pre

-fer to use dry powder type briquette machines, generally, no need binder.

4. About belt conveyor, you can buy from us, also can make by yourself. We would

like to supply the detail drawing of conveyor for you.

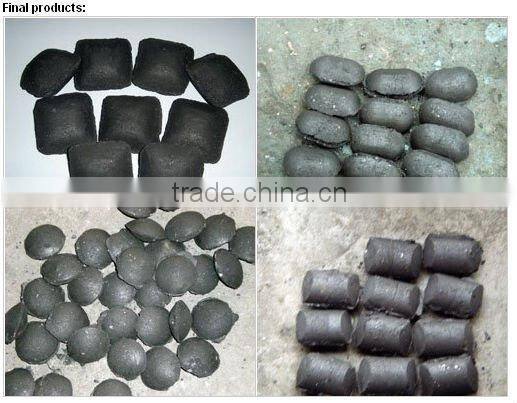

5. The final briquettes can be dried under the sun or through mesh belt dryer and chain

plate dryer.

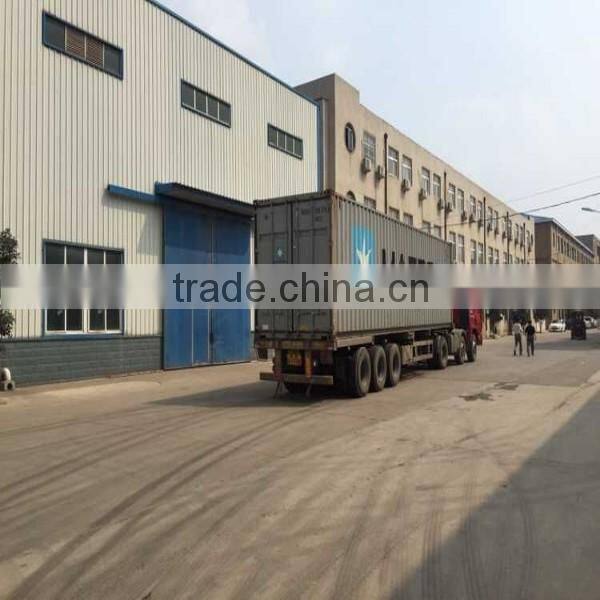

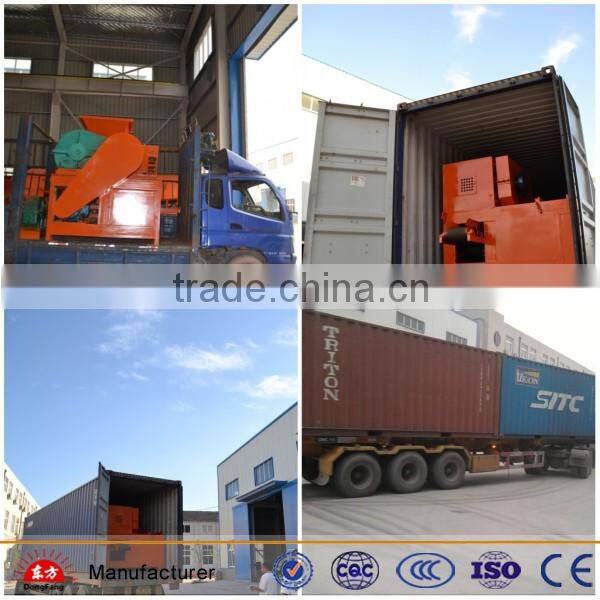

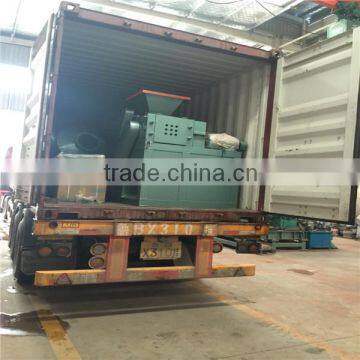

Delivery Pictures :

About Our Company:

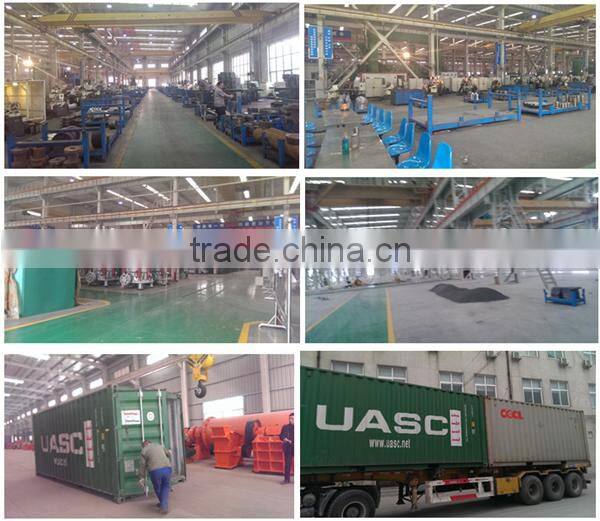

Henan Dongfang Group is a manufacturing factory with rich experiences more than 20 years. It covers more than 60,000 square meters,180 sets of main processing equipments,more than 1,000 employees. Our factory is specialized in many kinds of machines, such as briquetting machine, crusher machine, Ball mill, pellet machine,dryer machine equipments, heating sources and so on.

Our products are selling to many countires like Amercia, Colombia, Sri Lanka, Russia, Pakistan, Nigeria, Saudi ect. and get a very good reputation.

Choosing us is your best choice!

In order to saving your time, please send us the informations as bellow:

1. What's the raw material?

2. The moisture and size of raw material?

3. Capacity you need?

4. The shape and size of the final product you prefer?

Contact Us:

If you want to know more about us and our briquette machine,please contact us,and we'll

be very glad to serve you!

HENAN DONGFANG MACHINERY Co., Ltd.

Skype: dfmachine01

website:  http://hndongfang.en.china.cn/

Welcome to visit our factory~
