XL6230 universal metal milling machines price

FOB Price

USD $5,000 - $8,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Condition:	New	Place of Origin:	Shandong, China	Brand Name:	YOURONGXILI
Model Number:	XL6230	Type:	Universal	CNC or Not:	Normal
Voltage:	380v	Power(W):	3KW	Dimension(LWH):	173017601700
Weight:	1350	Certification:	ISO CE	Warranty:	12 MONTHS
After-sales Service Provided:	Engineers available to service machinery overseas

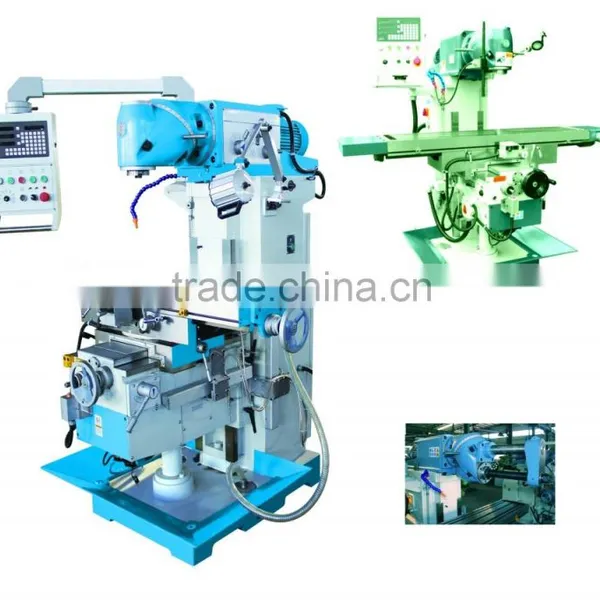

XL6230 Universal Milling Machine with digital readout

Product Description

1. Easy to operate control panel with digital readout via swiveling arm

2. Tiltling and swiveling milling head with chuck guard

3. Control panel pivoting to the left and the right of the machine

4. Cross table manually adjustable

5. Large dimensioned handwheels for fine scale adjustment

6. Control panel for 11 spindle speeds

Specifications	Unit	XL6230	XL6230A	XL6230B	XL6230C
Table size	mm	1270*300	1370*300	1270*300	1370*300
T-slots(NO./width/pitch)	mm	31480
Max table travel - X/Y/Z	mm	720/300/400	820/300/400	900/380/400	1000/380/400
Spindle taper	-	7:24 ISO40
Distance between spindle nose and table surface	mm	100-500
Spindle speed range	r.p.m	11 steps 45-1660
Max swivel angle of milling head	-	360°
Table feed(X/Y/Z)	mm/min	No finite
Table rapid speed		1000/1000/750
Main motor power	Kw	2.2(V)/ 3(H)
Torque of X/Y/Z axis AC servo motor	Nm	10
Overall size	mm	173017601700	183017601700	173017601700		183017601700

Rotary table can be ordered at special request

Model	Table size	Max table travel - X/Y/Z	Max rotary angle of table	Distance between spindle nose and table surface
XL6230W	1270*320	720/300/400	±45°	60-460
XL6230AW	1370*320	820/300/400
XL6230BW	1270*320	900/380/400
XL6230CW	1370*320	1000/380/400
