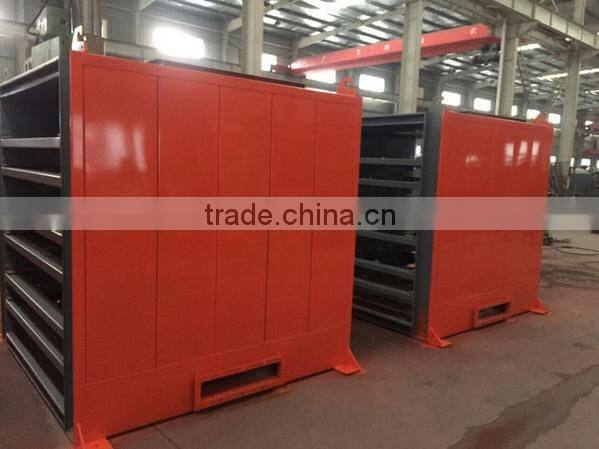

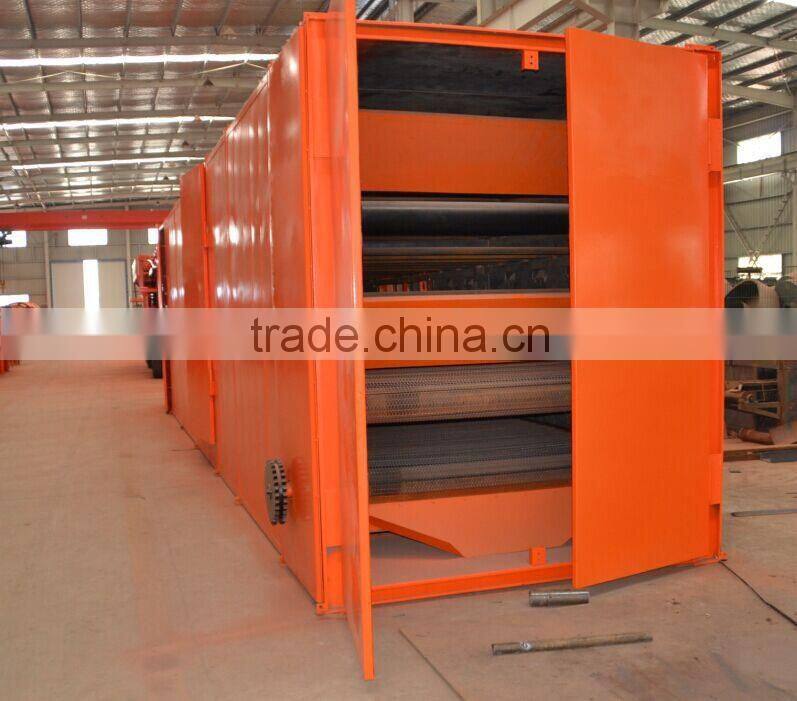

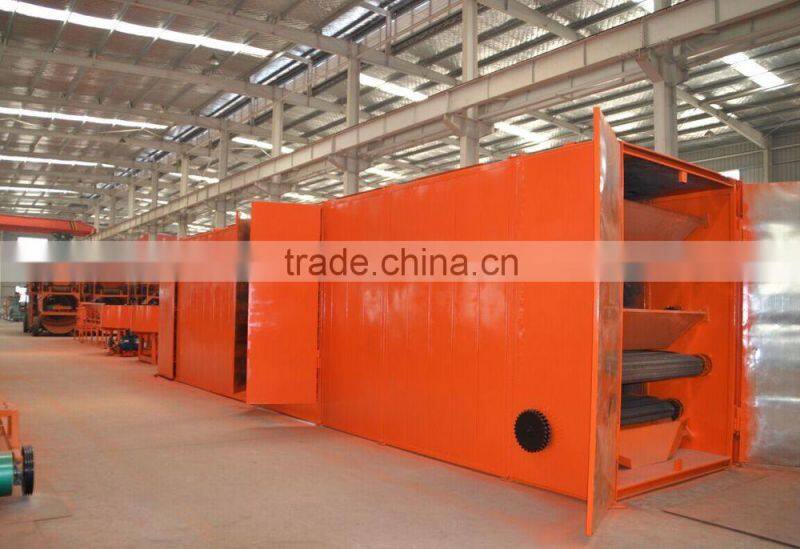

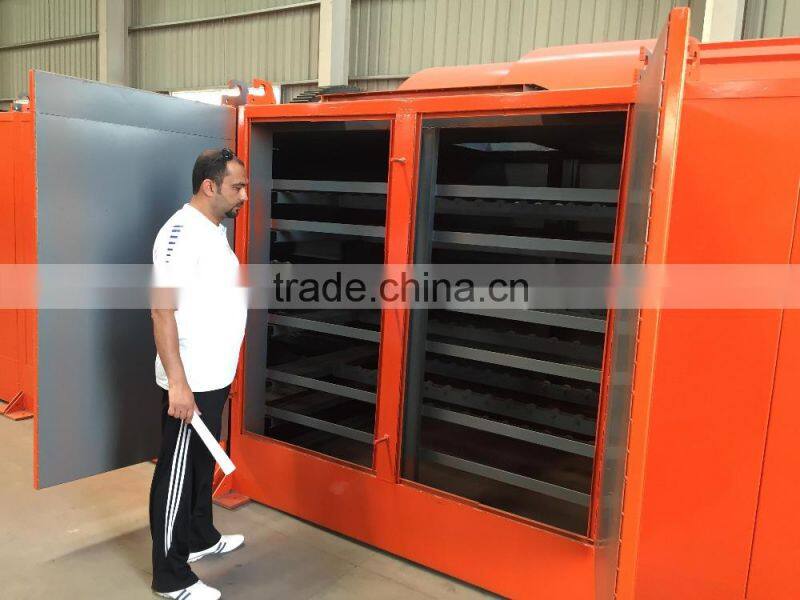

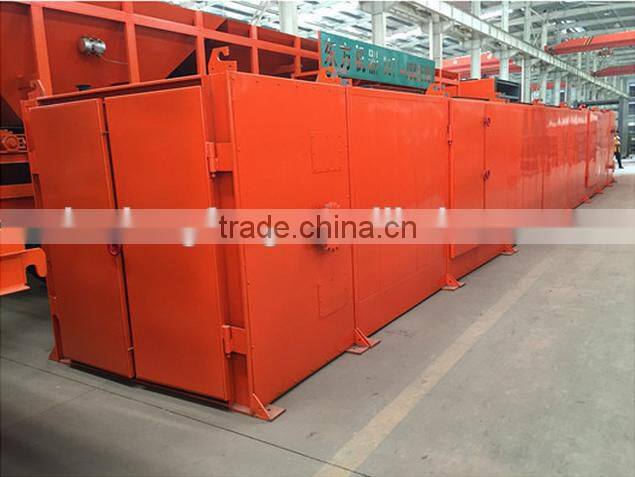

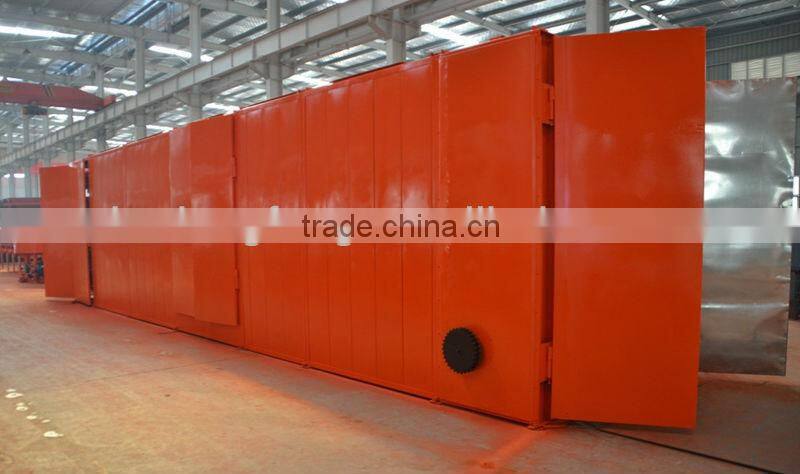

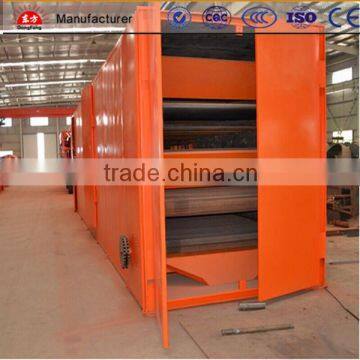

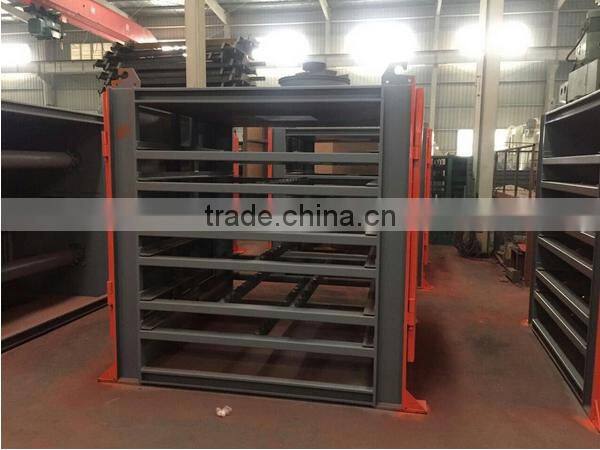

Fruit dryer machine / mesh belt dryer for foods
Introduction of mesh belt dryer:
1. Mesh belt dryer is a continuous type drying equipment. The mesh belt material is 12-60 steel mesh belt. The length of the cabinet is made up by the standard sections. In order to save space, the dryer can be made 2 layers, 3 layers and 5 layers. The dryer length can be from 6m to 40m, the effective width can be from 0.6m to 3m.
2. The principle is the material is unifomly tiled in mesh belt and the mesh belt will be dragged by the transmission and do back and forth movement in the dryer cabinet. The hot air flows between the material and the water vapor discharged from the hole, so as to the purpose of drying.
3. Its main heating source are usually hot air, electricity and steam.
Features of mesh dryer:
1. Small investment but high efficiency;
2. Large capacity with high quality machine;
3. Standard production. Can also increase the cabinets based on your needs.
Technical parameters for the mesh dryer:
Specifications | DF6 | DF8 | DF10 | DF12 | DF16 | DF20 | DF24 | DF30 |
Net belt width(mm) | 600 | 800 | 1000 | 1200 | 1600 | 2000 | 2400 | 3000 |
Dry length(m) | 6-12 | 6-12 | 6-16 | 8-16 | 8-22 | 10-26 | 12-30 | 12-40 |
Feed length(m) | 1 | 1 | 1 | 1 | 1 | 1.5 | 1.5 | 2 |
Drive length(m) | 1 | 1 | 1 | 1 | 1 | 1.5 | 1.5 | 2 |
Dry area(m2) | 3.6-36 | 4.8-48 | 6-80 | 7.2-96 | 12.8-105.6 | 20-260 | 28.8-360 | 36-600 |
layer | 1-5 | |||||||
Layer spacing(mm) | 400-600 | |||||||
Carrying capacity | 90-200 Kg/m2 | |||||||
Using temperature | Carbon steel≤400 C°,Stainless steel≤600 C° | |||||||
Evaporation intensity | 5-20kg water/m2.h | |||||||
Heat source | Hot air, electricity, steam | |||||||
speed | 0.06-1m/min | |||||||
Transmission power(Kw) | 1.1-2.2 | 1.1-2.2 | 1.1-2.2 | 1.1-3 | 1.5-3 | 1.5-4 | 3-7.5 | 5-11 |
supporting equipment | Conveying equipment, hot blast stove, dust removal equipment, induced draft fan, etc | |||||||
About Our Company:

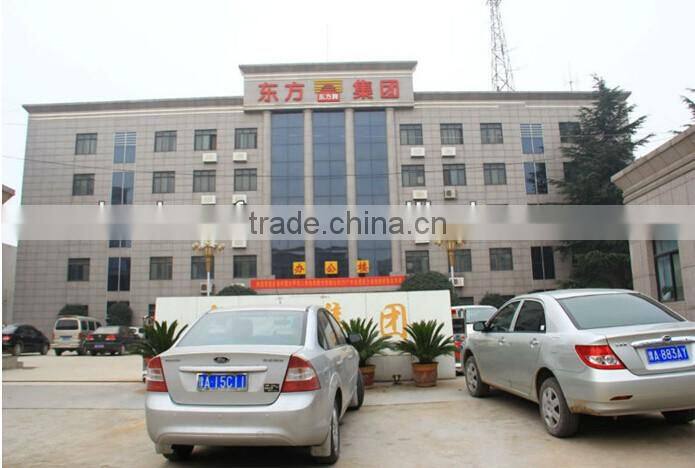

Henan Dongfang Group is a manufacturing factory with rich experiences more than 20 years. It covers more than 60,000 square meters,180 sets of main processing equipments,more than 1,000 employees. Our factory is specialized in many kinds of machines, such as briquetting machine, crusher machine, Ball mill, pellet machine,dryer machine equipments, heating sources and so on.
Our products are selling to many countires like Amercia, Colombia, Sri Lanka, Russia, Pakistan, Nigeria, Saudi ect. and get a very good reputation.
Choosing us is your best choice!
Contract Us:
If you want to know more about us and our products,please contract us,and we'll be very glad to serve you!
HENAN DONGFANG MACHINERY Co.,LTD.
Skype: dfmachine01
website:
Welcome to visit our factory~
