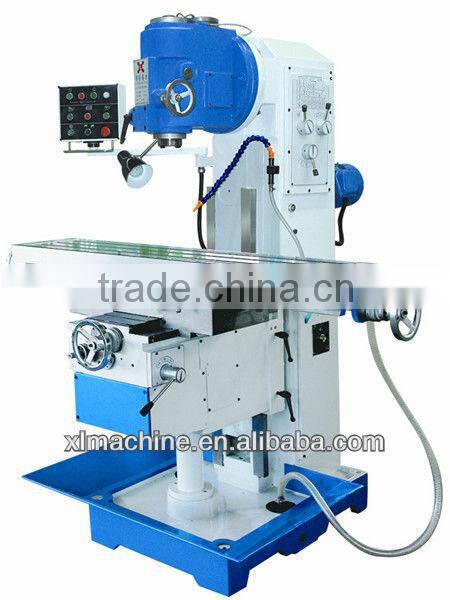

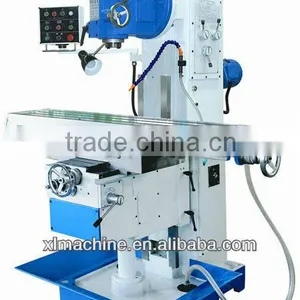

semi-automatic servo motor milling machine with swivel head

FOB Price

USD $4,000 - $6,000 / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port Qingdao
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Condition:	New	Place of Origin:	Shandong, China	Brand Name:	XILI
Model Number:	XL5030	Type:	Vertical	CNC or Not:	Normal
Voltage:	380V	Power(W):	50HZ	Dimension(LWH):	172016801810mm
Weight:	1500kg	Certification:	ISO9001:2008	Warranty:	12 Months

Product Description

Specifications

servo motor vertical milling machine
Driven by Ac servo motor
Table automatic feed on X/Y/Z
Automatic rapid feed X/Y/Z

servo motor vertical milling machine

Specification	Unit	XL5030
Table size	mm	1270*300
Table travel	mm	750300400
Spindle nose to work surface	mm	35-435
Spindle taper		7:24 ISO40
Rapid speed of table X/Y/Z	mm/min	stepless
Table feed X/Y/Z	mm/min	stepless
T-slots(N/W/D)	mm	3/14/80
Spindle speed range	rpm	12 steps 35-1500
Spindle travel	mm	70
Distance between spindle axis and column	mm	285
Swivel angle of milling head		±30°
Main motor power	kw	3
Servo motor torque	Nm	7.7
Overall size	mm	172016801810
Net weight	kg	1500

Product Description:

1. Get the ISO9001:2008 Certification

2. High rigidity, capable of heavy load cutting

3. Large amount of cutting

The machine is suitable for machinery, light industry, instrument, motor, electrical appliance and moulds, and widely used in machining of plane and arbitrary angle plane, and slotting, drilling, reaming, boring etc.

Standard accessories:

1. Plain vice

2. Milling chuck

3. Cutter arbor

4. Drawbar

5. Inner hexagon spanner

6. Double head wrench

7. Single head spanner
