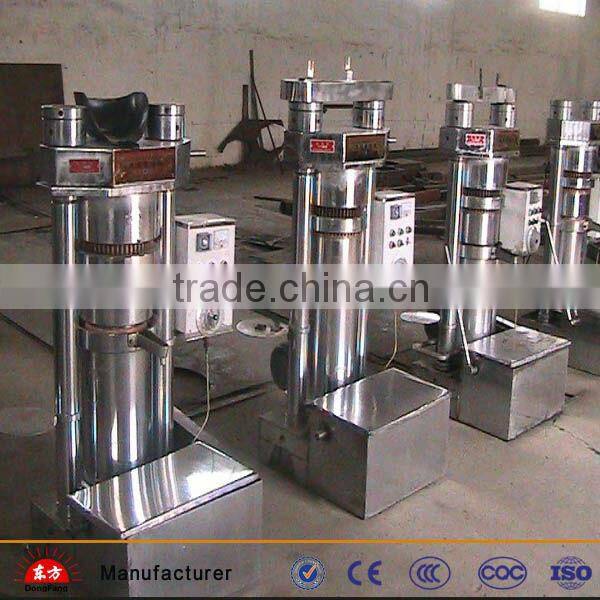

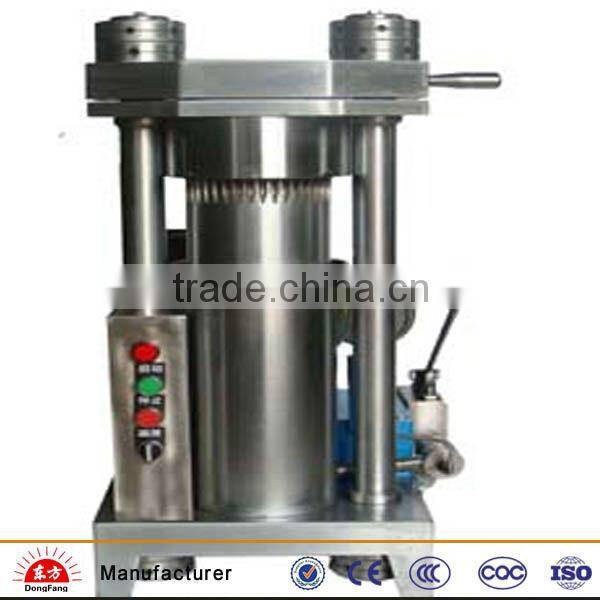

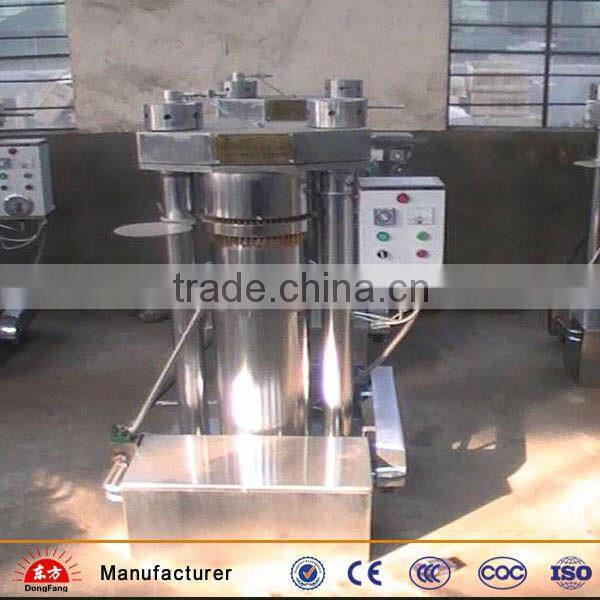

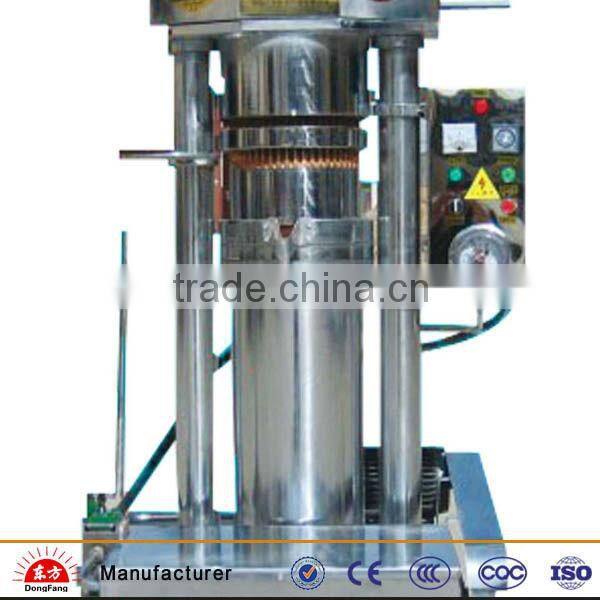

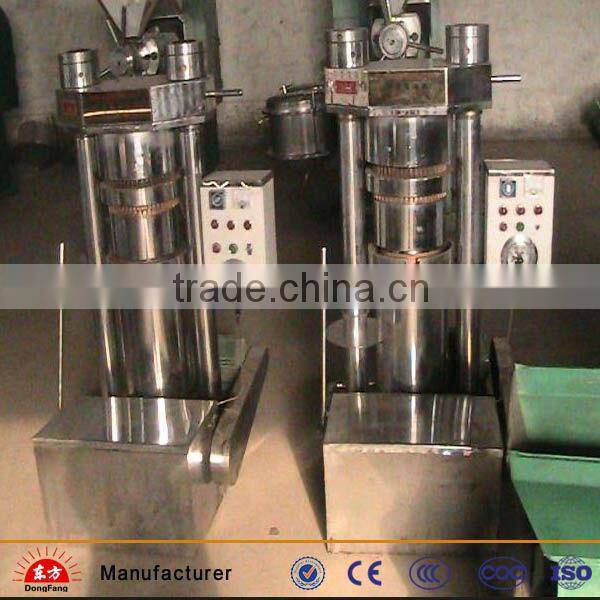

dongfang new model hydraulic oil press machine

Specifications

dongfang new model hydraulic oil press machine
1.Superior quality.
2.Deft design.
3.Energy-saving.
4.CE ISO

dongfang new model  hydraulic oil press machine

A.Application scope of hydraulic oil press machine

The automatic hydraulic oil press made by henan dafu has many advantages: easy to operate, high oil press rate, rare to replace wearing parts, so this oil press is the most advanced equipment which can replace of the manual operation of the sesame oil. This machine can press at least 2 to 7 kilograms per batch, the time is about 4 to 6 minutes, so it is very suitable for the citizens who live in the big and medium cities because they want get the high quality of oil of spending money. It is also can be used in the countryside, because the speed of oil pressing is fast so people can bring their oil raw material to press oil. In this way, they can be assured of the purity of their oil.

This machine can be used for process many kinds of raw material: sesame, walnut kernel, peanut, pine seed (better to get rid of the shell), almond, spricot kernel, perilla, linseed and other oil crops.

B. Structure of hydraulic oil press machine

This machine mainly includes three parts:

1.  main engine   2. hydraulic system    3.electrical  system

The following is the specific introduction:

1.  main engine:

 Main engine includes base,upright,top plate,oil drip pan,nut and etc which is one of the main parts. When the oil material is put into the assemly of the press boring,then it being drived up by the oil cylinder piston ,oil will be outflow from the gap of press boring,and then pass the oil drip pan to the drum for oil storage.

C.Capacity of hydraulic oil press machine

materials	models	time period/time	weight/time	output /10 hour	oil ratio
sesame	type 180	5-8 minutes	1-3kg	150-300kg	42%--52%
	type 230	4-6minutes	2-7.5kg	450-750kg
	type 320	8-10minutes	5-15kg	800-1200kg
almond	type 180	5-8 minutes	1-2.5kg	150-250kg	40%-45%
	type 230	4-6minutes	2-6kg	350-500kg
	type 320	8-10minutes	5-14kg	700-1000kg
walnut meat	type 180	5-8 minutes	1-2.5kg	150-250kg	50%-60%
	type 230	4-6minutes	2-6kg	350-500kg
	type 320	8-10minutes	5-14kg	700-1000kg
pine  nut	type 180	5-8 minutes	1-2.5kg	150-250kg	45%-60%
	type 230	4-6minutes	2-7kg	350-500kg
	type 320	8-10minutes	5-14kg	700-1000kg

D. Technical parameter of hydraulic oil press machine

1	Models	6YZ-180	6YZ-230	6YZ-320
2	External Dimension(mm)	800*650*1100	900*750*1400	1100*1000*1500
3	Weight of machine	530kg	880kg	1320kg
4	Nominal pressure	1600KN	2200KN	3000KN
5	Max pressure for working	55Mpa	55Mpa	55Mpa
6	Power of electricity heating circle	1KW	1KW	2KW
7	Controlling temperature of heating circle	70-100°C	70-100°C	70-100°C
8	Sesame weight/time	1-3kg	2-7kg	5-15kg
9	Motor types and power (kw)	Y901-4-1.5kw	Y901-4-1.5kw	Y901-4-1.5kw
