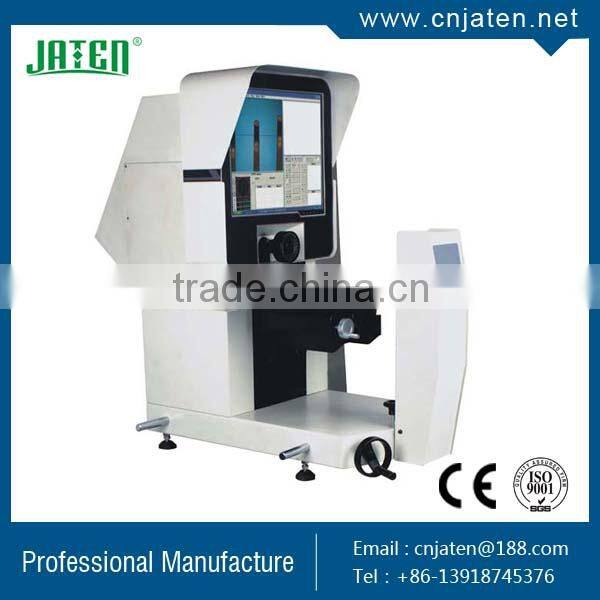

Horizontal Video Projector HV3015
Characteristics:
l Solid framework,large LCD touch screen and advanced QM2.0 software;
l High quality optics for crisp and clear images;
l Adjustable LED surface and contour illumination;
l High resolution industrial CCD camera;
l 6.5X Detented zoom lens changable within the range of 30-190x magnification Easy to operate user interface;
l Extended function of printing,saving and exporting datd;
l Excel,word or txt multi-format report output,and DXF input and output;
l Non-contact optical height measurement;
l Automatic edge-detecting function;
l Make Save and input the program;
l Map photo and measurement;
l Dimension lable funtion;
l SPC statistical funtion.
Specifciations:
Model | HV-3015 | HV-3020 |
X/Y-axis Travel | 300x150mm | 300x150mm |
Y-axis Travel | 150mm | 200mm |
Accuracy | ≤4+L/200(um) | |
Repeatablitily | ±2um | |
Metal Table Size | 455x126 | |
Operation Mode | Manual | |
Sway Range | ±15° | |
Video Device | 1/3" color CCD camera,6.5x Detented zoom lens | |
Screen Dimension | 19"LCD Touch Screen Monitor | |
Video Magnification | 30X~190X(it can extend to 15X~380X) | |
Working Distance | 92mm | |
Measuring Software | Quick Measuring 2.0 | |
Max.Load Capacity | 15Kg | |
Suitable Environment | Workshop and metrology room | |
Power Supply | AC110V/60Hz, AC220V/50Hz | |
Dimension(D×W×H) | 1000 x 550 x 630 mm | |
Net Weight | 200Kg | |
Standard Delivery
Product Name | Product Name | Product Name |
Measuring Software | Color CCD Camera | Detented Zoom Lens |
Calibration Block | Capture Card 7130 | Working Cupboard ST 04 |
19"LCD Touch Screen | Built-in PC System | Operation Manual |
For more product infomation, please check on :
Dongguan Jaten Precision Instrument Co.,Ltd
Factary Add: No.28, Songlang Street, Shangqiao Industrial Avenue,Dongcheng District, Dongguan, China.
International Marketing Add: No 1558,South Wangyuan Road, Fengxian District, Shanghai ,China.
Tel: 0086-21-68416305 Fax:0086-21-37196172
Email: cnjaten(at) Web:
Contact Export Manager:Harrison Hou
Mobile:0086-13918745376
Skype:harrison6936 WhatsApp: 0086-13918745376
Wechat:Harrison6936 QQ: 414846153
