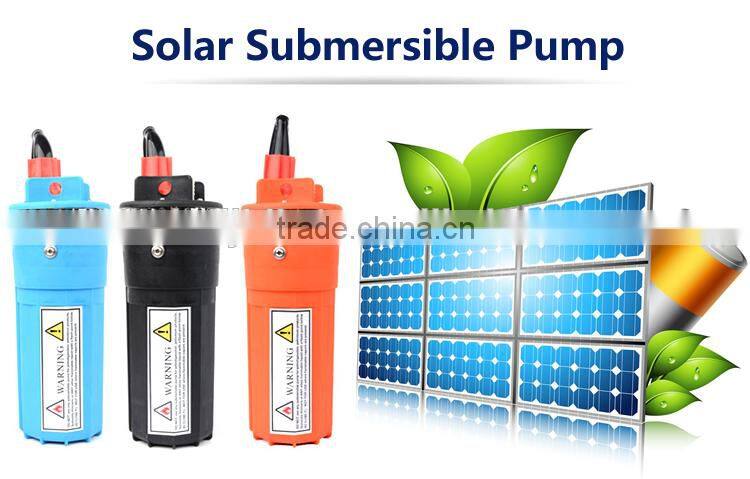

Electric Submersible Pump Philippines dc Solar Water Pump System Specifications YM2440-30

Product Description:

The solution to your remote water pumping needs, This is rugged. Durable and builtto last. This pump delivers a steady 162GPH(600LPH) at its maximum depth of 230 feet(70M) when supplied with 24VDC. Its unique water-tight power connector stops water wicking and prevents potential condensation problems.Great for livestock watering. Irrigation pondaeration.remote homes and cabins

Features:

1. For 4" wells or larger

2. Quick disconnect with "Watertight-Gland" Design Pat Pend

3. Corrosion-proof housing with stainless-steel fastener

4. Run dry without damage

5. State of the art solid diaphragm

6. Stainless Steel Fastener

7. Pump Design: Positive Displacement 3 Chamber Diaphragm Pump

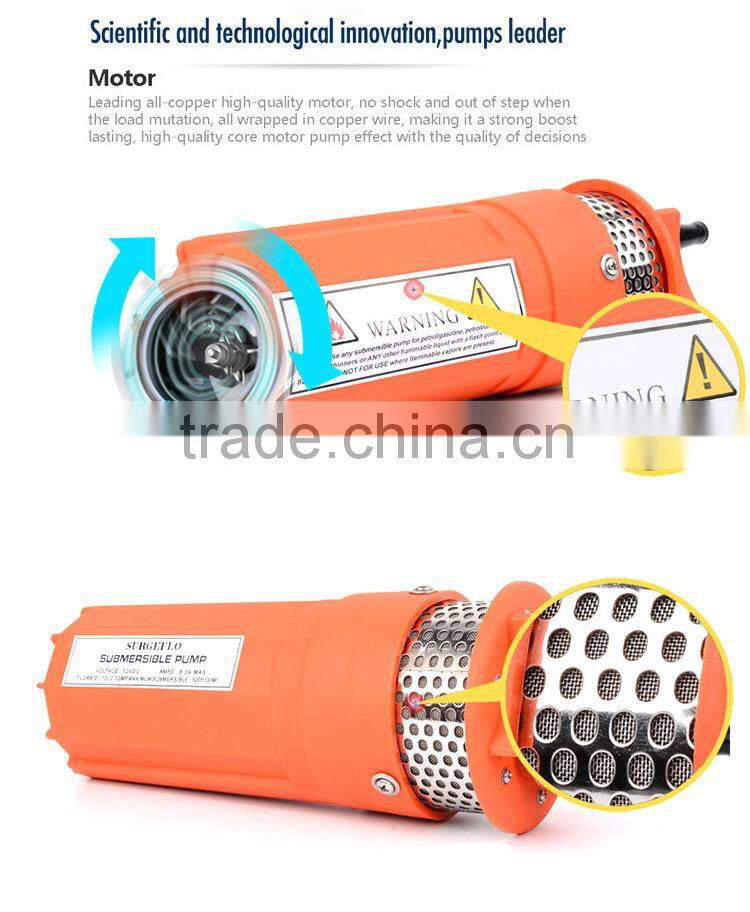

8. Motor: Permanent Magnet Thermally Protected

9. Internal Bypass: 105-110 PSI Max. (7.2-7.5 BARS)

10. Outlet Port: 1/2" (12.7mm) Barbed Fitting

11. Inlet: 50 Mesh Stainless Steel Screen

12. Material: High Strength Engineered Plastic
