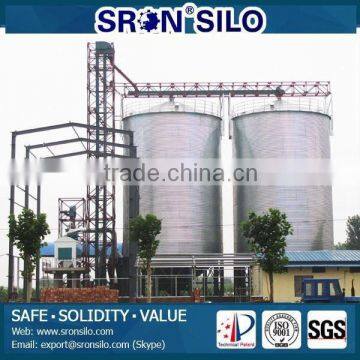

SRON ISO Certified Soybean Meal Storage Steel Silo with Screw Discharging Auger

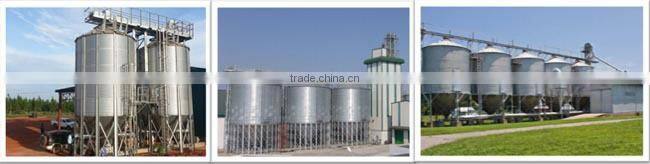

SRON is a strong technical strength BRAND in China specializing in the construction of whole silos system for industries of sea port grain transit center, oil processing center, commercial silo, river grain transit center, farm silo, feed silo, flour mill, starch mill, edible oil production factory, paddy rice mill, PVC storage, special seed and mineral powder storage etc.
We are dedicated to providing turn-key silo system reflecting China National Top Level Technology Engineering Design, Manufacturing and Installation. The founder of SRON and our respected engineers, who are professors from Henan University of Technology, have joined construction of many China National Reserve Silo Systems with the most authoritative practice expertise. (soybean meal storage steel silo)
SRON Silo is widely used for wood pellets, wood chips, wood sawdust and soybean meal storage.
The Build to Last Solid Silos |

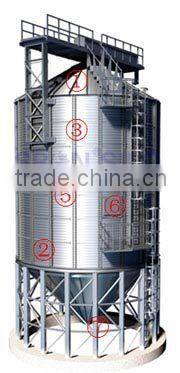

| How we assure the silo solidity?
1. Roof Top: The roof is design to stand up even the harshest environment of extreme snow disaster with echo of top and down part strong structure and connecting radial ribs which is Z interconnected again itself. Roof panels incorporate with ribs with over and under lap profiles ensuring a precise fit.
2. Body Steel Plate: A commercial275g/m2 double galvanized steel coating increases life and durability.450g/m2 and 600g/m2 coating available for customized order.Each sidewall sheets are manufactured from high-tensile steel that has the ability to overcome extreme power, pressure.
3. Stiffeners: SRON’s high tension stiffener(can be located inside or outside silo) profiles make bins stronger allowing silos to stand well even under extreme hurricane. Base stiffener boots are coated so they won’t rust over time.
4. High strength bolts and screws: SRON’s high strength bolts paired with sealing washers, coated hardware provides added protection from rust to ensure your grain bin stands the test of time.
5. Wide Flange I-Beam Support Structure: Wide flange I-Beam support structure has the strength and durabilityto support the heavy hopper silo loads long time, and with consideration of wind and seismic requirements.
6.Special 70° Angle Steel Hopper Bottom Design Easy for discharging. (soybean meal storage steel silo) |

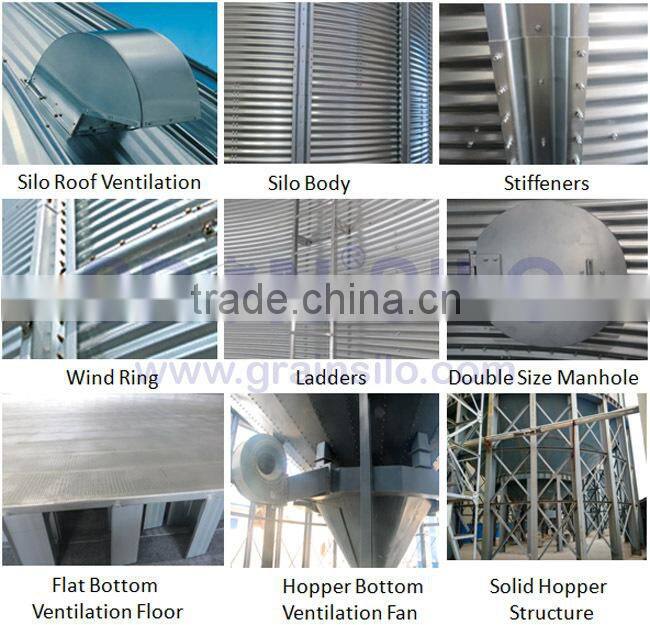

SRON Solid Silo Construction Details |
SRON Most Popular Hopper Bottom Silo Models |
Scientifically speaking, the silo capacity should be measured with volume (m3). Even in one same silo, the storage tons will be different for different grains with different density. The following table is calculated based on grain density of 0.75kg/m3, and surely SRON customize silo systems unique for you. (soybean meal storage steel silo)
Most Popular Hopper Bottom Steel Silo Technical Specifications | ||||||||
Capacity | 50 ton | 100 ton | 150 ton | 200 ton | 300 ton | 500 ton | 1000 ton | 1500 ton |
Model | TCZK 03605 | TCZK 04506 | TCZK 05506 | TCZK 05509 | TCZK 06410 | TCZK 07313 | TCZK 10013 | TCZK 12811 |
Diameter(m) | 3.667 | 4.584 | 5.5 | 5.5 | 6.417 | 7.334 | 10.084 | 12.834 |
Total Height(m) | 9.56 | 11.41 | 12.13 | 15.49 | 17.33 | 21.42 | 23.61 | 23.51 |
Volume(m3) Density:0.75ton/m3 | 69 | 131 | 195 | 275 | 418 | 699 | 1379 | 2039 |
Contact us for more hopper bottom silo type information.

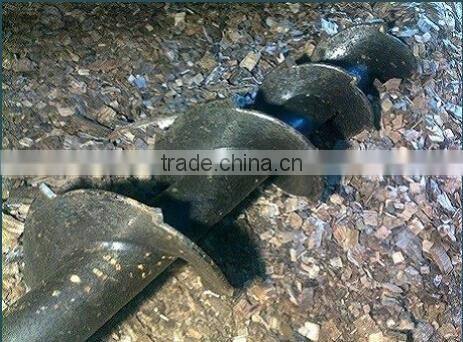

Mainly Use Sweep Auger for Wood Pellet Silo Discharging |
|
|
Advanced Production Equipment, Expertise Workmanship Guarantee First - Class Project Performance |
Standing on our strong integral solution design power, SRON’ s rich manufacturing expertise guarantees the best workmanship of the whole silo system. The bolt steel plate production line is imported assuring bolt plates high precision and max sealing bolt connection. Advanced lathe workshop. (soybean meal storage steel silo)
Experienced and Well Managed Installation Team Will Work at Your Site |
SRON’ s own installation engineers team plays a respectable role for the success high performance whole silo system. Our motivated team has rich installation experience for various types of silos, work under strict and standardized installation management system, thorough installation cross-checking rules, and they promise one time project acceptance. (soybean meal storage steel silo)
Worry Free After-Sale Service |

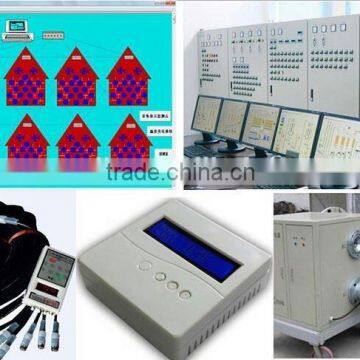

- SRON provide advanced grain safety storage technology to assure your grain 100% quality stability.
- Quality guarantee is one year after installation and commissioning or 18 months after leaving China Port. The maturity is the first.
- 7 days x 24 hours service, within 24 hours reply/solve of any technical issues upon request.
- Routinely telephone track to remove all might be problems or issues guarantying the whole system long lasting safety and reliability.
SRON will consider your all other needs like customs clearance, sea delivery, insurance, customs tax benefit plan, documentations etc. So our respected Users feel so relaxed and easy to get the silo system well.
Part of Respected Customers Visit, Your Join is Warmly Expected |
Email SRON,Get Professional Overall Solution Immediately!
Contact: Hilda Wan
Tel: 0086-15827569971
Email: hilda.wan AT
Skype: sronsilo08 AT
www.
(SRON ISO Certified Soybean Meal Storage Steel Silo with Screw Discharging Auger)
