Here We Are Not Able To Present All Technical Details of Our Tanks, SRON Worth Your Click CONTACT US for thorough Technoloy Information. Thank you!
1. SRON Modular stainless steel water tank |

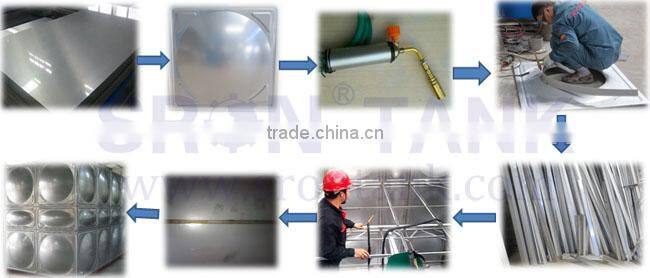

SRON stainless steel tank’s design, manufacture and installation are based on the National Building Standard Design Atlas 12S101 "rectangle water tank". We use good grade 304 cold rolled stainless steel plates to stamping, molding, then assemble together by using professional argon arc welding technology.(Stainless Steel Tank Price )

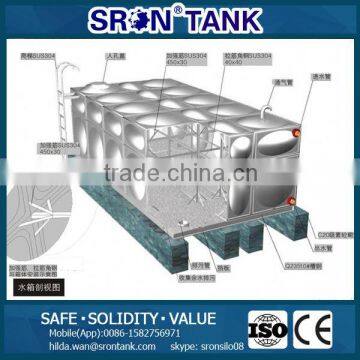

The main components are: tank body, internal support and reinforcement, manholes, inside and outside the ladder, each connecting pipe, water level gauges, steel base, external insulation (optional) and so on.

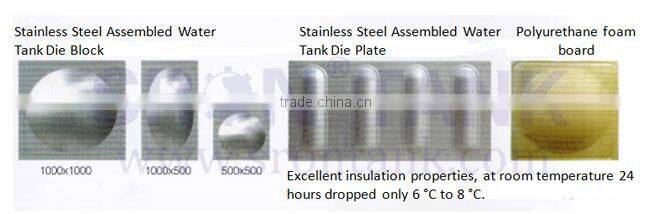

Note: if you place or dress hot water outdoor in the water tank, you can choose external insulation; external insulation is composed of insulation material and stainless steel coating composition, Insulation materials can be used in various thicknesses of rubber cotton or polyurethane foam board. (Stainless Steel Tank Price)

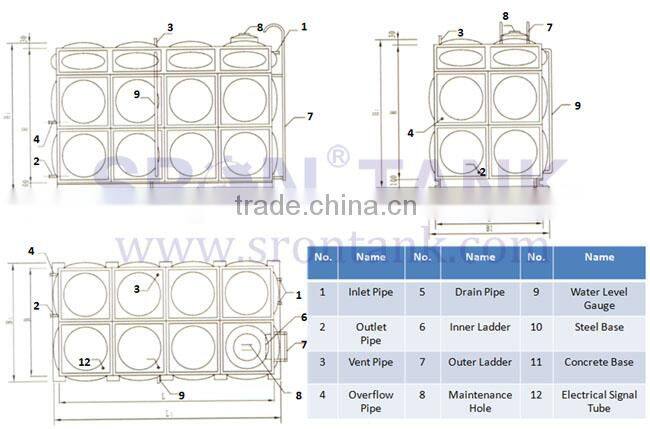

2. SRON Water Tank Technical Details |
(Stainless Steel Tank Price)
3. SRON Most Popular Tank Models |
Model (XYSPZ) | Volume (m3) | External Dimension (mm) | Panel Thickness (mm) | Bottom Support | |||||||||
L | B | H | Top Panel | Floor Panel | Layer 1 | Layer 2 | Layer 3 | Layer 4 | Margin(C) | Space(C1) | Quantity(n) | ||
1 | 10 | 2500 | 2000 | 2000 | 1.2 | 2.0 | 1.5 | 2.0 | 200 | 600 | 5 | ||
2 | 12 | 3000 | 2000 | 2000 | 1.2 | 2.0 | 1.5 | 2.0 | 200 | 600 | 6 | ||
3 | 15 | 3000 | 2500 | 2000 | 1.5 | 2.5 | 1.5 | 2.0 | 200 | 600 | 6 | ||
4 | 20 | 4000 | 2500 | 2000 | 1.5 | 2.5 | 1.5 | 2.0 | 200 | 600 | 7 | ||
5 | 24 | 4000 | 3000 | 2000 | 1.5 | 2.5 | 1.5 | 2.0 | 200 | 600 | 8 | ||
6 | 30 | 5000 | 3000 | 2000 | 1.5 | 2.5 | 1.5 | 2.0 | 200 | 600 | 9 | ||
7 | 40 | 5000 | 4000 | 2000 | 1.5 | 2.5 | 1.5 | 2.0 | 200 | 600 | 9 | ||
8 | 50 | 5000 | 5000 | 2000 | 1.5 | 2.5 | 1.5 | 2.0 | 200 | 600 | 9 | ||
9 | 60 | 6000 | 5000 | 2000 | 1.5 | 2.5 | 1.5 | 2.0 | 200 | 600 | 11 | ||
10 | 80 | 6500 | 5000 | 2500 | 1.5 | 2.5 | 1.5 | 2.0 | 200 | 590 | 12 | ||
11 | 100 | 6000 | 5500 | 3000 | 1.5 | 2.5 | 1.5 | 2.0 | 2.5 | 200 | 606 | 13 | |
12 | 150 | 10000 | 5000 | 3000 | 1.5 | 3.0 | 1.5 | 2.0 | 2.5 | 200 | 630 | 14 | |
13 | 200 | 10000 | 6000 | 2500 | 1.5 | 3.0 | 1.5 | 2.0 | 2.5 | 2.5 | 200 | 625 | 17 |
(Stainless Steel Tank Price )
4.SRON Is Expert for Whole System Used for Various Industries |
• Residential cisterns(drinking water)
• Construction and fire-fighting water supply
• Agricultural feeding operations
• School water supply
• Water circulation system
• T emporary water storage tanks for expansion of the heating system
(Stainless Steel Tank Price)
5. SRON Stainless Steel Water Tank Performance Advantages |
1. We use good-grade 304 cold rolled stainless steel plate, stable physical and chemical properties, non-heavy metal precipitation, no secondary pollution for water quality.
2. Tank board is molded with precision mold, high strength, light weight, neat appearance, good visual effect.
3. By using professional argon arc welding technology stitching, no welding spatter, weld defects, welding deformation. High strength welding line.
4. Stainless steel surface finish 2B, smooth and clean, not easy to epiphytic algae, easy cleaning and disinfection.
5. Users can flexibly assemble into a variety of site conditions, L-shape, T-type, ladder type etc. (Stainless Steel Tank Price )

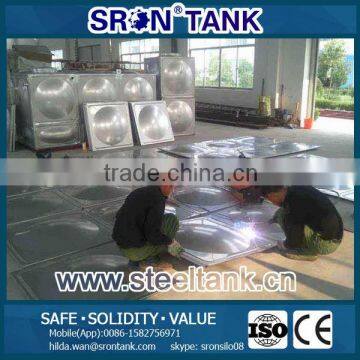

6. Advanced Production Equipment, Expertise Workmanship Guarantee First -Class Project Performance |
Standing on our strong integral solution design power, SRON’ s rich manufacturing expertise guarantees the best workmanship of the whole water tank system. (Stainless Steel Tank Price)
Advanced lathe workshop.

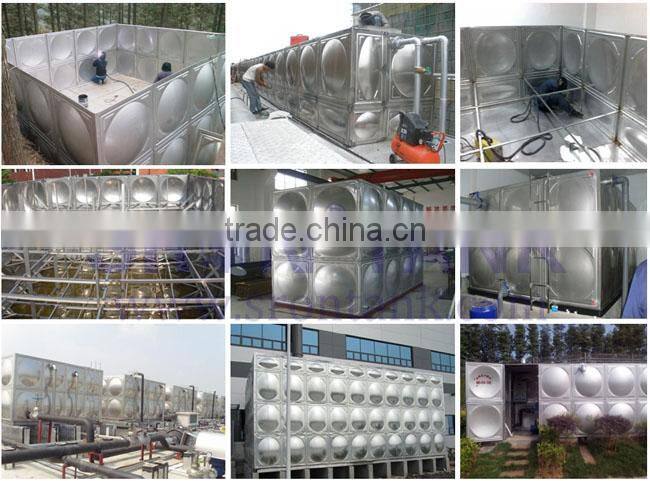

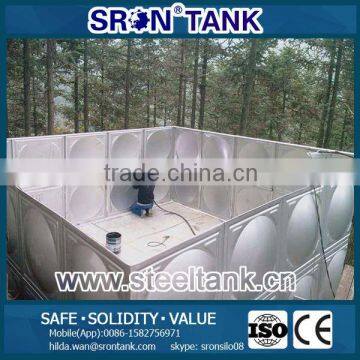

7. Experienced and Well Managed Installation Team ensure the project efficiency and smooth |
8. Worry Free After-Sale Service |
- SRON provide complete and detailed installation instructions,guide you professional maintenance items.
- Quality guarantee is one year after installation and commissioning or 18 months after leaving China Port. The maturity is the first.
- 7 days x 24 hours service, within 24 hours reply/solve of any technical issues upon request.
- Routinely telephone track to remove all might be problems or issues guarantying the whole system long lasting safety and reliability.
SRON will consider your all other needs like customs clearance, sea delivery, insurance, customs tax benefit plan, documentations etc. So our respected Users feel so relaxed and easy to get the silo system well. (Stainless Steel Tank Price)
9. Email SRON, Get Professional Overall Solution Immediately |
Contact: Hilda.wan
Tel/App: 0086- 15827569971
Email: hilda.wan AT
Skype: sronsilo08 AT
(Customized Stainless Steel Tank Price Cost Down with Leading Technology)
