This is extrusion blow molding machine manufacturer , A wide variety of materials can be used for the machine, which are suitable for producing 100ml to 5L PE bottle. The clamping system is a high-precision double-station linear guide, extrusion system using a hard gear reducer and inverter. The die head system adopts central-incoming extrusion die made of special steel, imported hydraulic valve and seal parts with proportional control valve.The control system consists of PLC and Human-machine interface imported from Japan, and automatic temperature control module and imported electrical parts.
2.5 liter extrusion blow molding machine manufacturer production process
extrusion blow molding machine manufacturer specification
Unit | Item | Specification | Description |
Extruding system
| Screw diameter | Φ75mm | Mixing model |
Max. Product Volume | 6L | Double station and single die-head | |
Screw L/D | 24:1 |
| |
Material of screw and barrel |
| 38CrMoALA | |
Plasticizing capacity | 90KG/Hr | Based on HDPE 5502 | |
Extruding method |
| Inverter motor, hardness tooth surface gear box | |
Driving power | 30KW |
| |
Screw revolution | 10—90rpm |
| |
Heating zones | 3 | Temperature module from Mitsubishi PLC | |
Heating power | 10KW | Solid state (SSR) and plug connection for all heaters | |
Blowers | 3 |
| |
Cooling function | Yes | Cooling water for feeding zone and gear box |

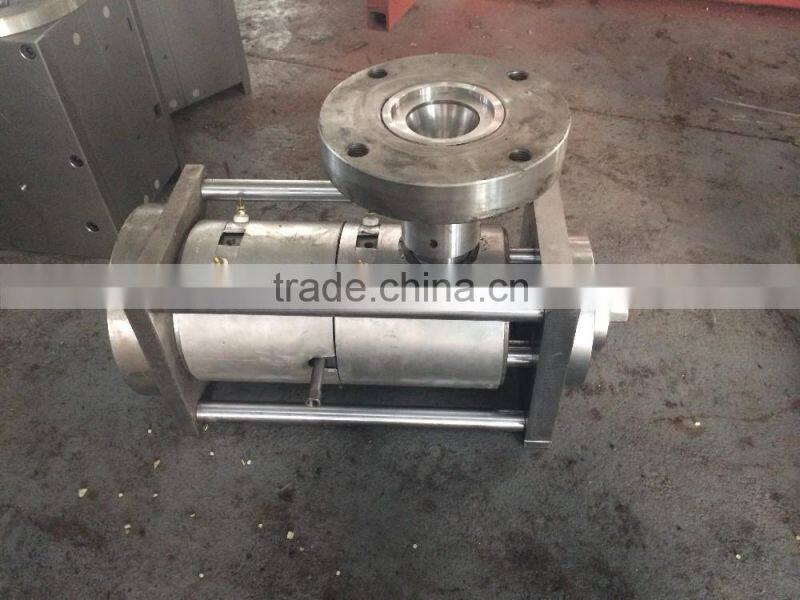

Blow molding machine extruder- Single die head

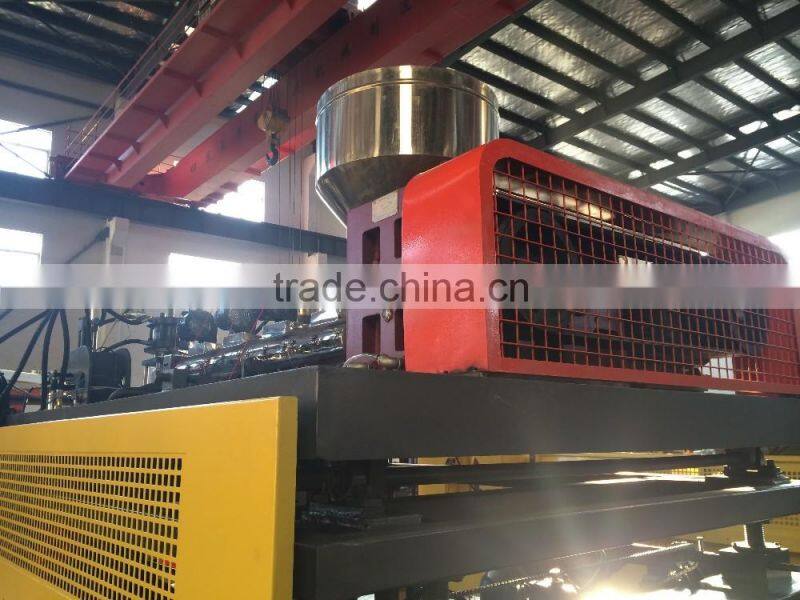

extrusion blow molding machine manufacturer plastic plasticing part

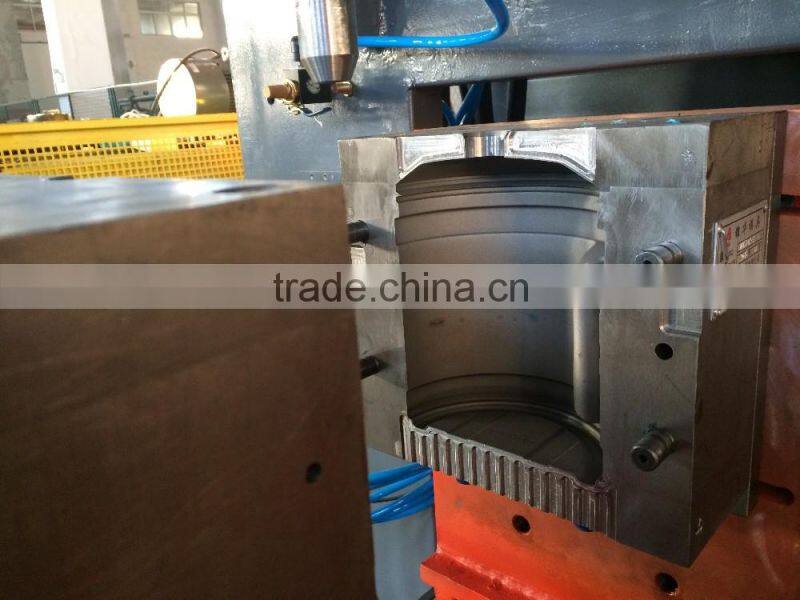

extrusion blow molding machine manufacturer clamping structure.

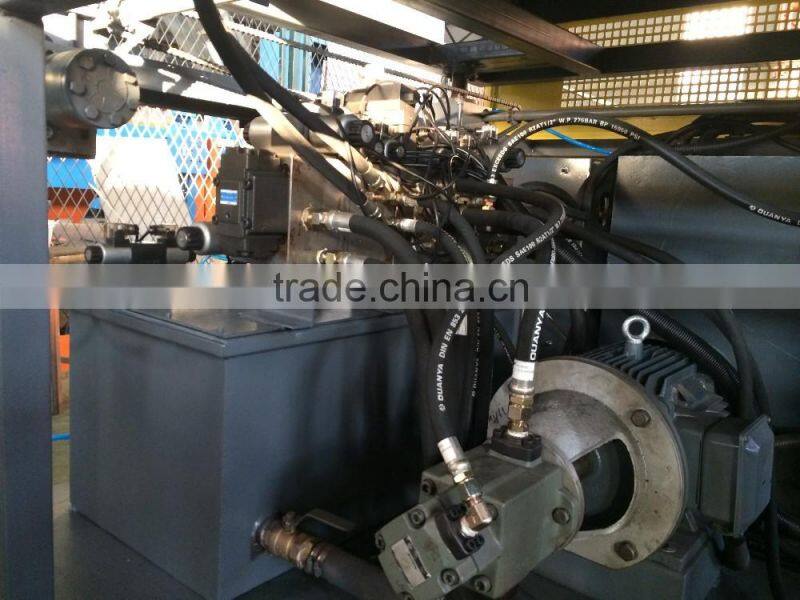

Extrusion blow molding machine manufacturer hydraulic system
extrusion blow molding machine manufacturer process
blow molding machine component brand
Blow molding machine loading
Any inquiry , welcome contact us for free! thanks.
