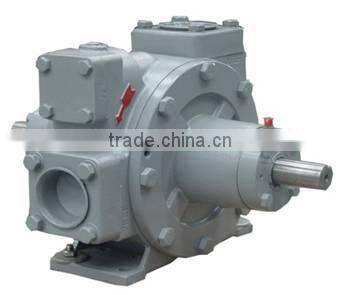

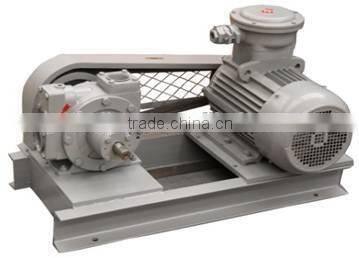

2015 Liquid gas transfer pump/lpg filling pump/lpg truck pump
1.Description
LYB-2000 LPG vane pump is positive displacement pump,
which is specially designed to perform in such severe operating conditions as high differential pressure, pump over speeding, poor suction conditions. It has V-belt or direct-drive mounting with gear reducer for option.
2.Advantage
Innovative cam design virtually eliminates cavitation.
New materials utilized in cam & blades, and heavy duty
bearings extending pump life.
Single mechanical seal, easy seal replacement and
maintenance.
Large non-metallice pins are suitable for higher pump speed.
3. Flow Rate:
Flow rate | |||
Speed RPM | Differential Pressure(Bar) | Flow Rate(L/min) | Power (KW) |
800 | 3.4 | 323 | 2.3 |
6.9 | 287 | 4.6 | |
650 | 3.4 | 261 | 1.9 |
6.9 | 227 | 3.8 | |
500 | 3.4 | 189 | 1.4 |
6.9 | 155 | 2.9 | |
4. Technical Specification:
Technical Specification | |
Inlet & Outlet: | 50mm/2" |
Max. Working Pressure: | 28.6 Bar |
Differential Pressure: | 8.6 Bar |
Max.Speed: | 800RPM |
| Temperature: | -32oC~+107oC |
| Internal Relief Valve: | Yes |
5. Packing Data
Packaging Data | |
Model | Pump only |
Packaging | 1pc/Wooden Box |
Net Weight | 41Kgs |
Gross Weight | 50Kgs |
| Size | 48×35×35cm |
6. Application
Typical applications for LPG, NH3 bulk transfer include LPG cylinder filling, loading and unloading of bulk trucks and transport trailers.

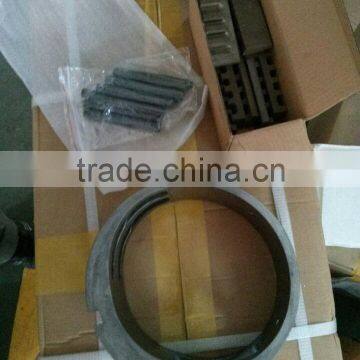

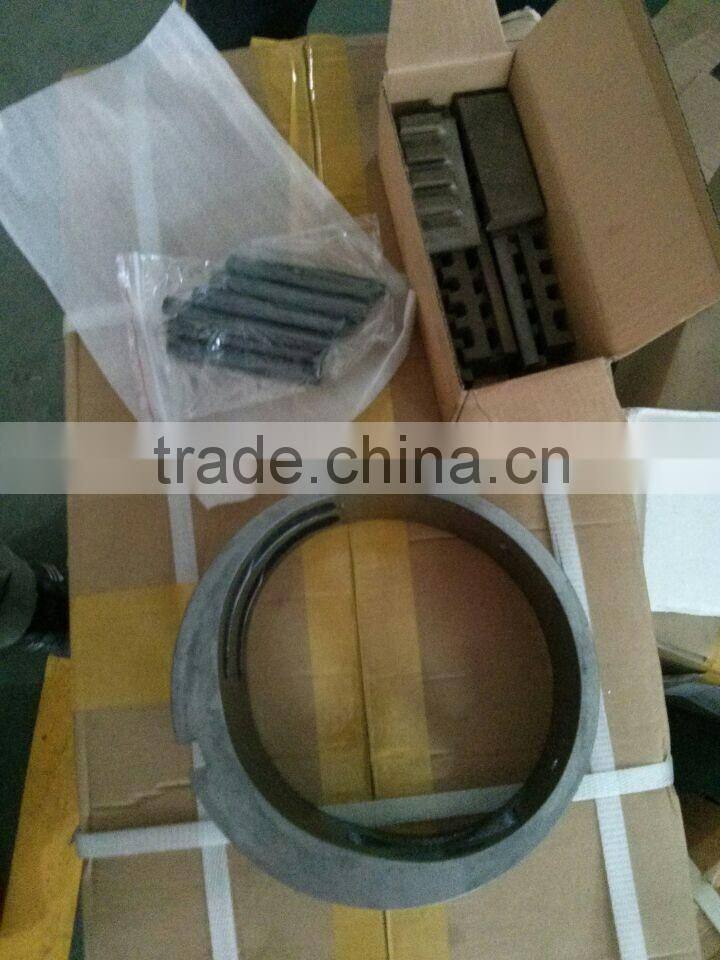

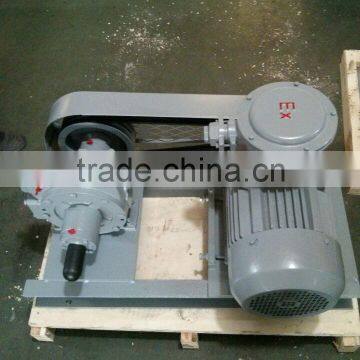

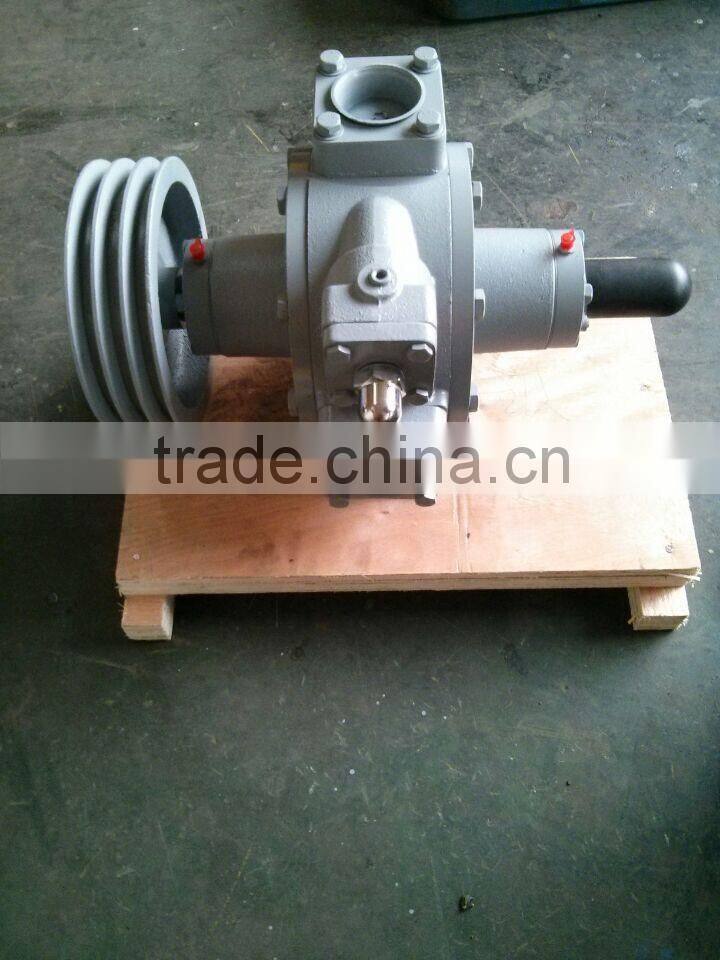

7. Picture
8. Product Certification
