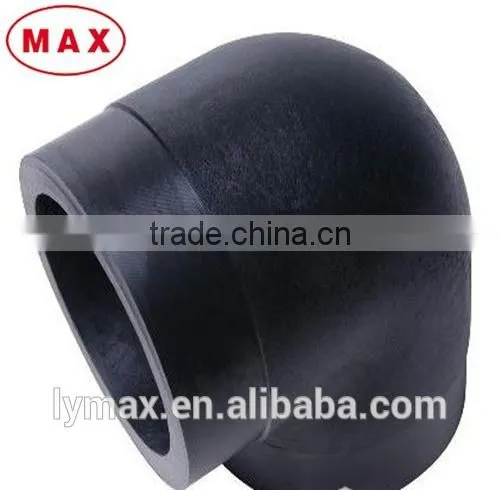

PE Fitting Elbow 90 Degree Fitting Dimensions( HDPE PIPE FITTING )
USD $1 - $250
/ Piece
500 Pieces(Min.Order)
- 30000 Piece / Pieces per Month
- Qingdao
- T/T Credit Card
You May Like
-
HDPE Pipe Fitting used Injection Flanged for Water Supply PE Pipe
-
Customized Dimensions of HDPE plastic pipe fittings elbow/tee
-
Hot melt docking HDPE pipe fitting/45 degree elbow
-
Dimensions of PE Gas Supply Pipe used Pipe fittings HDPE Pipe Fittings
-
All Dimensions PE100 HDPE Pipe Fittings/PE Reducing Tee
-
HDPE pipe fitting Butt fusion fittings/ pe water pipe qeual tee dimensions
Product Details
| Material | Other, high-density polyethelyene | Technics | Other, injection molding | |
| Type | Other, reducing | Place of Origin | Henan, China | |
| Model Number | HDPE Pipe Fittings | Brand Name | MAX | |
| Connection | Welding | Shape | Reducing | |
| Head Code | Other, round |
Product Description
Specifications
pipe fitting dimensionsMaterial:pe100
Standard:GB/T13663
Package:plastic woven bag
PE Fitting Elbow 90 Degree Fitting Dimensions(HDPE PIPE FITTING)
Characteristics of HDPE pipe
a. Long lifespan--it can be used for more than 50 years under normal condition
b. Good sanitary performance--it isn’t added the heavy metal salt stabilizer, and its material is non-toxic, does not scale. it is not easy to form dirt, and avoids secondary pollution of drinking water
c. Excellent wear resistance--its wear resistance is 4 times higher than steel pipe under normal conditions
d. Good corrosion resistance--it can resist variety of chemical mediator except few oxidants
e. Little coefficient of friction and low flow resistance
f. Fine flexibility and anti-scratch ability
g. Good crack growth resistance
h. Good solder ability--its interface strength is higher than the pipe body
i. Low cost--it can reduce the cost of project substantially
Applications of HDPE pipe fittings
1. City and town water supply system or project
2. To transport natural gas & coal gas in daily life
3. Transport sand, mud, slurry for dredger in dredging projects or sand suction projects
4. Food & chemical industry
5. To transport ore & tailings
6. To replace cement pipe, cast iron pipe & steel pipe
7. Landscaping pipeline
HDPE Water Pipe Specification:
| HDPE100 PIPE | |||||
| Standard:GB/T13663-2000 | Thickness: mm | ||||
| PN | 0.6MPa | 0.8MPa | 1.0MPa | 1.25MPa | 1.6MPa |
| SDR | SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 |
| DN | Thicnkness | Thicnkness | Thicnkness | Thicnkness | Thicnkness |
| 16 | 2.0 | ||||
| 20 | 2.0 | 2.3 | |||
| 25 | 2.3 | 3.0 | |||
| 32 | 2.3 | 2.4 | 3.0 | ||
| 40 | 2.3 | 2.3 | 3.0 | 3.7 | |
| 50 | 2.3 | 2.9 | 3.7 | 4.6 | |
| 63 | 2.3 | 2.5 | 3.6 | 4.7 | 5.8 |
| 75 | 2.9 | 3.6 | 4.5 | 5.6 | 6.8 |
| 90 | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 |
| 110 | 4.2 | 5.3 | 6.6 | 8.1 | 10.0 |
| 125 | 4.8 | 6.0 | 7.4 | 9.2 | 11.4 |
| 140 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 |
| 160 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 |
| 180 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 |
| 200 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 |
| 225 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 |
| 250 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 |
| 280 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 |
| 315 | 12.1 | 15.0 | 18.7 | 23.2 | 28.6 |
| 355 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 |
| 400 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 |
| 450 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 |
| 500 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 |
| 560 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 |
| 630 | 24.1 | 30.0 | 37.4 | 46.3 | 57.3 |
| 710 | 27.2 | 33.9 | 42.1 | 52.2 | - |
| 800 | 30.6 | 38.1 | 47.4 | 58.8 | - |
| 900 | 34.4 | 42.9 | 53.3 | ||
| 1000 | 38.2 | 47.7 | 59.3 | ||
| 1200 | 45.9 | 57.2 | 70.6 | ||
| 1400 | 53.9 | 66.7 | 82.4 | ||
