Specifications
Support CEC and HDCPHigh tone quality, low noise
wth3.5 Stereo headphone output
1080P

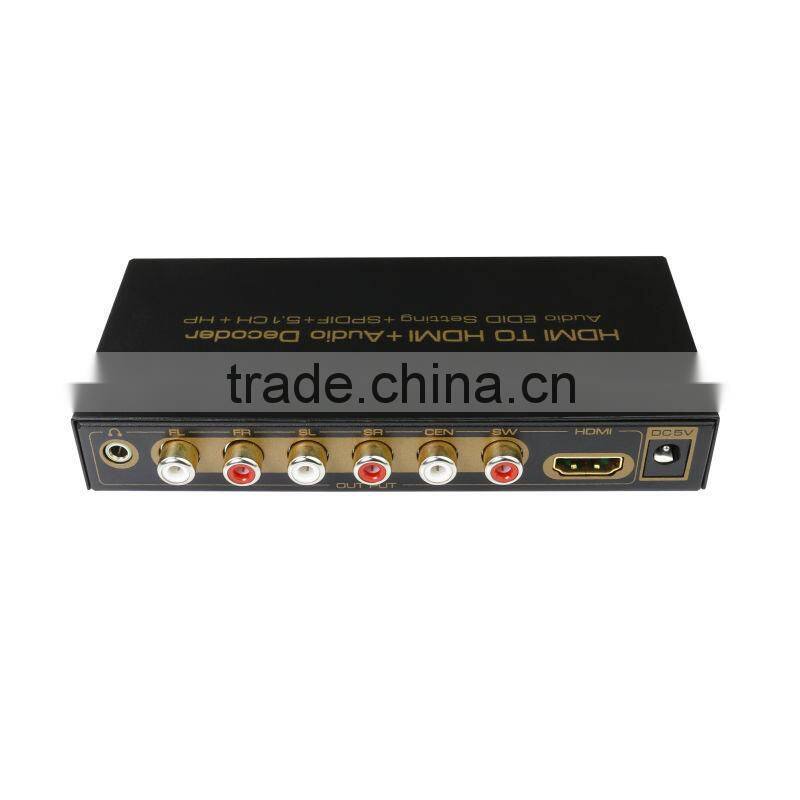

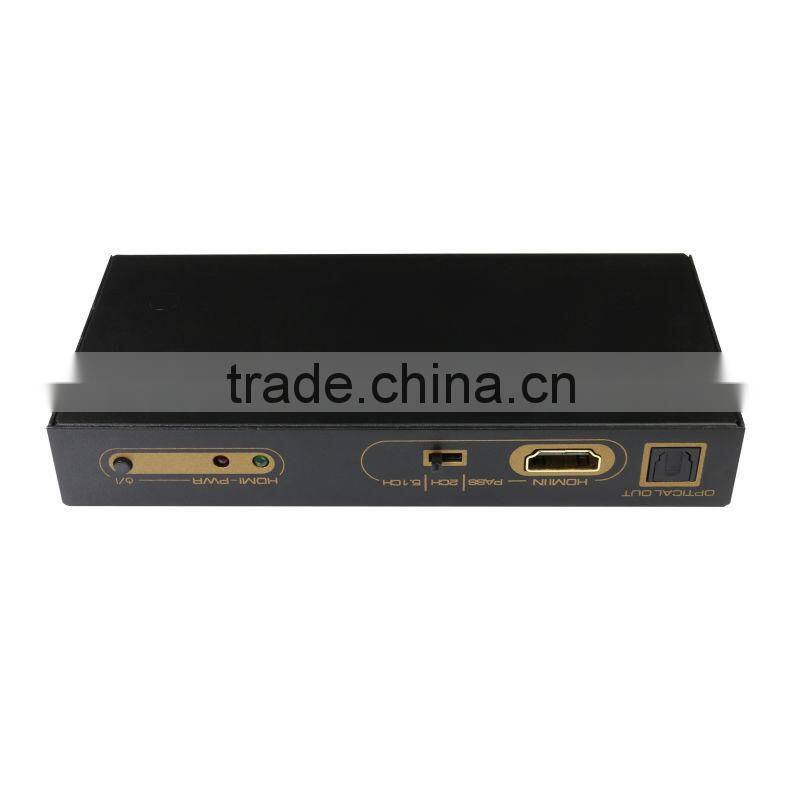

HDMI TO HDMI + Audio Decoder
AUDIO EDID SETTING+SPDIF+5.1CH+HP
The HDMI TO HDMI Audio Decoder allows you to extract audio signals from your HDMI source. You can take your original HDMI audio signal and convert it to digital optical or analog 5.1 sound track output. This product supports Dolby digital AC-3, DTS, LPCM and other digital audio format decoding. It is one perfect audio decoder for your DVD, Blue-Ray DVD, PS3, X360BOX, HD Player, PC etc.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
INTRODUCTION
FEATURES:
l 1X HDMI input and 1X HDMI output,can sync separation HDMI audio signal. Supports 1x SPDIF optical digital audio output, 6 channel RCA analog audio output, and 1x headphone jack output.
l Support HDMI input up to 1080P/60Hz, supports 3D (24/30fs)
l Support CEC and HDCP
l Supports 3 modes of EDID management for audio formats, can switch among built-in EDID (2CH/5.1CH) and external EDID (TV).
l Uses 24 bit/96KHz audio DSP and 24bit /192KHz DAC
l Support digital audio formats: Dolby digital (AC3), DTS, LPCM, automatic identification signal format
l Headphone amplifier output, can drive the general 3.5mm earphone
l High tone quality, low noise
l DC5V/1A power adapter
PACKAGE CONTENTS:
1. Main unit 1pcs
2. AC power adapter 1pcs
3. User manual 1pcs
SPECIFICATIONS: HDCN0016M1
HDMI resolution …………………………........................................ up to 1080P/50/60fs(3D 24/30fs)
Support video color format …………………………..…..…………………….24bit/deep color 30bit,36bit
HDMI Audio Format………………..DTS-HD/Dolby-TrueHD/LPCM 2/5.1/7.1CH/DTS/Dolby-AC3/DSD
Digital audio decode format…………………………………………Dolby Digital (AC3)/DTS/LPCM 2CH
HDMI Max bandwidth………………………………………………………….……………………...225MHz
HDMI Max baud rate…………………….………………….………………….……………………6.75Gbps
Input/Output TMDS signal ………….……………………………….……………….0.5~1.5Volts p-p(TTL)
Input/Output DDC signal ……………………………………………..……………………. 5Volts p-p (TTL)
DSP sample frequency range………………………………………………………………….. 32~96 KHz
DSP Bit rate range………………………………………………………………………………….16~24 Bit
Analog output level(1kHz@0dB)...............................................................................................1V RMS
SNR @ 0dB(CCIR/ARM)………………………………………………………………………………≥85dB
Distortion………………………………………………………………………………………………...≤0.1%
Frequency response…………………………………………………………………………….20Hz~20KHz
Headphone output power (1kHz@0dB RL=32)……………………………………………………...20mW
HDMI input cable distance…………………………………………≤15m AWG26 HDMI standard cable
HDMI output cable distance………………………………………..≤18m AWG26 HDMI standard cable
Max working current …………………………………………………………….……….…….….…..500mA
Power adapter format Input ……......….….…….…….…….…. AC 100V~240V 50HZ/60Hz, DC5V/1A
Operating Temperature range ……..…………….……………………………………………. -10 to +55°C
Storage Temperature range……………………………………………………………………. -20 to +60°C
Operating Humidity range ………………………….….……….……….10 to 90%RH (No Condensation)
Storage Humidity range………………………….….……….……………5 to 95%RH (No Condensation)
Case Dimension (L x W x H) ………………………………….…………………………. 139x64x22 (mm)
Weight …….…………………………….………………………………………….……………………. 220g
