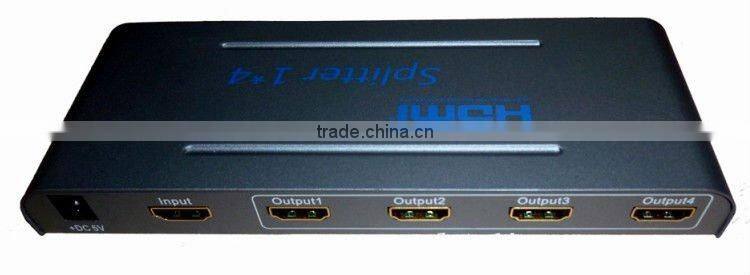

4 Way Video Splitter 1.4

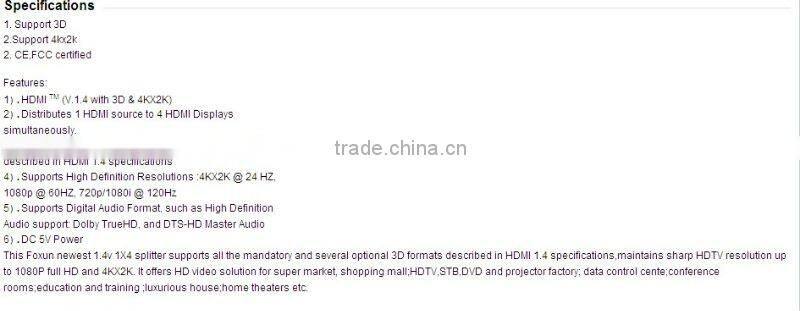

Specifications

 4 way video splitter 1.4

 FEATURES

l One HDMI input signal split to four HDMI sink devices

l Support  Full HD, Full 3D

l Support 4Kx2K resolution

l Support CEC

l Support 4X2

l Support deep color 30bit, 36bit, 48bit

l Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC

l Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-

 Operating and Connecting

1. Connect one cable from HDMI source devices into HDMI Splitter input.
2. Connect one cable from each display (monitor or projector) into the HDMI Splitter outputs.
3. Connect 5V power supply to the HDMI 1x4 Splitter

SPECIFICATIONS:                                HDSP0111

HDMI resolution ……………………………....24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support video color format ……………………...……..….……..24bit/deep color 30bit,36bit, 48bit

Support audio format……..….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)

Max bandwidth……………………………………………………….………………………….340MHz

Max baud rate…………………….………………….………………………………………..10.2Gbps

Input/Output TMDS signal ………….…………………………..………... …..0.5~1.5Volts p-p(TTL)

Input/Output DDC signal ……………………………………………..……...……… 5Volts p-p (TTL)

Input cable distance..…... ……………………….…………………...………….≤15m HDMI AW

Our hdmi splitter 4KX2K 1X4 :
