8 number conductors and ftp cat5

FEATURES

TIA/EIA-568B.2-1;ISO/IEO 11801;NEC/CEC
Fire protection – IEC60332-1 (CM)
Application: Horizontal communication cable; for indoor installation

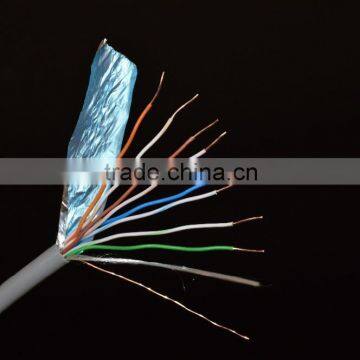

CONSTRUCTION

Conductor: Bare Solid Copper
Conductor Dia.:0.51mm±0.005mm (24AWG)
Pair Insulation:Polyethylene
Shielding:Aluminum-Polyester Foil;110% Coverage
Outer Cable Diameter:6.0 ± 0.2 mm

Pair Identification: Pair1= Blue/White Pair2= Orange/White
Pair 3= Green/White Pair4= Brown/White
Outer Jacket: PVC
Jacket Color:Grey RAL 9002 or as per request

TECHNICAL CHARACTERISTICS

Installation Temperature: 0°C to +60°C
Operating temperature: -20°C to +75°C
DC Resistance Unbalance :5%
Pair-to-Ground Capacitance Unbalance :330 pF/100 m
Capacitance:14pF/ft nominal

Pulling strength: 130 N
Minimum bend radius: 4 outer cable diameters
Dielectric Breakdown:1000 Volts DC Conductor to Conductor
Velocity of Propagation:PE=65%
Maximum Skew:45ns@100 meters

8 number conductors and ftp cat5

PACKAGING

305m/1000ft Easy pulling box; 500m/wooden reel;1000m/wooden reel

8 number conductors and ftp cat5

ELECTRICAL CHARACTERISTICS

Frequency, MHz

RL

Attenuation, dB

NEXT, dB

PSNEXT, dB

ELFEXT, dB

PSELFEXT, dB

0.772

-

1.8

67

64

-

-

1

20

2

65.3

62.3

63.8

60.8

4

23

4

56.3

53.3

51.7

48.7

8

24.5

5.8

51.8

48.8

45.7

42.7

10

25

6.5

50.3

47.3

43.8

40.8

16

25

8.2

47.3

44.3

39.7

36.7

20

25

9.3

45.8

42.8

37.7

34.7

25

24.3

10.4

44.3

41.3

35.8

32.8

31.25

23.6

11.7

42.9

39.9

33.9

30.9

62.5

21.5

17

38.4

35.4

27.8

24.8

100

20.1

22

35.3

32.3

23.8

20.8
