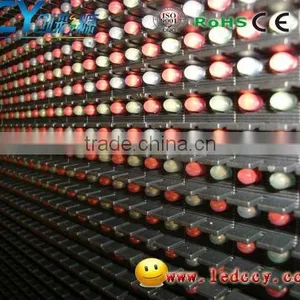

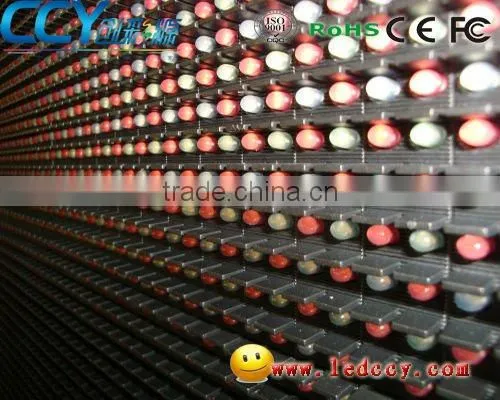

outdoor 4 lamps led display screen

FOB Price

USD $500 - $1,500 / Square Meter

1 Square Meter(Min.Order)

Supply Ability 50 Square Meter / Square Meters per Month
Port shenzhen
Payment Terms:T/T L/C Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Guangdong, China	Brand Name:	CCY	Model Number:	P25
Usage:	Outdoor	Tube Chip Color:	Red	Display Function:	Video
Pixels:	25mm

Packaging Details

packing in pfofessional air case or wooden case

Product Description

Specifications

outdoor 4 lamps led display screen
1.high quality
2.IP65 rear54
3.gold after-service
4.CE ROHS CCC FC

outdoor 4 lamps led display screen

products function introduction:

1) High intensity and can be adjusted, so can meet the request of the customers according the application environment.

Products Advantages:

1) Price Advantage: we have the best competitive price at the market, also have the same even better quality.
2) Performance Advantage: Best Equality, high consistency, Big viewing angle, can repair each led lamps

outdoor 4 lamps led display screen parameters

Product No.	P10	P12	P16	P20	P25
Physical pixel pitch	10mm	12mm	16mm	20mm	25mm
Virtual pixel pitch	5mm	6mm	8mm	10mm	12.5mm
Physical pixels per sqm	10000	6944	3906	2500	1600
Virtual pixels per sqm	10000*4	6944*4	3906*4	2500*4	1600*4
Pixel constitution	1R1PG1PB	2R1PG1PB	2R1PG1PB	2R1PG1PB	2R1PG1PB
Cabinet size	640 * 480mm	768 * 576mm	1024 * 768mm	1280 * 960mm	1000 * 800mm
Cabinet weight	25kg	35kg	55kg	70kg	50kg
Cabinet resolution	64 * 48pixels	64 * 48pixels	64 * 48pixels	64 * 48pixels	40 * 32pixels
Best viewing distance	10-150m	12-200	16-250	20-300	25-320
Max. power consumption	900W	650W	900W	670W	430W
Ave.power consumption	225W	160W	225W	160W	110W
Brightness	≥6000CD/m²	≥6000CD/m²	≥6800CD/m²	≥6500CD/m²	≥5500CD/m²
Driving method	1/2scan constant current driving		Static constant current
Best viewing angle	Horizontal: ≥140°; Vertical: ≥120°
Frame frequency	≥60Hz/s
Refresh rate	adjustable from 10Hz to 3000Hz
color	281 trillions
Input voltage	AC 110 or AC220 V ±10% ,50 to 60Hz
MTBF	10,000 hours
Life-span	100,000 hours
Ingress protection	Front IP65
Working environment	Temperature: -20°c-50°c; Humidity: 10%-90%RH

all screen aging must be 72 hours

plz contact with Apollo:0086 15875527577
