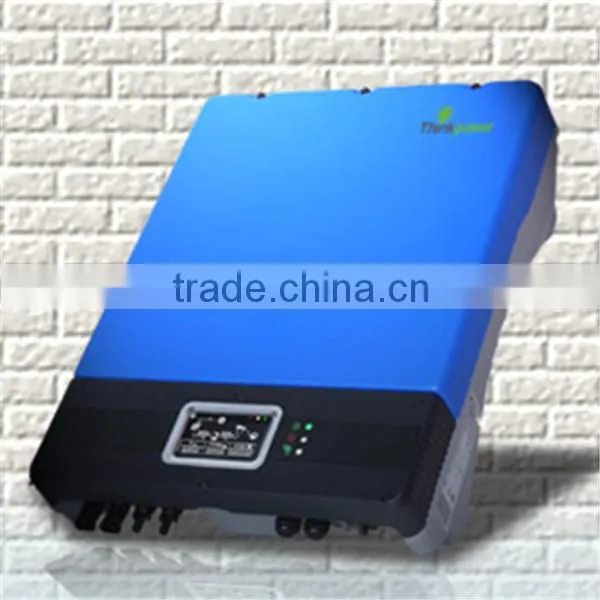

Grid tie inverter 1000Watt Output for grid connected PV system
Negotiable
/ Unit
3 Units(Min.Order)
- 2350 Unit / Units per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
2.2KW,50/60HZ, grid connected pv inverter for EU, Thailand, Philippines
-
3kW single phase 220v solar grid connected pv inverter for EU, Thailand, Philippines
-
3000W(3.3kW) Thinkpower G83/G59 solar hybird inverter
-
3000W(3.3kW) Thinkpower EN50438 solar grid tied inverter for netherlands
-
Thinkpower 1.5kw 230V 50/60Hz grid tied pv solar inverter single phase with web monitor Wi-Fi germany
-
Power Inverter 3000Watt from Chinese Manufacturer Thinkpower GOOD QUALITY WITH GOOD PRICE
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Thinkpower | |
| Model Number | T1500TL | Output Power | 1 - 200KW | |
| Output Type | Single | Size | 375*480*136mm | |
| Weight | 17kg | Input Voltage | 450V | |
| Output Voltage | 220V 230V | Type | DC/AC Inverters | |
| Output Frequency | 50Hz 60Hz auto-selection | Output Current | 8A |
Product Description
Specifications
Grid tie inverter 1000Watt Output for grid connected PV system, 230 Volt220Volt,50Hz, 60 Hz,.On Grid inverter 230 Volt 60 Hz 1000Watt Output for grid connected PV system
| Model No | T1500TL |
| DC side/Input parameters | |
| Max. DC power [W] | 1800 |
| Max. DC voltage [Vdc] | 450 |
| Min. System start/Shut down voltage [Vdc] | 150/100 |
| MPPT voltage range[Vdc] | 100~450 |
| Max. input current [A] | 10 |
| Number of MPP trackers | 1 |
| AC side/output parameters | |
| Nominal output power [W] | 1500 |
| Maximum output power [W] | 1650 |
| Nominal output voltage/range [V] | 208,220,230,240/180~265 |
| AC grid frequency/range [Hz] | 50,60/±4.5 auto-selection |
| Maximum output current [A] | 8 |
| AC connection(with PE) | Single phase |
| Current distortion(THDi) [%] | 1.5 |
| Power factor [%] | 99.9 |
| Efficiency | |
| Maximum conversion efficiency[%] | 97.3 |
| European efficiency[%] | 97 |
| MPPT efficiency[%] | 99.9 |
| Protection | |
| DC reverse-polarity protection | yes |
| Short circuit protection | yes |
| Ground fault/residential current monitoring | yes |
| Grid monitoring | yes |
| DC/AC side varistors(thermally protected) | yes |
| General Parameters | |
| Dimension(L/W/H)[mm] | 375*480*136 |
| Weight(kg) | 14.5 |
| Embedded DC Switch | Optional |
| Night Mode support | Optional |
| Night power consumption[W] | <0.2 |
| Isolation type | Transformerless |
| Protection degree | IP65 |
| Operation temperature[ºC] | |
| Heat Dissipation | Convection |
| Acoustic noise level[dB] | 25 |
| Altitude[m] | 2000 without power derating |
| Storage temperature[ºC] | -30 ~ 80 |
| Real Time Clock module | yes |
| LCD Display | Graphic and digital segment |
| Communication Interface | Standard WiFi |
| Certificates | CE,VDE4105,VDE0126,G83,G59,SAA,CQC |
| Warranty: 5/10/15years yes/optional/optional/optional * More technical characteristics are avaliable on demand and customized. | |
