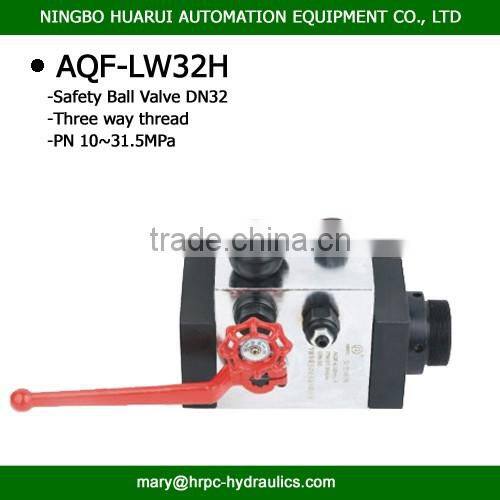

AQF Safaty ball valve for accumulatorhydraulic valve
| Model No.: | AQF-LW32H-A |
| Place of Origin: | Zhejiang,China (Mainland) |
| Power: | Hydraulic |
| Standard or Nonstandard: | Standard |
| Pressure: | High Pressure |
| Structure: | Ball |
| Material: | carbon steel |
| Temperature of Media: | Medium Temperature |
| Media: | Oil |
Model:AQF-LW32H-A
Symbol:

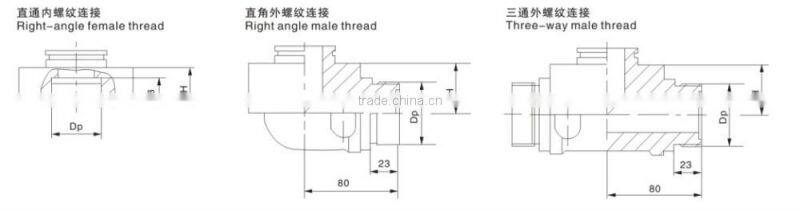

Overall Dimension:
Specific dimension sheet:
| Model | Nominal Flow(L/min) | Connecting dimensions(mm) | Accumulator | Weight(Kg) | ||
| H | DS | Dp | ||||
| AQF-LW32H-A | 160 | 42 | M42X2 M60X2 | M52X2 | 10-100 | 29.5 |
Material sheet:
Specifications:
1. Series Code: KHB3K(BK3) Series Two-Position Three-Way Ball Valve
2. Joint Code: G**, **LR, **SR, PT**, NPT**
3. Valve Body Material: 1-Steel
4. Ball Body Material: 1-Steel, 2-Brass
5. Operating Temperature: 1. -25~+100°C, 2. -30~+170°C
6. Other Airproof: 2-NBR, 4-FPM
7. Handle Type: 02-Aluminium Crooked Handle, 04-Casting Zinc Crooked Handle, 06-Steel Crooked Handle, 09-Without Handle
8. Design Number: To Be Decided By The Manufacturer
9. Surface Disposal: Blank-Phosphoric Polish, G-Electroplated Yellow Zinc

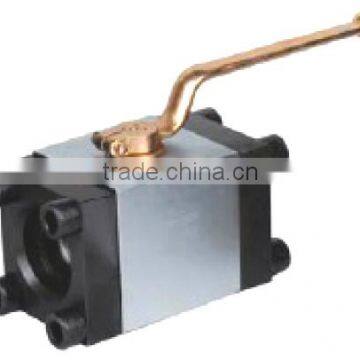

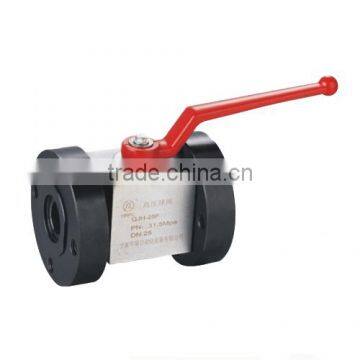

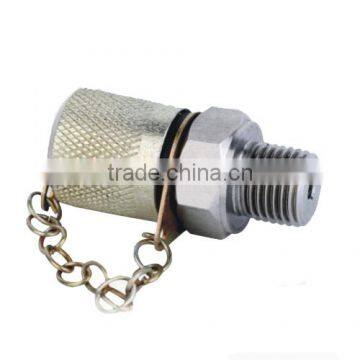

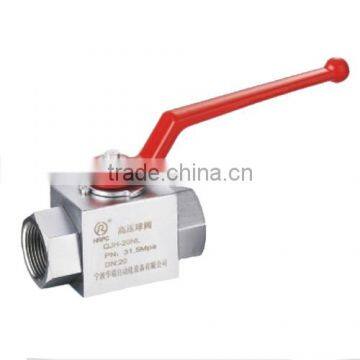

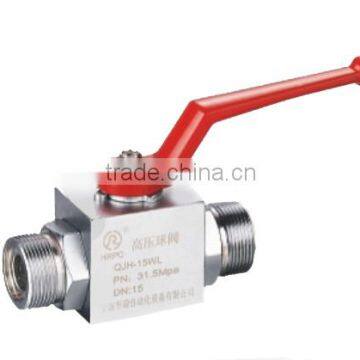

More products for your to choose:
HRPC mainly export to Northern Euroe, include Germany, Italy, Finland, UK, France, Spain, ect
Our products reputed of high quality and quick delivery time.
Strength of HRPC high pressure ball valves
1) 13 yesrs Experience
2) Steady production Capacity
3) Competitive Price
4) High standard quality
5) Strict inspections
6) good after-sale service
