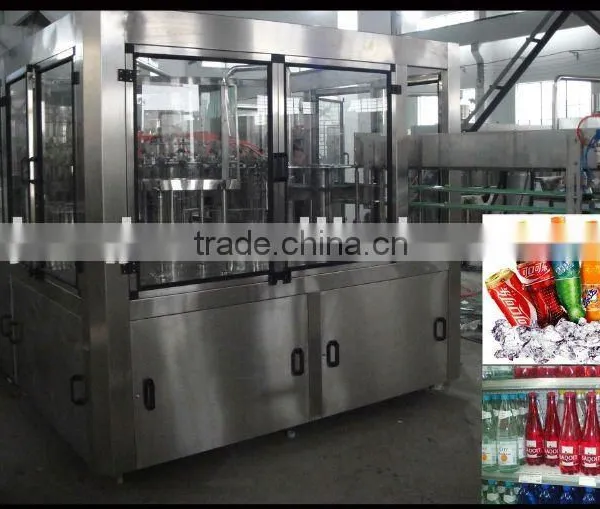

Complete Soft Drink Production Line

Specifications

soft drink production line
its used for glass bottle /pet bottle
capacity:2000-4000BPH
Material:ss304] Motor:Simens

soft drink production line

Filling heads: 18

Capacity :2000~4000BPH (500ml)

External dimension:2200×1800×2500mm

Net weight1: about 2000kg

Filling temperature: 3-5degree

Total power: 4.2KW

Bottle application: glass bottle/pet bottle

Diameter of bottle body: Φ 50mm —Φ 100mm

Height: 150mm -320mm

Maximum of cap: Φ 40mm

Cap application: plastic

Adjustable form: transducer

Power of Cap unscramble: 0.37kw

Pressure of water supplier: >0.06MPa <0.2Mpa

Height of liquid in slot:   1 -2.5m

Air supplier: >0.5MPa

The pressure of compressor in carbonated drinks: 3MPA

 Characteristics:

1)PLC control, English and Man-machine interface, operating easy and simple maintain

2)air delivery in-feeding conveyor and connect with star wheel directly to make bottle size change easily .

3)Neck hanging technology is applied to fit different height bottle and prevent second pollution.

4)Apply insertion type to control fluid level and ensure filling accuracy and preventing spray

5)Frequency inverter controls the whole machine to make working smooth and reliability.

6)Advanced magnetic coupler to regulate cap screwing torque to keep capping accuracy

7)Three in one monoblock structure make machine compact and beautiful appearance, save you workshop floor and labour cost .

PICTURES

Usage:

BGF series beer washing/filling/capping machine:

It is used for washing, filling and sealing various kind of glass bottle with crown type bottle mouth for beer filling production line.

The machine is adopt the advanced international technology, It's design scientific and reasonable, appearance is beautiful, operation and maintenance is convenient, and It's high degree of automatization, so it is the good machine for choosing by the beer filling factory.
