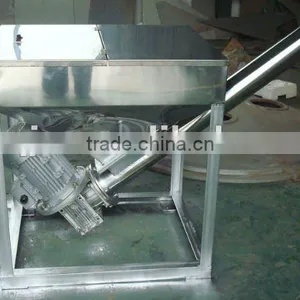

High quality auto screw feeder for powder

FOB Price

USD $800 - $2,000 / Set

1 Set(Min.Order)

Supply Ability 50 Set / Sets per Month
Port shanghai
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Condition:	New	Type:	Screw Conveyor	Material:	Stainless Steel
Material Feature:	Heat Resistant	Structure:	Conveyor System	Load Capacity:	100
Place of Origin:	Jiangsu, China	Brand Name:	CQ	Model Number:	ZD

Product Description

Specifications

1.plastic feeder is a necessary auxiliary machine
2.Protect the materials from pollution
3.save time and manpower on security

auto screw feeder for powder

1. Working Principle

ZD series screw-driver feeder adopts one screw for feeding. Once the Power switch is opened, the screw begins to rotate and feed, so that material can be lifted up to the material outlet. The machine will stop working automatically when the level-sensing the device indicates that material is full, and starts working again after several minutes later when the material level decreases. (The delay time is depended on your choice)

2. Main Technical Parameters

Model NO.	ZD-600	ZD-1000	ZD-2000	ZD-3000
Power (V)	380V 50HZ
Motor Power (kw)	0.75	1.1	1.5	1.5
Diameter of feeding pipe (mm)	89	108	120	140
Feeding height (m)
Feeding capacity (kg/h)	600	1000	2000	3000
Volume of feed box (L)	100	200	250	300
Size of feed box (LWH) (mm)	650650800	100750800	1200800800	1600800800
Weight (kg)	80	150	200	300
