Factory price Drink Straw Making Machine
- 20 Set / Sets per Month
- SHANGHAI
- T/T L/C Credit Card PayPal
-
drink straw making machine/flexible straw making machine
-
3 Color Drinking straw extrusion line/drink tube production line
-
trade assurance ball point refill Making Machine/ ball point refill equpment
-
Pex-a RAM Type Pipe Extrusion Production Line Machine/ram extruder
-
PEXA pipe production line/Ram extrusion line/EVOH Oxygen Barrier Multilayer Pipe Production Line
Quality Choice
-
Plastic Multilayer pipe machines/production line
Product Details
| Condition: | New | Application: | Pipe | Plastic Processed: | PE |
| Screw Design: | Single-screw | Automatic Grade: | Automatic | Place of Origin: | Jiangsu, China |
| Brand Name: | BE | Model Number: | SJ | Voltage: | 380V 410v 440V 600V |
| Power(W): | 15kw | Dimension(L*W*H): | 10mx3mx3m | Weight: | 3000kg |
| Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

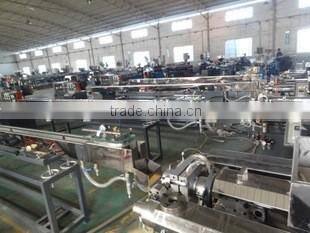

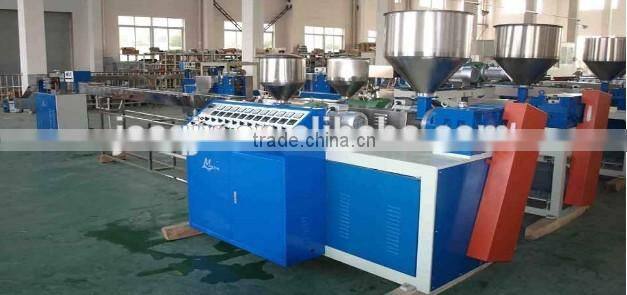

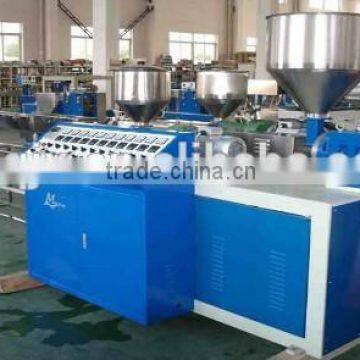

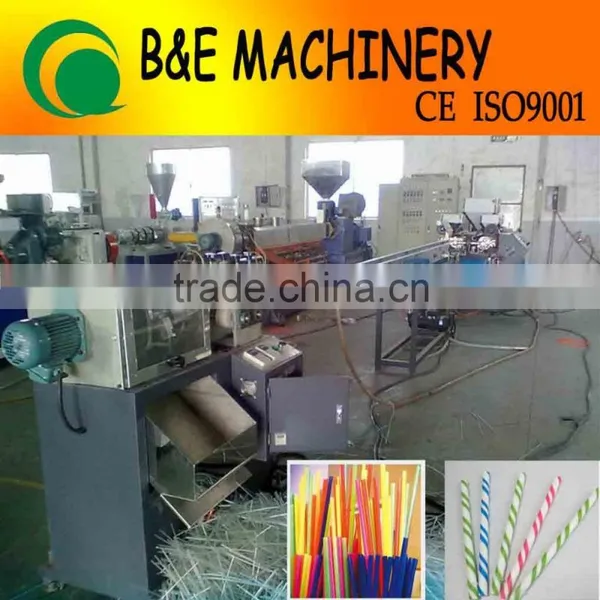

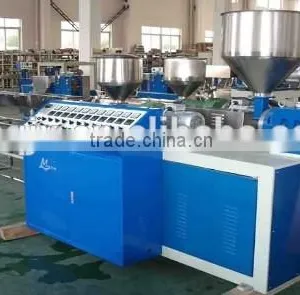

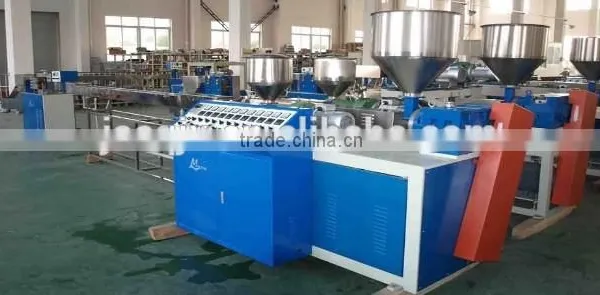

Model BE-3 is a tube extrusion line, composed of extruder and die, size setting and water cooling unit, haul-off unit, rotary cutter unit, The series machines can produce all kinds of drinking straw,spiral strip straw,from one color three color , medical pipe, all the machine’s controls base with the control elements ergonomically adapted to permit easy operation.
The extrusion die can be special designed and easy exchanged to produce pipe and shaping stuff,
Water bath in stainless steel can be adjusted in three planes
The haul-off unit can be belt or rollers, it is customizable, Fitted with double rotary cutter. Cut angle: 90°/45°, 90°/60°
4,Conveyor device(you may select if you want)
Model | BE-3 | |
Feature | Material | PP PE |

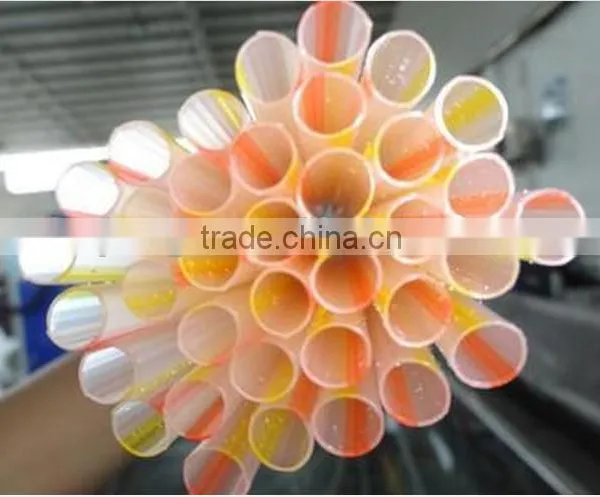

Color | 3color/1-2color | |

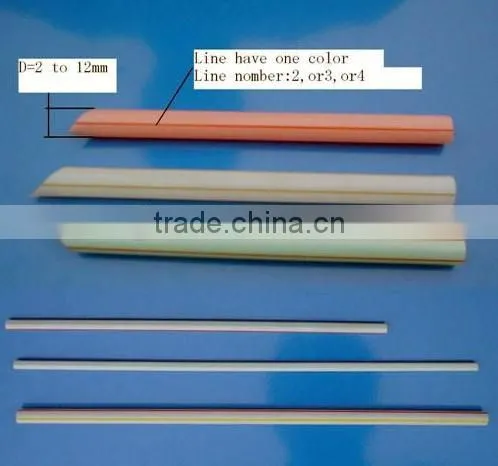

Straw diameter | φ3.0 - φ12 mm | |
thickness | 0.10 - 0.35 mm | |
Straw length | 80 - 300 mm | |

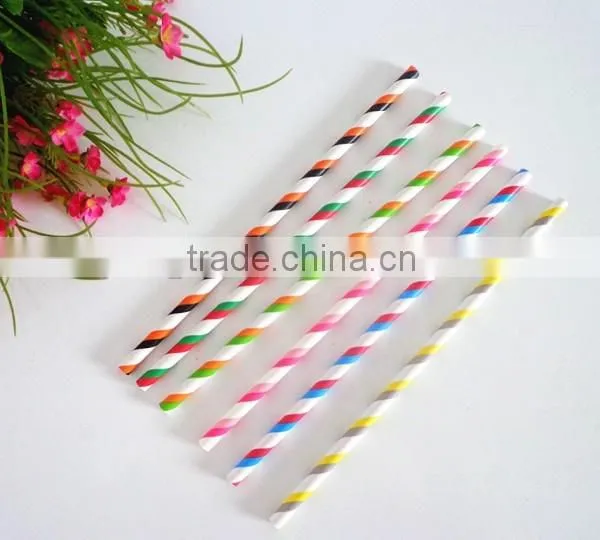

Stripes | Straight / Helical | |
Capability | 400 - 1800 pcs/min | |
Extruding output range | 20 - 40 kgs/hr | |
Extruder | Main Screw diameter | Dia50 mm ( BM Screw) |
Screw L/D | 28 /1 | |
Main driving motor | 11 Kw (VFD) | |
Vice screw diameter | Dia25 mm×2 | |
Vice driving motor | 0.75Kw ×2(VFD) | |
Gearbox | ZLY133 | |
Automatic thermo-controller | 11 sets | |
Heating power | 14.75 kw | |
Water cooling tank | Forming device | 1 set |
Vacuum Pump motor | 1.1 kw(choose) | |
Water storage tank | (length)3400 mm /304 Steel stainless | |
Base frame material | (304 Steel stainless) | |
Blow dry device | 1 set | |
Two roller type tractors and cutting machine | Take up unit | 1 set |
motor | 0.75kWx1(VFD) | |
Cutting knife unit | 1 set | |
motor | 0.75kWx1(VFD) | |
angle of port | 90°/60°/45° | |
Digital counter | 1 set | |
