Home > Products > Plastic Pipe Extrusion Line > PVC Pipe Making Machinery
PVC Pipe Making Machinery
Negotiable
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- SHANGHAI
- D/P D/A Credit Card PayPal
You May Like
Product Details
Condition: | New | Application: | Pipe | Plastic Processed: | PE |
Screw Design: | Double-screw | Automatic Grade: | AUTOMATIC | Place of Origin: | Jiangsu, China |
Brand Name: | BE | Model Number: | SJS | Voltage: | 380V |
Power(W): | 18.5--110KW | Dimension(L*W*H): | 2*3*5M | Weight: | 3200KG-7500KG |
Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
CE certifacation; ISO 90012. Excellent plasticity
2. PLC control
3. Special twin screw

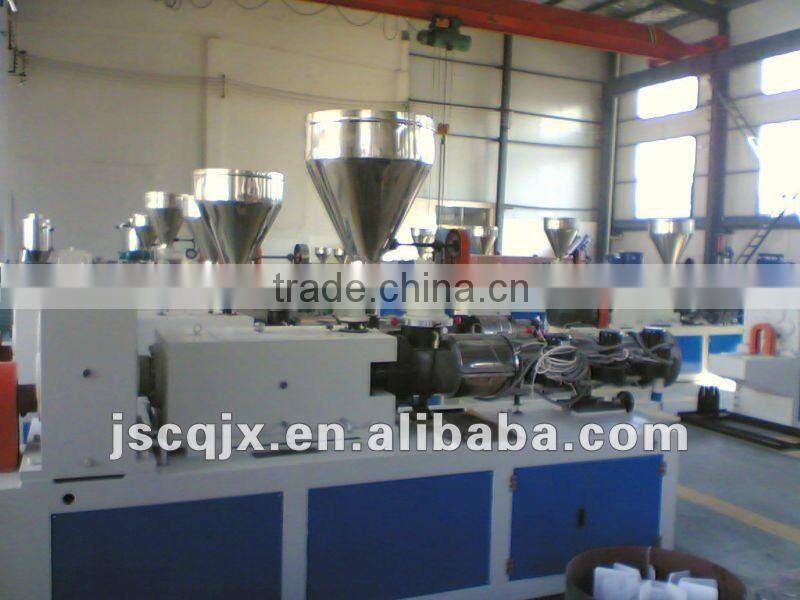

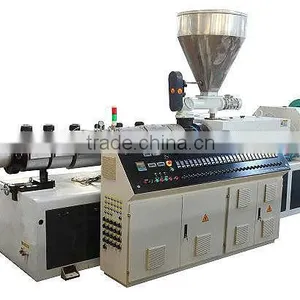

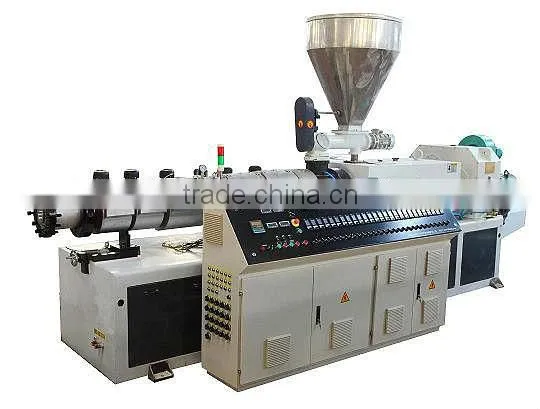

SJSZ series conical twin screw extruder is designed with many excellent features,such as high output ,low power consumption, less friction ,lower sheating rate and forced extruding. It is equipped with autocontrolled ,temperature,degassing unit ,direct-current speed regulation,SJSZ extruder is suitable for processing PVC dry blend into pipes ,profiles and sheets etc
model | sJSZ51 | SJSZ55 | SJSZ65 | SJSZ80 | SZSJ92 |
screw diameter | 51/105 | 55/110 | 65/132 | 80/165 | 92/188 |
qty of screw | 2 | 2 | 2 | 2 | 2 |
screw speed r/min | 1-38 | 1-38 | 1-36 | 1-35 | 1-34 |
screw length mm | 1050 | 1150 | 1430 | 1800 | 2520 |
mian motor power kw | 18.5 | 27 | 37 | 55 | 110 |
barrel heating power kw | 18 | 22 | 14 | 36 | 90 |
production capacity kg/h | 110 | 150 | 250 | 450 | 720 |
central height mm | 1000 | 1000 | 1000 | 1000 | 1100 |
NET weight kg | 3200 | 4200 | 5000 | 6500 | 7500 |
