China manual used pad printing machine price
- 20 Set / Sets per Month
- NINGBO / SHANGHAI
- T/T Credit Card PayPal
Product Details
| Condition: | New | Plate Type: | Screen Printer | Place of Origin: | Zhejiang, China |
| Brand Name: | CHANGS | Model Number: | SPY | Usage: | Card Printer, Cloths Printer, Label Printer, Paper Printer |
| Automatic Grade: | Automatic | Voltage: | 220V,50HZ | Gross Power: | 50W |
| Dimensions(L*W*H): | 1025x946x1405mm | Weight: | 290kgs | After-sales Service Provided: | Engineers available to service machinery overseas |

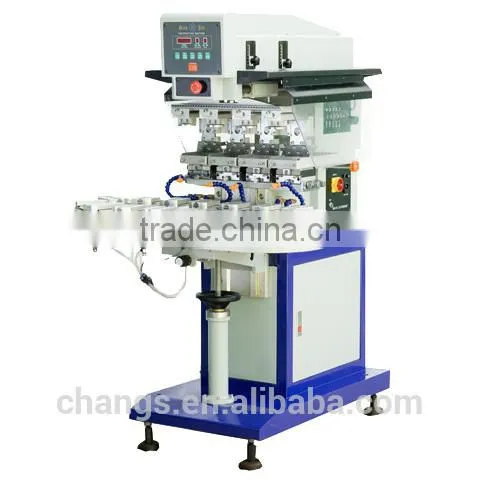

Product Description

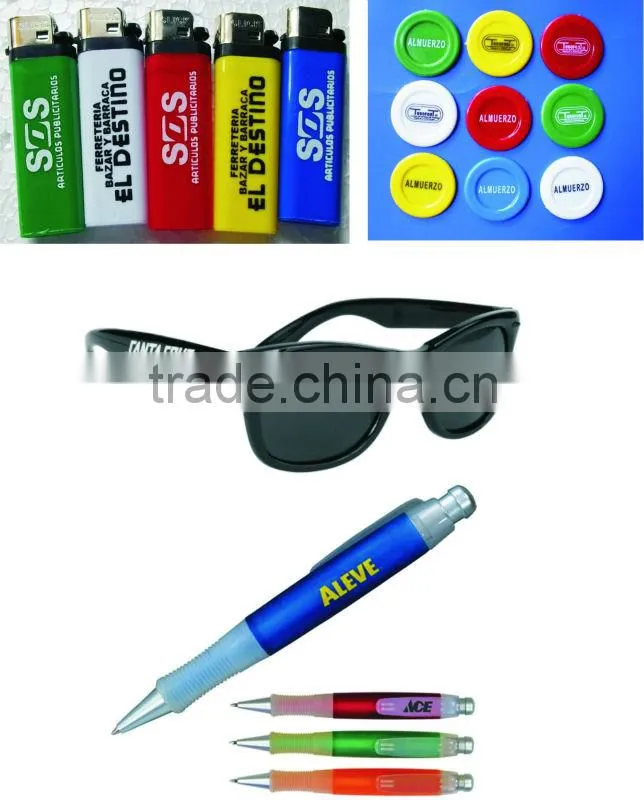

pad printing machine for pens
FEATURES:
1, Gear-driven conveyor table adopted for smoothly running.
2, Microprocessor controls each functions for easy operation & highly automation
3, 5-digit auto counter built in
4, High quality aluminum alloy is used to make structure solid and weight light
5, Pad up/down stroke and speed can be adjusted independently
6, Ink cup is durable and it is easy to install and remove
7, Printing speed is adjustable to meet different requirments
8, Extra function twice inking, once printing is designed for thicker ink film
9, Unique ink-cup plus scraping ring structure ensures perfect printing effect
10, Sealed ink cup holds ink iwthout evapouration, splash, pollution, instead,
50 percents saving. Good working environment created.
11, Auto-blowing air ensures quick curing.
12, Added with protection cover that complying with CE safty standard.
PARAMETERS
Stroke distance | 114.3 mm |
Workstations | 4 |
Plate size | 200x100 mm |
Ink cup size | Φ90 mm |
Max. pad pressure | 1833 N(6bar) |
Max. printing speed | 1000 pcs/hr |
Air consumption | 353 Litre/min(6bar) |
Wattage | 110/220v 60/50Hz 50w |
Dimensions | 1025x946x1405mm |
Weight | 290Kg |
